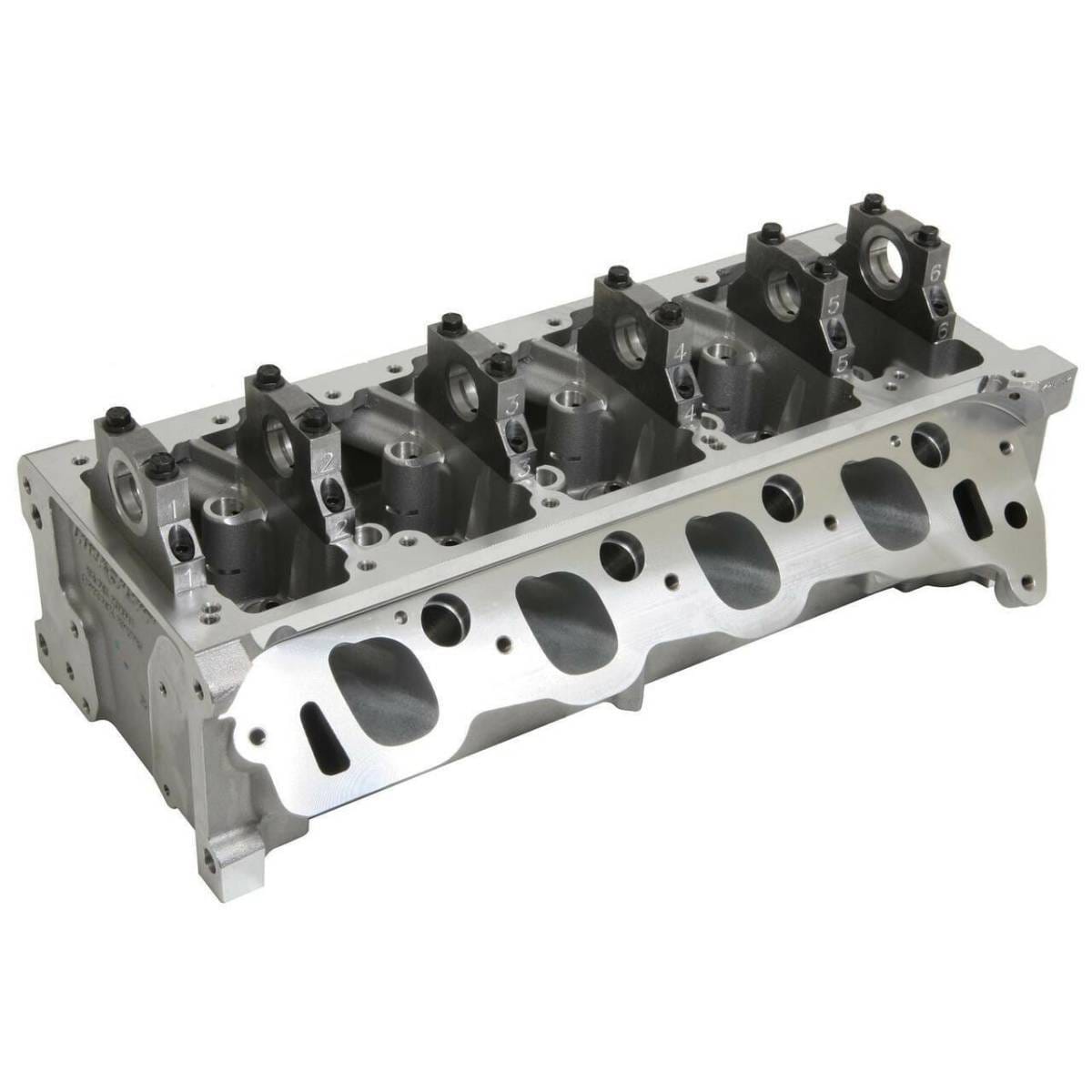

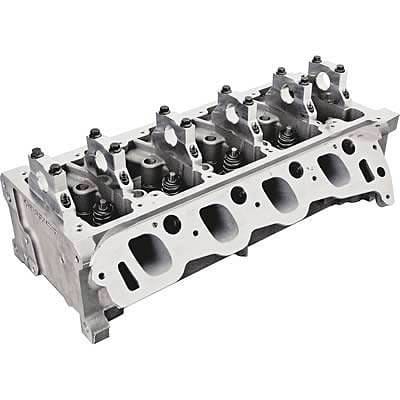

Trickflow Twisted Wedge Track Heat Ford 185cc, 150lb Cylinder Head 44cc 4.6l/5.4l 2v, Max Lift .650

Aluminum heads for Ford bracket racers. Trick Flow® Twisted Wedge® Track Heat® 185 series cylinder heads are the best aftermarket heads for Ford 2V Modular engines with power adders and/or high rpm applications. The heads feature CNC-profiled Twisted Wedge combustion chambers and intake valves moved to the opposite side of the cam. These features provide dramatic increases in mid-lift airflow, piston-to-valve clearance, and valve-to-bore clearance for using higher lift cams and larger valves without altering bore size or flycutting pistons. Other exclusive features include Fast As Cast® runners that deliver near-CNC-ported airflow, OE PI-style intake inlets, patented replaceable cam bearing journals (no more junking heads because of trashed cams!), 3/4" thick decks, and 3/4"-reach spark plugs. Trick Flow Twisted Wedge Track Heat 185 heads fit all 2V Romeo and Windsor engines and accept all OE-style camshafts, followers, lash adjusters, valve covers, and most OE Ford front covers. The heads are available fully assembled or as bare castings. Price listed is per head, if you need a pair, order 2 of this item.
Brand: Trick Flow Specialties Manufacturer's Part Number: TFS-51910006-M44 Part Type: Cylinder Heads Product Line: Trick Flow® Twisted Wedge® Track Heat® 185 Cylinder Heads for Ford 4.6L/5.4L 2V UPC: 842645114526 Cylinder Head Style: Assembled Cylinder Head Material: Aluminum Cylinder Head Finish: Natural Combustion Chamber Volume (cc): 44 CNC-Machined Combustion Chamber: Yes Intake Runner Volume (cc): 185cc Exhaust Runner Volume (cc): 93cc CNC-Machined Intake Runner: No CNC-Machined Exhaust Runner: No Combustion Chamber Style: Twisted Wedge® Intake Port Location: Standard Exhaust Port Shape: D-port Exhaust Port Location: Standard Spark Plug Style: Angle Intake Valves Included: Yes Intake Valve Diameter (in): 1.840 in. Exhaust Valves Included: Yes Exhaust Valve Diameter (in): 1.450 in. Valve Springs Included: Yes Maximum Valve Lift (in): 0.650 in. Outside Diameter of Outer Spring (in): 1.100 in. Damper Spring Included: Yes Number of Springs Per Valve: Dual Retainers Included: Yes Retainer Material: Chromoly steel Locks Included: Yes Lock Style: 7 degree Valve Stem Seals Included: Yes Valve Stem Seal Style: Positive stop Rocker Arm Studs Included: No Rocker Arms Included: No Rocker Arm Nuts Included: No Guideplates Included: No Valve Cover Mounting Style: Perimeter bolt Accessory Bolt Holes Drilled: Yes Intake Valve Angle: 9 Exhaust Valve Angle: 9 Valve Guides Included: Yes Valve Guide Material: Powdered metal Valve Seats Machined: Yes Valve Seat Machine Style: 3-angle Valve Seat Material: Ductile iron Steam Holes Drilled: No Oiling Style: Through head Machined for O-Ring: No Heat Crossover: No Quantity: Sold individually. Notes: Accepts all Romeo and Windsor valve covers, plus most stock-style Ford front covers. Dual spring, 150 lbs. at 1.500 in. installed height. Will not work on high mount power steering applications (bolts to cylinder head). The power steering pump must bolt to the block, below the cylinder heads.
