Trickflow Super 23® Cylinder Heads, Sb Chevy, 215cc Intake, 72cc Chambers, 420lb, Chromoly

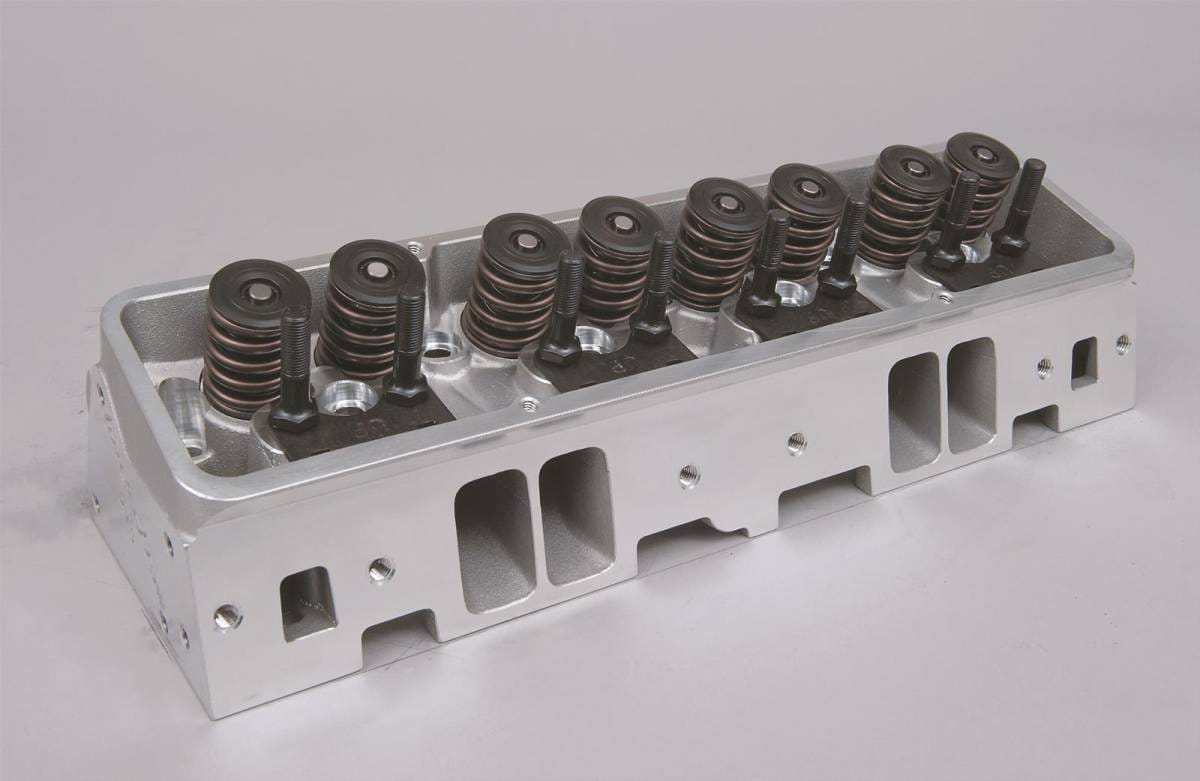

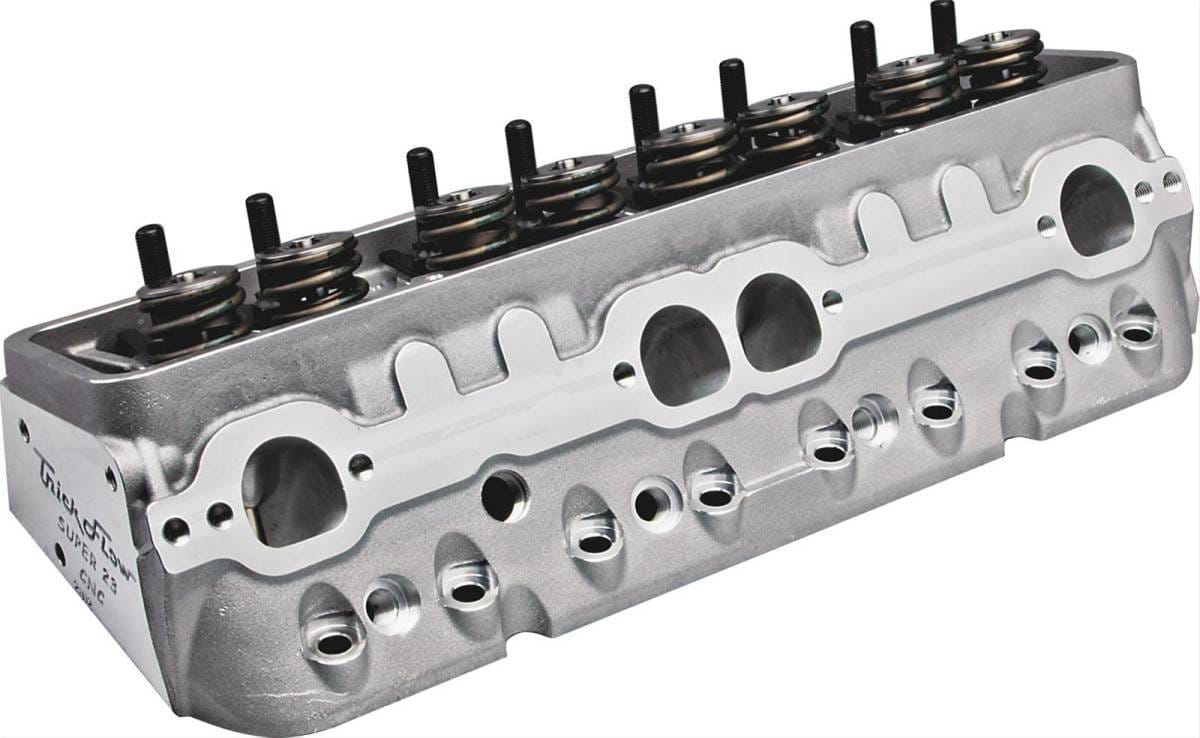

Trick Flow Super 23® 215 cylinder heads will give a huge performance boost to race-prepped small block Chevy engines. Based on the proven Super 23 head design, the Trick Flow Super 23 215 heads feature enlarged valve springs to help pull in more air and fuel with higher lift cams. The larger Fast As Cast® runner design provides near-CNC-ported airflow and power for about the same price as most cast heads. The result is more airflow in the mid and upper rpm range—and that means more power. Other features include angled spark plugs, extra-thick decks and walls for porting, and raised valve cover rails. Trick Flow Super 23 215 heads are available fully assembled or as bare castings. Sold individually.
Manufacturer's Part Number: TFS-32410012 Part Type: Cylinder Heads Product Line: Trick Flow® Super 23® 215 Cylinder Heads for Small Block Chevrolet Cylinder Head Style: Assembled Cylinder Head Material: Aluminum Intake Valve Diameter (in): 2.080 in. Cylinder Head Finish: Natural Combustion Chamber Volume (cc): 72 CNC-Machined Combustion Chamber: No Intake Runner Volume (cc): 215cc Exhaust Runner Volume (cc): 78cc CNC-Machined Intake Runner: No CNC-Machined Exhaust Runner: No Combustion Chamber Style: Heart Intake Port Shape: Rectangular Intake Port Location: Standard Exhaust Port Shape: D-port Exhaust Port Location: Standard Spark Plug Style: Angle Intake Valves Included: Yes Exhaust Valves Included: Yes Exhaust Valve Diameter (in): 1.600 in. Valve Springs Included: Yes Maximum Valve Lift (in): 0.680 in. Outside Diameter of Outer Spring (in): 1.550 in. Damper Spring Included: Yes Number of Springs Per Valve: Dual Retainers Included: Yes Retainer Material: Chromoly steel Locks Included: Yes Lock Style: 10 degree Valve Stem Seals Included: Yes Rocker Arm Studs Included: Yes Rocker Arm Nut Thread Size: 7/16-20 in. Rocker Arms Included: No Rocker Arm Nuts Included: No Guideplates Included: Yes Guideplate Pushrod Size: 5/16 in. Valve Cover Mounting Style: Perimeter bolt Accessory Bolt Holes Drilled: Yes Intake Valve Angle: 23 Exhaust Valve Angle: 23 Valve Guides Included: Yes Valve Guide Material: Bronze Valve Seats Machined: Yes Valve Seat Machine Style: 3-angle Valve Seat Material: Ductile iron Steam Holes Drilled: No Oiling Style: Through pushrod Machined for O-Ring: No Heat Crossover: No Quantity: Sold individually. Notes: Designed for mechanical flat tappet camshafts. Must use head gaskets with 4.155 in. bore diameter.
