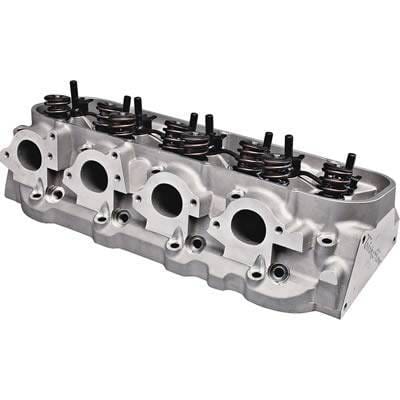

Trickflow Powerport Cylinder Head, Big Block Chevy, 320cc Intake, Chromoly Retainers, Max Lift .700

Serious horsepower for your Big Block Chevy engine, heads sold individually. Perfect for all high performance street/strip, racing, and marine applications, Trick Flow PowerPort® 320 cylinder heads for big block Chevy deliver exceptional power potential and competition level durability. Features include rectangular intake runners for strong mid- to high-rpm performance, heart-shaped combustion chambers, CNC bowl blended valve seat transitions, 24 degree intake valve angles with 4 degree side cants for additional airflow volume, adjustable guideplates, and premium quality, high-strength aluminum castings. The Fast As Cast® runners flow almost as much air as fully CNC-ported heads right out of the box. That means you’ll get almost CNC-ported performance for about the same price as regular cast heads.
Cylinder Head Style: Assembled Cylinder Head Material: Aluminum Cylinder Head Finish: Natural Combustion Chamber Volume (cc): 122 CNC-Machined Combustion Chamber: Yes Intake Runner Volume (cc): 320cc Exhaust Runner Volume (cc): 137cc CNC-Machined Intake Runner: No CNC-Machined Exhaust Runner: No Combustion Chamber Style: Heart Intake Port Shape: Rectangular Intake Port Location: Standard Exhaust Port Shape: D-Port Exhaust Port Location: Raised Spark Plug Style: Angle Intake Valves Included: Yes Intake Valve Diameter (in): 2.300 in. Exhaust Valves Included: Yes Exhaust Valve Diameter (in): 1.880 in. Valve Springs Included: Yes Maximum Valve Lift (in): 0.700 in. Outside Diameter of Outer Spring (in): 1.560 in. Damper Spring Included: Yes Number of Springs Per Valve: Dual Retainers Included: Yes Retainer Material: Chromoly Steel Locks Included: Yes Lock Style: 10 degree Valve Stem Seals Included: Yes Valve Stem Seal Style: Positive stop Rocker Arm Studs Included: Yes Rocker Arms Included: No Rocker Arm Nuts Included: No Rocker Arm Nut Thread Size: 7/16-20 in. Guideplates Included: Yes Guideplate Pushrod Size: 3/8" Valve Cover Mounting Style: Perimeter bolt Accessory Bolt Holes Drilled: Yes Intake Valve Angle: 24/4 Exhaust Valve Angle: 15/4 Valve Guides Included: Yes Valve Guide Material: Bronze Valve Seats Machined: Yes Valve Seat Machine Style: 3-angle Valve Seat Material: Ductile iron Steam Holes Drilled: No Oiling Style: Through pushrod Machined for O-Ring: No Heat Crossover: No Quantity: Sold individually Notes: Designed for mechanical roller camshafts. Exhaust port is raised 0.300 in. over stock.

Instruction Sheets
