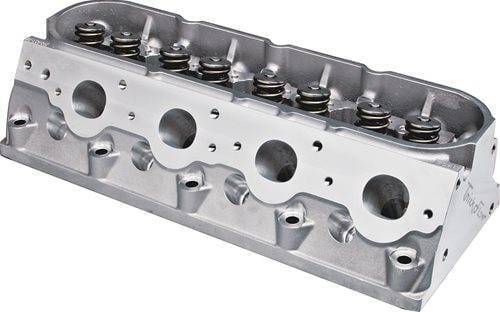

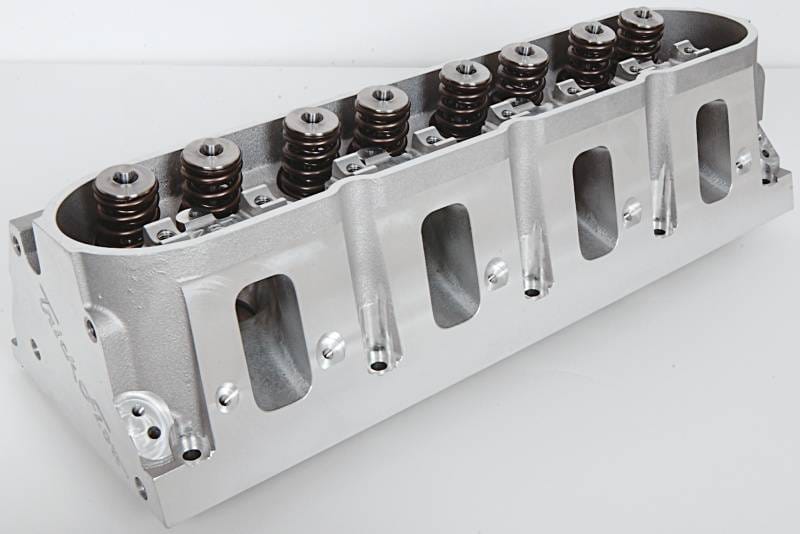

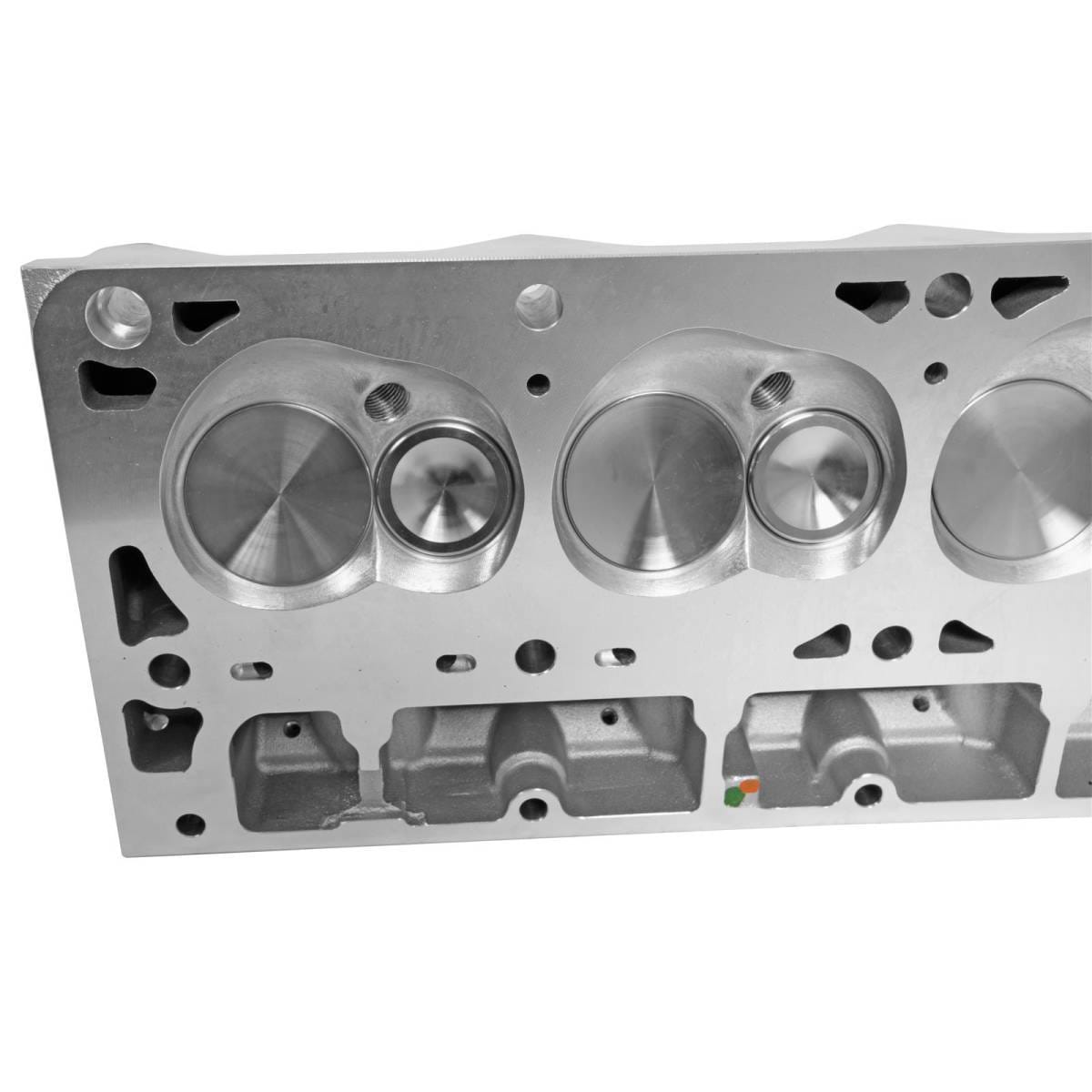

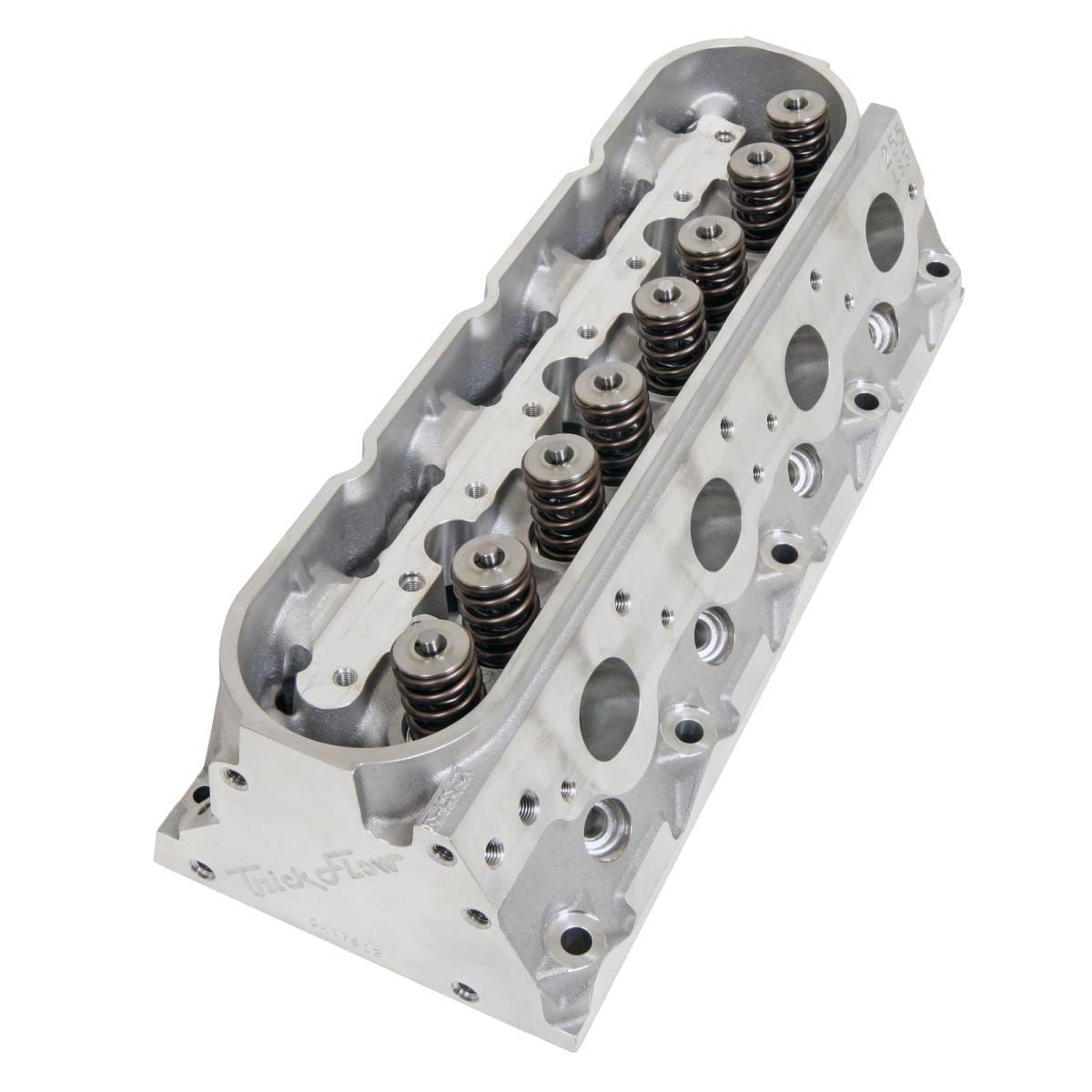

Trickflow Genx Ls3 Bare Head Casting With Seats, 255cc Intake, 6 Bolt

Serious horsepower for your LS3-based engine, heads sold individually. Trick Flow engineers combined the best features of factory GM LS3 and LS7 cylinder heads with Trick Flow’s own unique brand of race-winning engineering and technology to create the ultimate square port LS cylinder head for 4.000" and larger bore engines—the GenX® 255. The heads feature fully CNC Competition Ported runners with a premium high resolution surface finish for maximum airflow and performance potential. The valve angles have been changed from 15° to 12° to increase piston-to-valve clearance and allow the use of larger camshafts. The coolant holes through the head deck were redesigned to work with all LS head gasket and engine block combinations. Stock LS3 ports accommodate LS3-style intake manifolds and LS9/LSA blower assemblies. GenX 255 heads are available with standard and 6-bolt per cylinder mounting patterns. Cylinder heads are available fully assembled or as bare castings.
Manufacturer's Part Number: TFS-3261B003-C01 Part Type: Cylinder Heads Product Line: Trick Flow® GenX® 255 Cylinder Heads for GM LS3 UPC: 842645108990 Cylinder Head Style: Bare Cylinder Head Material: Aluminum Cylinder Head Finish: Natural Combustion Chamber Volume (cc): 69 CNC-Machined Combustion Chamber: Yes Intake Runner Volume (cc): 255cc Exhaust Runner Volume (cc): 87cc CNC-Machined Intake Runner: Yes CNC-Machined Exhaust Runner: Yes Combustion Chamber Style: Heart Intake Port Location: Standard Exhaust Port Shape: Oval Exhaust Port Location: Standard Intake Valves Included: No Intake Valve Diameter (in): 2.165 in. Exhaust Valves Included: No Exhaust Valve Diameter (in): 1.600 in. Valve Springs Included: No Damper Spring Included: No Retainers Included: No Locks Included: No Valve Stem Seals Included: No Rocker Arm Studs Included: No Rocker Arms Included: No Rocker Arm Nuts Included: No Guideplates Included: No Accessory Bolt Holes Drilled: Yes Intake Valve Angle: 12 Exhaust Valve Angle: 12 Valve Guides Included: Yes Valve Guide Material: Powdered metal Valve Seats Machined: Yes Valve Seat Machine Style: 3-angle Valve Seat Material: Ductile iron Steam Holes Drilled: No Oiling Style: Through pushrod Machined for O-Ring: No Heat Crossover: No Quantity: Sold individually. Notes: These cylinder heads are not designed as a stock replacement, they can only be used on 6 bolt LSX-based engines with a minimum bore diameter of 4.000 in. Competition ported. This cylinder head does not include rocker arm rail mounts.

LS3 Overview
