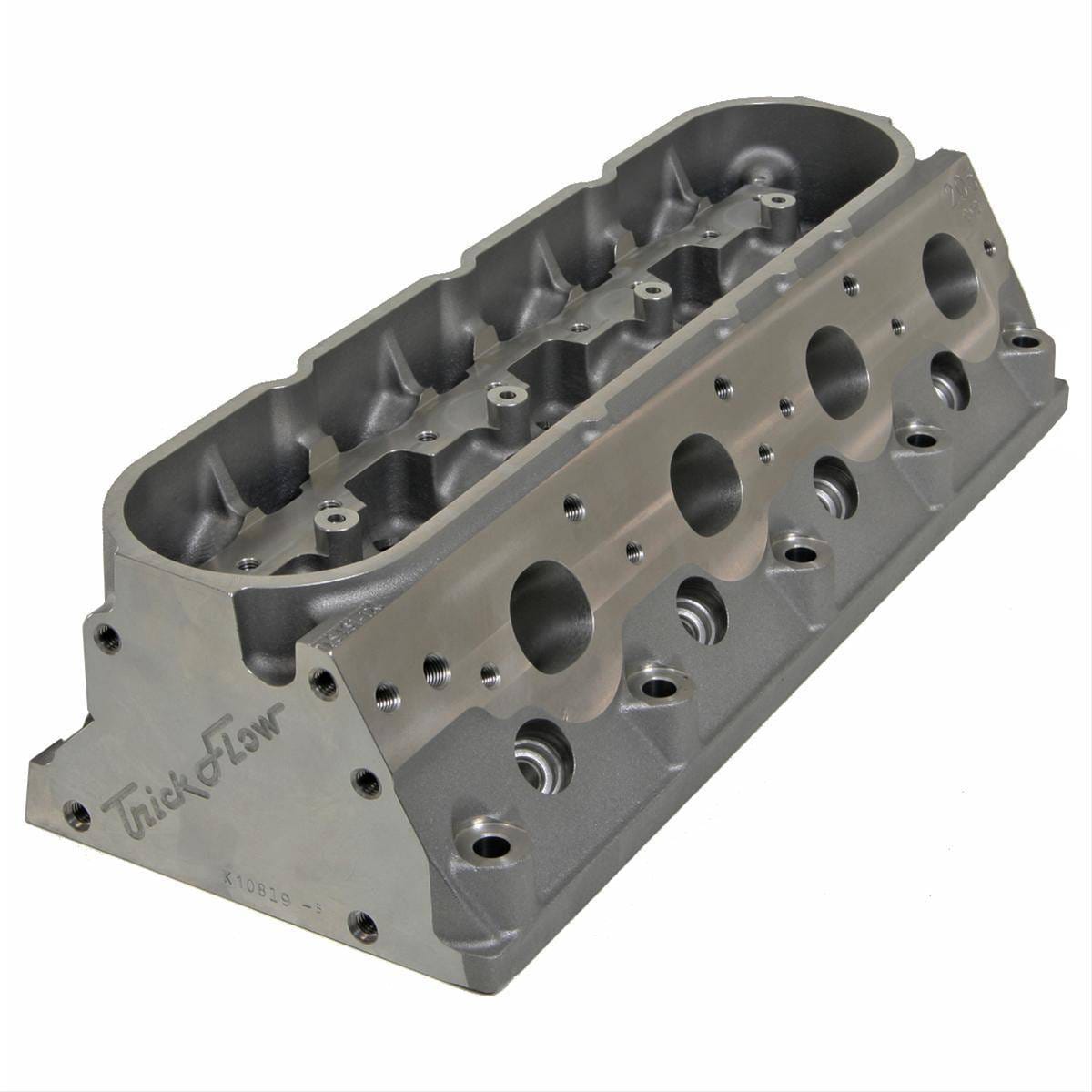

Trickflow Genx Ls2 Bare Head Casting With Seats, 220cc Intake

Serious horsepower for your LS2-based engine, heads sold individually.

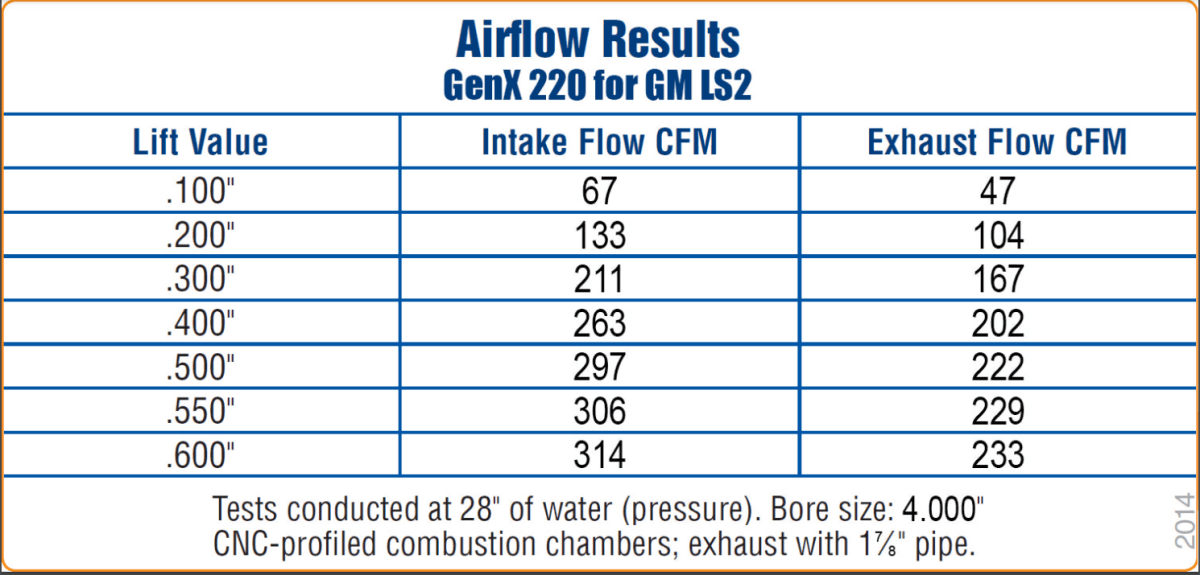

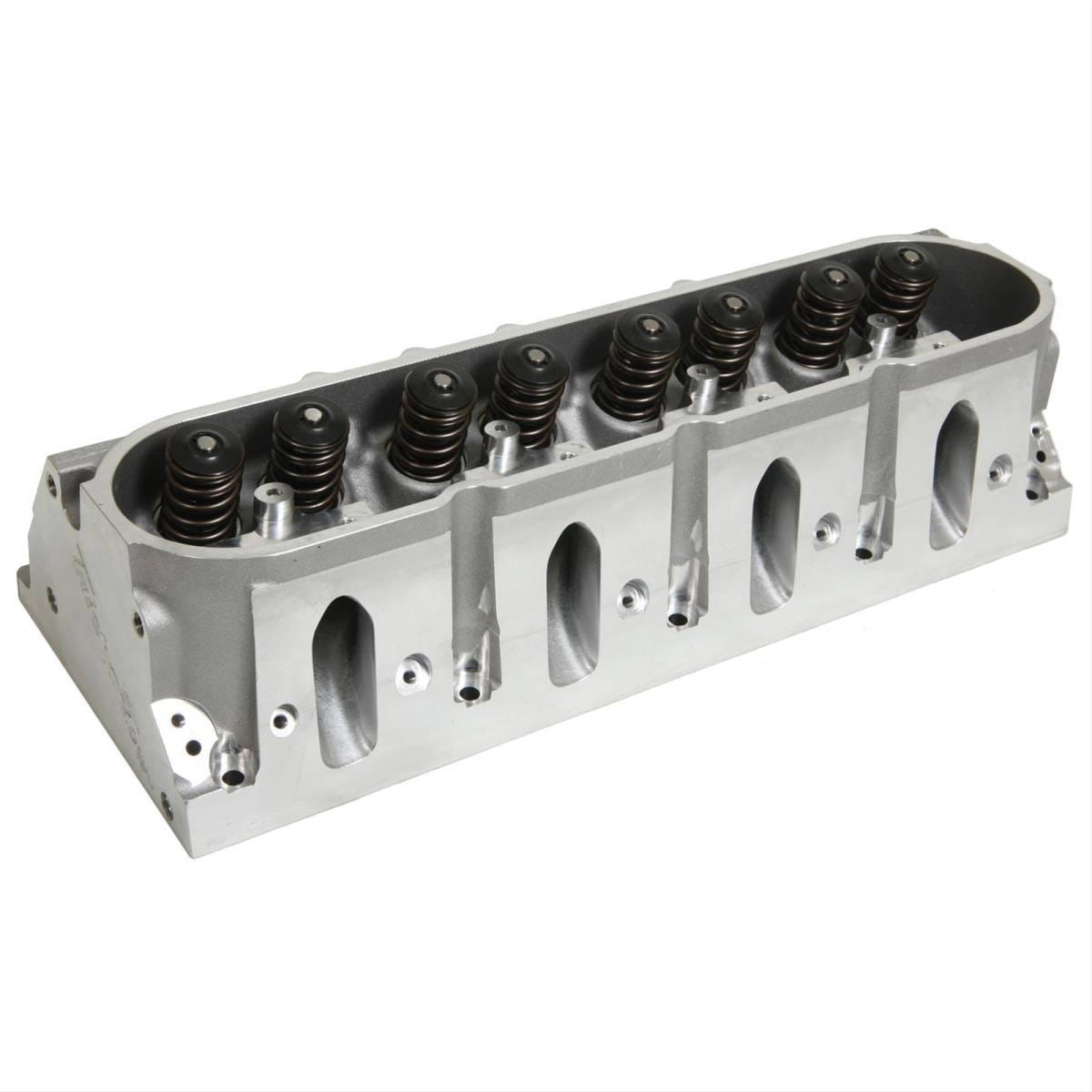

Trick Flow GenX® 220 cylinder heads for GM 5.7L LS2 engines are the best value in GM LS performance. These cathedral port heads incorporate features of Trick Flow’s fully CNC-ported LS heads such as 13.5° valve angles, decreased valve shrouding, increased mid-lift airflow, relocated spark plugs, CNC-profiled combustion chambers (except porter heads) with port-to-valve seat blending (bowl blending), improved rocker arm/ valve cover clearance, and rigid casting design in a more affordable “Fast As Cast” version that flows nearly as much air as Trick Flow’s competition ported heads. The special Fast As Cast® runner design duplicates the port shape and profile of fully CNC-ported runners, resulting in near-CNC-ported performance for the same price as regular cast cylinder heads. Cylinder heads are available fully assembled or as bare castings.
Part Number: TFS-3061B002 Part Type: Cylinder Heads Product Line: Trick Flow® GenX® 220 Cylinder Heads for GM LS2 UPC: 842645107238 Cylinder Head Style: Bare Cylinder Head Material: Aluminum Cylinder Head Finish: Natural Combustion Chamber Volume (cc): 65 CNC-Machined Combustion Chamber: No Intake Runner Volume (cc): 220cc Exhaust Runner Volume (cc): 80cc CNC-Machined Intake Runner: No CNC-Machined Exhaust Runner: No Combustion Chamber Style: Heart Intake Port Shape: Cathedral Intake Port Location: Standard Exhaust Port Shape: Oval Exhaust Port Location: Standard Spark Plug Style: Angle Intake Valves Included: No Intake Valve Diameter (in): 2.055 in. Exhaust Valves Included: No Exhaust Valve Diameter (in): 1.570 in. Valve Springs Included: No Damper Spring Included: No Retainers Included: No Locks Included: No Valve Stem Seals Included: No Rocker Arm Studs Included: No Rocker Arms Included: No Rocker Arm Nuts Included: No Guideplates Included: No Valve Cover Mounting Style: Centerbolt Accessory Bolt Holes Drilled: Yes Intake Valve Angle: 13.50 Exhaust Valve Angle: 13.50 Valve Guides Included: Yes Valve Guide Material: Bronze Valve Seats Machined: Yes Valve Seat Machine Style: 3-angle Valve Seat Material: Ductile iron Steam Holes Drilled: No Machined for O-Ring: No Heat Crossover: No Quantity: Sold individually. Notes: Designed for LS2 engines. Combustion chamber features a CNC bowl blend. Must be used with roller rocker arms.
