Trick Flow Streetburner Intake Manifolds For Ford 5.0l - Black

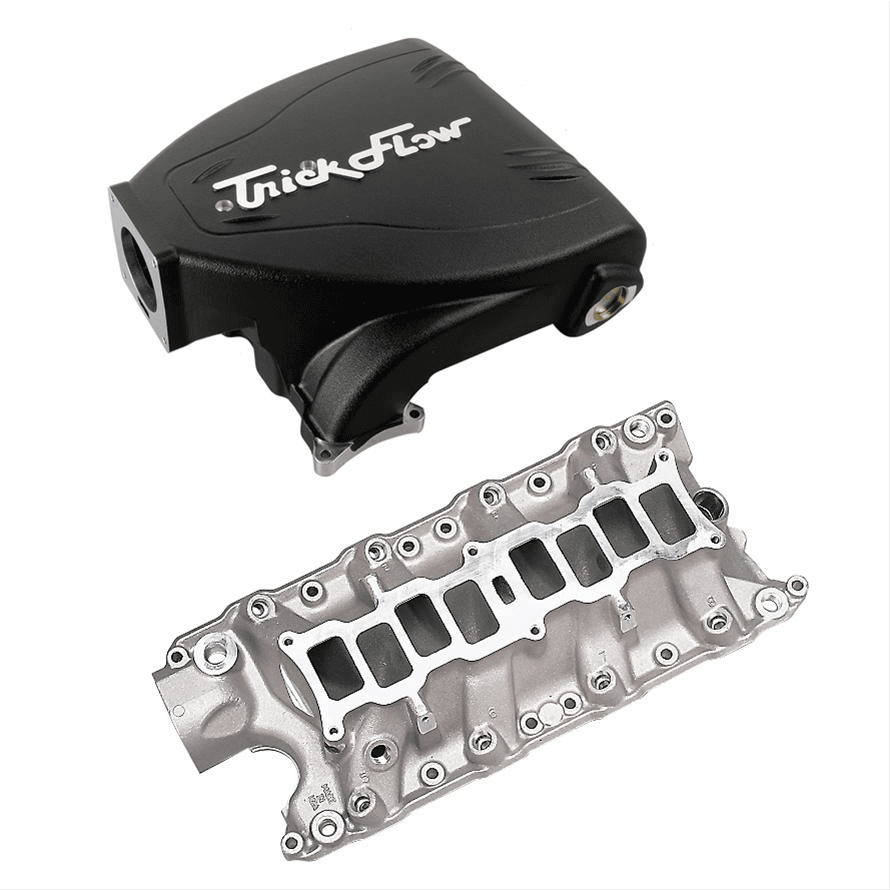

This is a Trick Flow StreetBurner Intake Manifold for Ford 5.0L in Black Finish Trick Flow’s StreetBurner EFI Intake Manifolds are computer-engineered to deliver ideal airflow distribution and velocity to increase low-end torque and provide superior high-rpm horsepower. The manifolds improve airflow velocity and performance from idle to 5,500 RPM. are available in kits with a natural finish aluminum lower manifold and an A319 aluminum upper plenum in black powdercoat finish. Note: This intake manifold is 50 state legal, CARB EO# D-369-3
Part Number: TFS-51511001 Cylinder Head Configuration: Stock Fuel Injection Style: Multi-port Basic Operating RPM Range: Idle-5,500 Intake Section Included: Complete Throttle Body Bore Size: 75mm Engine Block Deck Height: Standard deck Injectors Included: No Multi-Port Fuel Rails Included: No EGR: Yes Aftermarket Fuel Rail Required: No Throttle Body Included: No Supplemental Bosses Cast-In: No Supplemental Bosses Machined: No Runners Included: No Runners Removable: No Plenum Material: Aluminum Plenum Finish: Black powdercoated Base Material: Aluminum Base Color: Natural Quantity: Sold as a kit. CARB EO Number(s): D-369-3 Emissions: California EO Approved

Additional features include:
Small cross-section with 12.200 in. runners
Overall height to the upper manifold flange is 10.200 in.
Overall height to the lower manifold flange is 4.625 in.
2.000 in. x 1.200 in. port size at head
2.000 in. x 1.200 in. port size at mating flange
