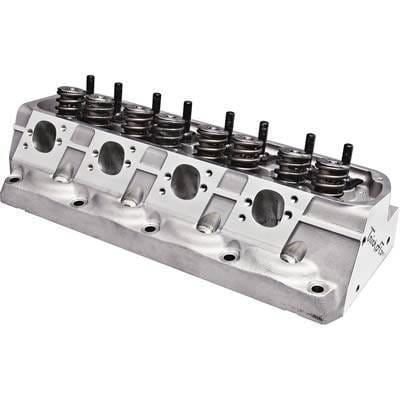

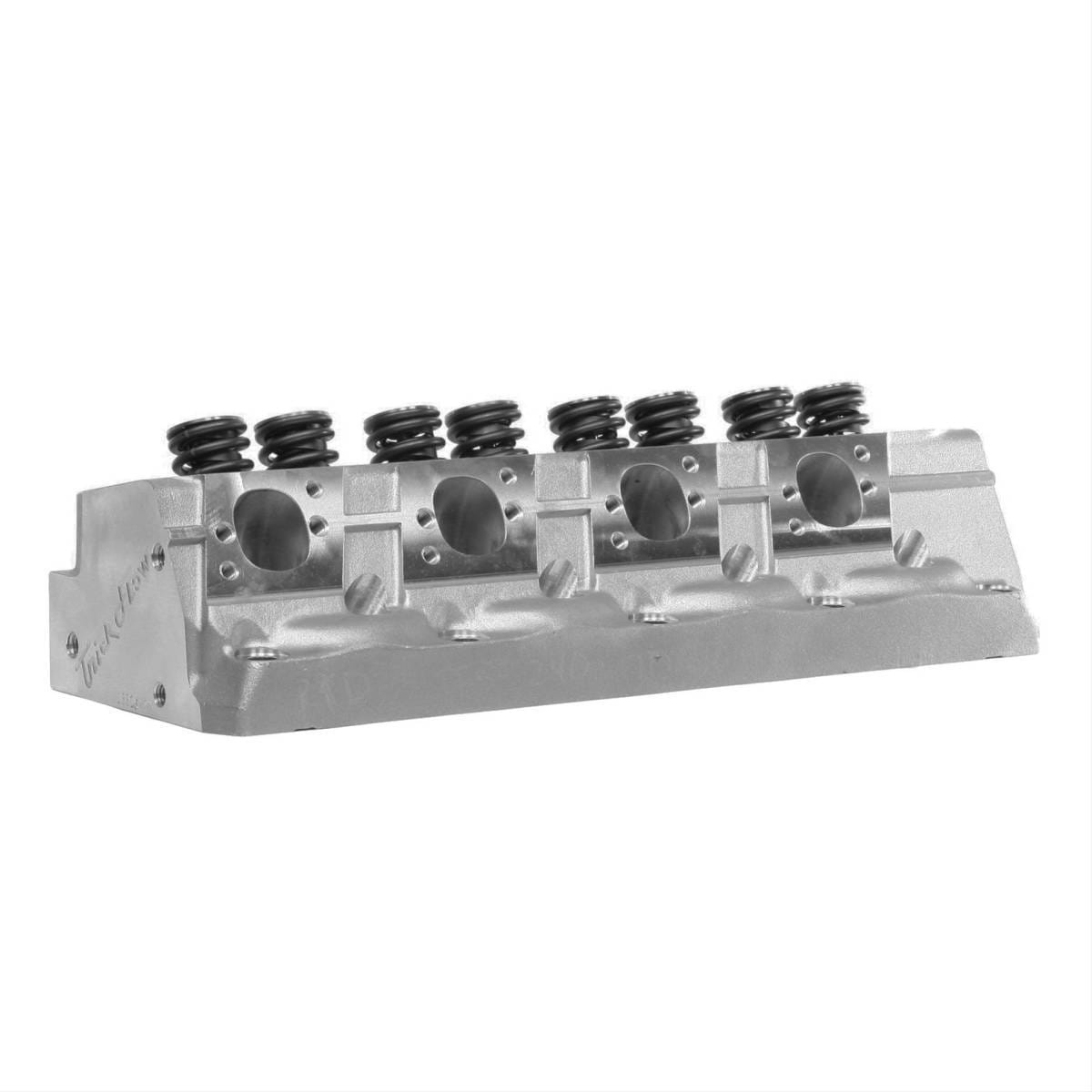

Trick Flow High Port Sbf 240cc Cnc Ported Aluminum Cylinder Head 76cc Titanium Retainers

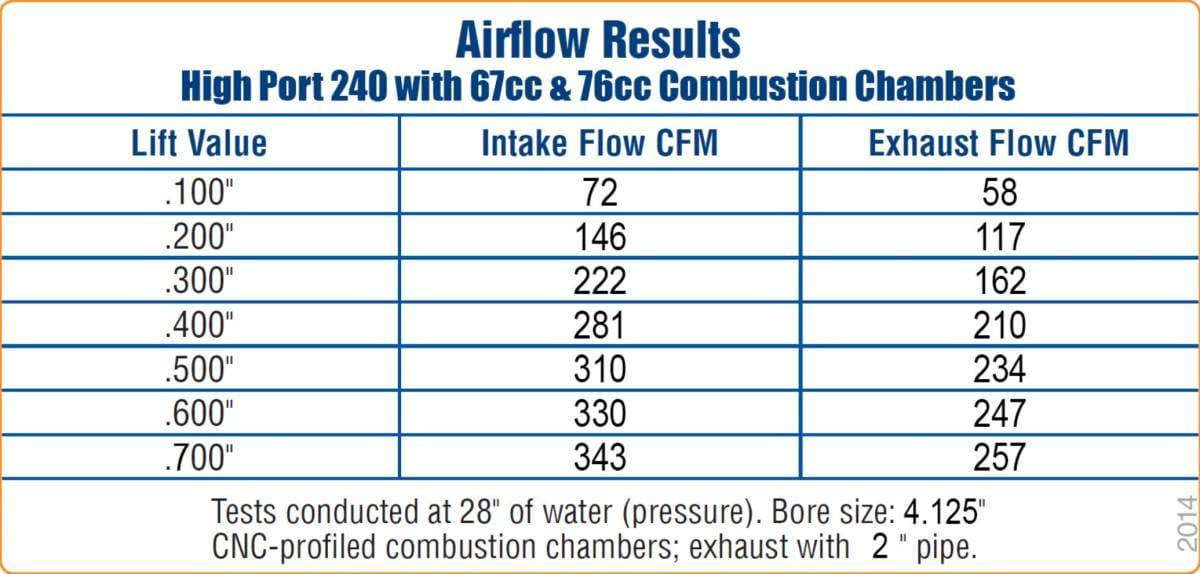

Serious CNC-ported horsepower! Trick Flow® High Port® 240 cylinder heads are specifically designed for large cubic inch small block Ford engines as well as engines with high-boost super- and turbocharges, big shot nitrous oxide systems, and other mega-power combinations. They feature unique valve spacing, .750 in. raised exhaust runners, extra strong castings and thick decks for additional rigidity and gasket integrity, superior cooling characteristics, and most importantly, excellent airflow. Trick Flow® High Port® 240 heads have top-of-the-line CNC competition ported runners with a high resolution surface finish for maximum airflow and power over the entire rpm range. The entry into the intake runner has been reshaped to help seal the area along the port roof and thicker port walls increase strength and provide more material for porting. Plus, interlocking ductile iron seats are used to handle the stresses of high heat, high horsepower applications. Other features include fully CNC-profiled combustion chambers with port-to-valve seat blending (bowl blending) and raised valve cover rails. Trick Flow® High Port® 240 cylinder heads are available fully assembled or as bare castings.
Cylinder Head Style: Assembled Cylinder Head Material: Aluminum Cylinder Head Finish: Natural Combustion Chamber Volume (cc): 76 CNC-Machined Combustion Chamber: Yes Intake Runner Volume (cc): 240cc Exhaust Runner Volume (cc): 95cc CNC-Machined Intake Runner: Yes CNC-Machined Exhaust Runner: Yes Combustion Chamber Style: Heart Intake Port Shape: Rectangular Intake Port Location: Standard Exhaust Port Shape: Square Exhaust Port Location: Raised Spark Plug Style: Angle Intake Valves Included: Yes Intake Valve Diameter (in): 2.100 in. Exhaust Valves Included: Yes Exhaust Valve Diameter (in): 1.600 in. Valve Springs Included: Yes Maximum Valve Lift (in): 0.680 in. Outside Diameter of Outer Spring (in): 1.550 in. Damper Spring Included: Yes Number of Springs Per Valve: Dual Retainers Included: Yes Retainer Material: Titanium Locks Included: Yes Lock Style: 10 degree Valve Stem Seals Included: Yes Rocker Arm Studs Included: Yes Rocker Arm Nut Thread Size: 7/16-20 in. Rocker Arms Included: No Rocker Arm Nuts Included: No Guideplates Included: Yes Guideplate Pushrod Size: 5/16 in. Valve Cover Mounting Style: Perimeter bolt Accessory Bolt Holes Drilled: Yes Intake Valve Angle: 20 Exhaust Valve Angle: 20 Valve Guides Included: Yes Valve Guide Material: Bronze Valve Seats Machined: Yes Valve Seat Material: Ductile iron Steam Holes Drilled: No Oiling Style: Through pushrod Machined for O-Ring: No Heat Crossover: No Quantity: Sold individually. Notes: Exhaust port is raised 0.750 in. over stock location, must use headers designed for this cylinder head. Valve cover rail is raised 0.400 in. over stock. Must use inline valve-style piston or High Port specific pistons.
