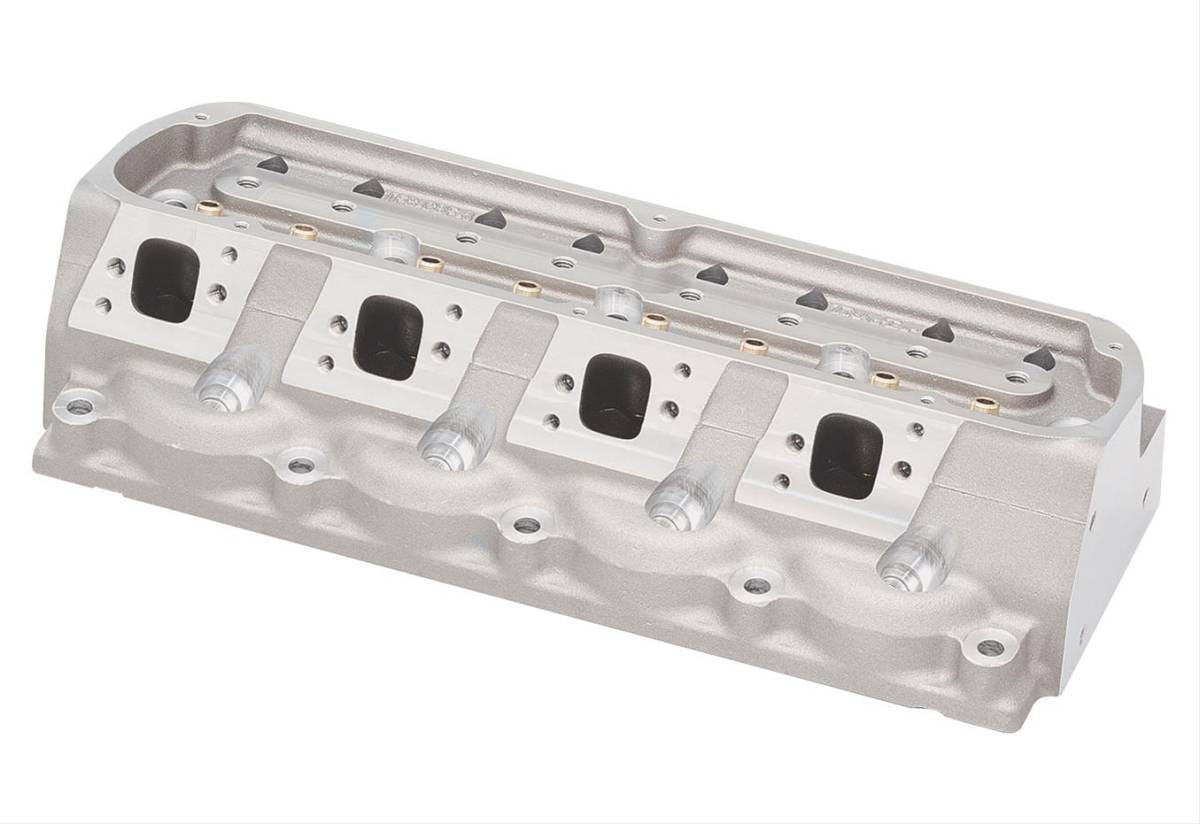

Trick Flow High Port Sbf 225cc Aluminum Bare Cylinder Head Castings 70cc

Serious CNC-ported horsepower! Trick Flow® High Port® 225 cylinder heads are specifically designed for large cubic inch small block Ford engines, as well as engines with high-boost superchargers or turbos, big shot nitrous oxide systems, and other mega-power combinations. They feature unique valve spacing, .750 in. raised exhaust runners, extra-strong castings, and thick decks for additional rigidity and gasket integrity, superior cooling characteristics, and, most importantly, excellent airflow. Trick Flow® High Port® 225 heads have top-of-the-line CNC Competition Ported runners with a high-resolution surface finish for maximum airflow and power over the entire rpm range. The entry into the intake runner has been reshaped to help seal the area along the port roof and thicker port walls, increase strength, and provide additional material for porting. Plus, interlocking ductile iron seats are used to handle the stresses of high-heat, high-horsepower applications. Other features include fully CNC-profiled combustion chambers with port-to-valve seat blending (bowl blending) and raised valve cover rails. Trick Flow® High Port® 225 cylinder heads are available fully assembled or as bare castings.
Cylinder Head Style: Bare Cylinder Head Material: Aluminum Cylinder Head Finish: Natural Combustion Chamber Volume (cc): 70 CNC-Machined Combustion Chamber: Yes Intake Runner Volume (cc): 225cc Exhaust Runner Volume (cc): 95cc CNC-Machined Intake Runner: Yes CNC-Machined Exhaust Runner: Yes Combustion Chamber Style: Heart Intake Port Shape: Rectangular Intake Port Location: Standard Exhaust Port Shape: Square Exhaust Port Location: Raised Intake Valves Included: No Intake Valve Diameter (in): 2.080 in. Exhaust Valves Included: No Exhaust Valve Diameter (in): 1.600 in. Valve Springs Included: No Damper Spring Included: No Retainers Included: No Locks Included: No Valve Stem Seals Included: No Rocker Arm Studs Included: No Rocker Arms Included: No Rocker Arm Nuts Included: No Guideplates Included: No Valve Cover Mounting Style: Perimeter bolt Accessory Bolt Holes Drilled: Yes Intake Valve Angle: 20 Exhaust Valve Angle: 20 Valve Guides Included: Yes Valve Guide Material: Bronze Valve Seats Machined: No Valve Seat Machine Style: Un-machined seat Valve Seat Material: Ductile iron Steam Holes Drilled: No Oiling Style: Through pushrod Machined for O-Ring: No Heat Crossover: No Quantity: Sold individually. Notes: Exhaust port is raised 0.750 in. over stock location, valve cover rail is raised 0.400 in. over stock. Must use inline valve style piston or High Port specific pistons.
