Trick Flow High Port Sbf 192cc Aluminum Cylinder Head 64cc

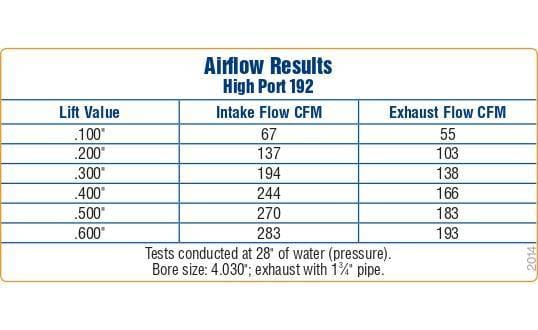

The heads that started it all. Trick Flow High Port® 192 cylinder heads are among the most dominant aftermarket small block Ford heads in racing. They feature unique valve spacing, .750" raised exhaust runners, extra strong castings and thick decks for additional rigidity and gasket integrity, superior cooling characteristics, and most importantly, excellent airflow. The large Fast As Cast® runners duplicate the profiles of CNC-ported heads to create ultra-high flowing heads without costly CNC-porting. The entry into the intake runner has been reshaped to help seal the area along the port roof and thicker port walls increase strength and provide more material for porting. Plus, interlocking ductile iron seats are used to handle the stresses of high heat, high horsepower applications. Other features include fully CNC-profiled combustion chambers with port-to-valve seat blending (bowl blending) and raised valve cover rails. Trick Flow High Port 192 cylinder heads are available fully assembled or as bare castings.
Cylinder Head Style: Assembled Cylinder Head Material: Aluminum Cylinder Head Finish: Natural Combustion Chamber Volume (cc): 64 CNC-Machined Combustion Chamber: Yes Intake Runner Volume (cc): 192cc Exhaust Runner Volume (cc): 87cc CNC-Machined Intake Runner: No CNC-Machined Exhaust Runner: No Intake Port Location: Standard Exhaust Port Shape: Square Exhaust Port Location: Raised Intake Valves Included: Yes Intake Valve Diameter (in): 2.020 in. Exhaust Valves Included: Yes Exhaust Valve Diameter (in): 1.600 in. Valve Springs Included: Yes Maximum Valve Lift (in): 0.600 in. Outside Diameter of Outer Spring (in): 1.460 in. Damper Spring Included: Yes Number of Springs Per Valve: Dual Retainers Included: Yes Retainer Material: Chromemoly steel Locks Included: Yes Lock Style: 7 degree Valve Stem Seals Included: Yes Valve Stem Seal Style: Viton® fluoroelastomer Rocker Arm Studs Included: Yes Rocker Arm Nut Thread Size: 3/8-24 in. Rocker Arms Included: No Rocker Arm Nuts Included: No Guideplates Included: Yes Guideplate Pushrod Size: 5/16 in. Valve Cover Mounting Style: Perimeter bolt Accessory Bolt Holes Drilled: Yes Intake Valve Angle: 20 Exhaust Valve Angle: 20 Valve Guides Included: Yes Valve Guide Material: Manganese bronze Valve Seats Machined: Yes Valve Seat Machine Style: 3-angle Valve Seat Material: Ductile iron Steam Holes Drilled: No Oiling Style: Through pushrod Machined for O-Ring: No Heat Crossover: No Quantity: Sold individually. Notes: Exhaust port is raised 0.750 in. over stock location, must use headers designed for this cylinder head. Valve cover rail is raised 0.400 in. over stock.
