Rc Fuel Injectors Mazda Miata 1990-2004 550cc

These RC Engineering 550cc High Resistance Saturated fuel injectors are flow matched and will fit every model, engine, type or style for the following vehicles:

1990-2004 Mazda Miata (Clips Required on some models)
Part # SL9-550

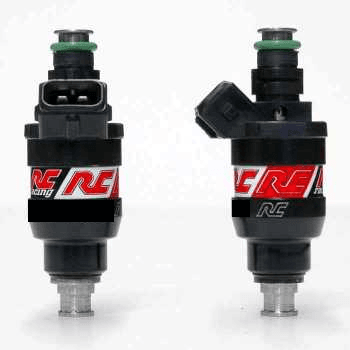

Included: 4 Denso style injectors and flow sheets. The photo is an example of a similar set.

Note:
If you would like new OBD1 Bosch EV1 center notch style injector clips they are available - additional $19.95.

Size Calculation
To determine what size injectors you should use, please visit : RC Engineering's Technical Notes

Specifications
Flow Rate in CC per minute: 550CC/min @ 43.5 PSI
Flow Rate in LB per hour: 52LBS/HR @ 43.5 PSI
Resistance: 12.5 ohms
Voltage: 8-15 Volts, nominal 13.5 Volts
Amperage: 1.0 Amps
Pressure: Min 30PSIG/ Max 100PSIG
Part Number: SL9-550
Spacers/O-rings Included: Yes
Warranty: 1 year warranty!
