Mitsubishi Lancer Evo 1000cc Fuel Injectors

These RC Engineering 1000cc Low Resistance Peak and Hold fuel injectors are flow matched and will fit every model, engine, type or style for the following vehicles:

ALL Mitsubishi Lancer Evolution (Models 1-9 including EVO VII, VIII, IX)

Part # PL4-1000

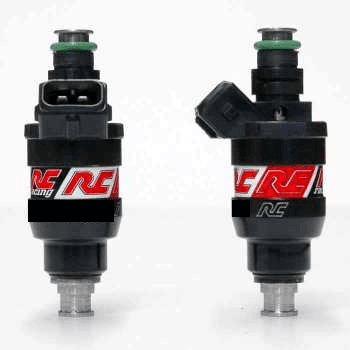

Included: 4 Denso style injectors and flow sheets. The photo is an example of a similar set.

Note:
If you would like new OBD1 Bosch EV1 center notch style injector clips they are available - additional $19.95.

Size Calculation
To determine what size injectors you should use, please visit : RC Engineering's Technical Notes

Specifications
Flow Rate in CC per minute: 1000CC/min @ 43.5 PSI
Flow Rate in LB per hour: 95LBS/HR @ 43.5 PSI
Resistance: 2.5 ohms
Voltage: 8-15 Volts, nominal 13.5 Volts
Amperage: Peak 4.0 Amps / Hold 1.5 Amps
Pressure: Min 30PSIG/ Max 100PSIG
Part Number: PL4-1000
Spacers/O-rings Included: No
Warranty: 1 year warranty!
