Lancia Delta Integrale 550cc Fuel Injectors

These RC Engineering 550cc High Resistance Saturated fuel injectors are flow matched and will fit every model, engine, type or style for the following vehicles:

Many Lancia Models
These are Bosch style injectors which work on most top feed Lancia fuel injected vehicles, including the Lancia Delta Integrale.

Part # SL4-550

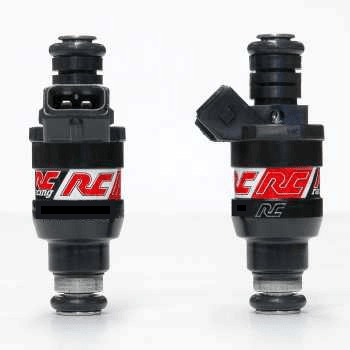

Included: 4 Bosch style injectors and flow sheets. The photo is an example of a similar set.

Note:
If you would like new OBD1 Bosch EV1 center notch style injector clips they are available - additional $19.95.

Size Calculation
To determine what size injectors you should use, please visit : RC Engineering's Technical Notes

Specifications
Flow Rate in CC per minute: 550CC/min @ 43.5 PSI
Flow Rate in LB per hour: 52LBS/HR @ 43.5 PSI
Resistance: 12.5 ohms
Voltage: 8-15 Volts, nominal 13.5 Volts
Amperage: 1.0 Amps
Pressure: Min 30PSIG/ Max 100PSIG
Part Number: SL4-550
Spacers/O-rings Included: No
Warranty: 1 year warranty!
