Injector Dynamics Id1300 Fuel Injectors 1996-2002 Toyota 4runner / 5vz-Fe

This is a set of 6 Injector Dynamics ID1300 fuel injectors. Top-feed 14mm applications for 1996-2002 Toyota 4Runner / 5VZ-FE.

Nominal Flow Rate – 1340cc/min @ 43.5 psi (3 Bar)
Maximum Differential Fuel Pressure – 87 psi (6 Bar)
Fuel Compatibility – Compatible With All Known Fuels
Electrical Connector – US EV-6 *Adaptor top, Denso lowers*

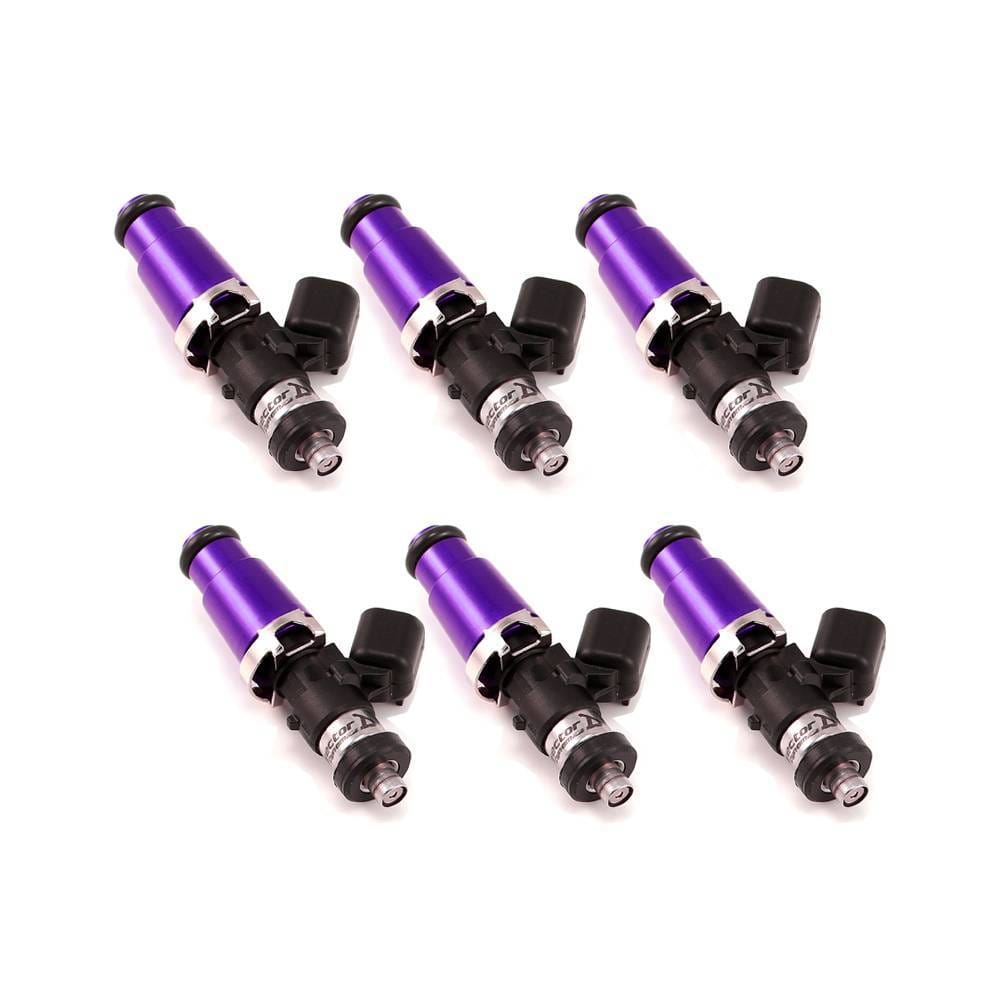

Included: 6 Injector Dynamics ID1300 fuel injectors. The photo is an example of a similar set.


While the ID1300 was designed with an eye towards ethanol fueled engines, we have accounted for the occasional need to convert back to gasoline. The ID1300 has a minimum fuel mass compatible with gasoline use, and will provide exceptional idle and cruise behavior under these conditions. In addition to its multi-fuel capabilities, the compact body of the ID1300 allows fitment in 200+ applications, making it the most versatile injector in our lineup.

These Injector Dynamics fuel injectors will fit many applications, including, but not limited to:

1996-2002 Toyota 4Runner / 5VZ-FE - Top Feed

Specifications
Nominal Flow Rate – 1340cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
Maximum Differential Fuel Pressure – 6 Bar (87 psi)
Fuel Compatibility – Compatible With All Known Fuels
Electrical Connector – US EV-6 *Adaptor top, Denso lowers*
Injector Body Design: Metal and composite plastic
O-Rings Included: Yes, on the injectors

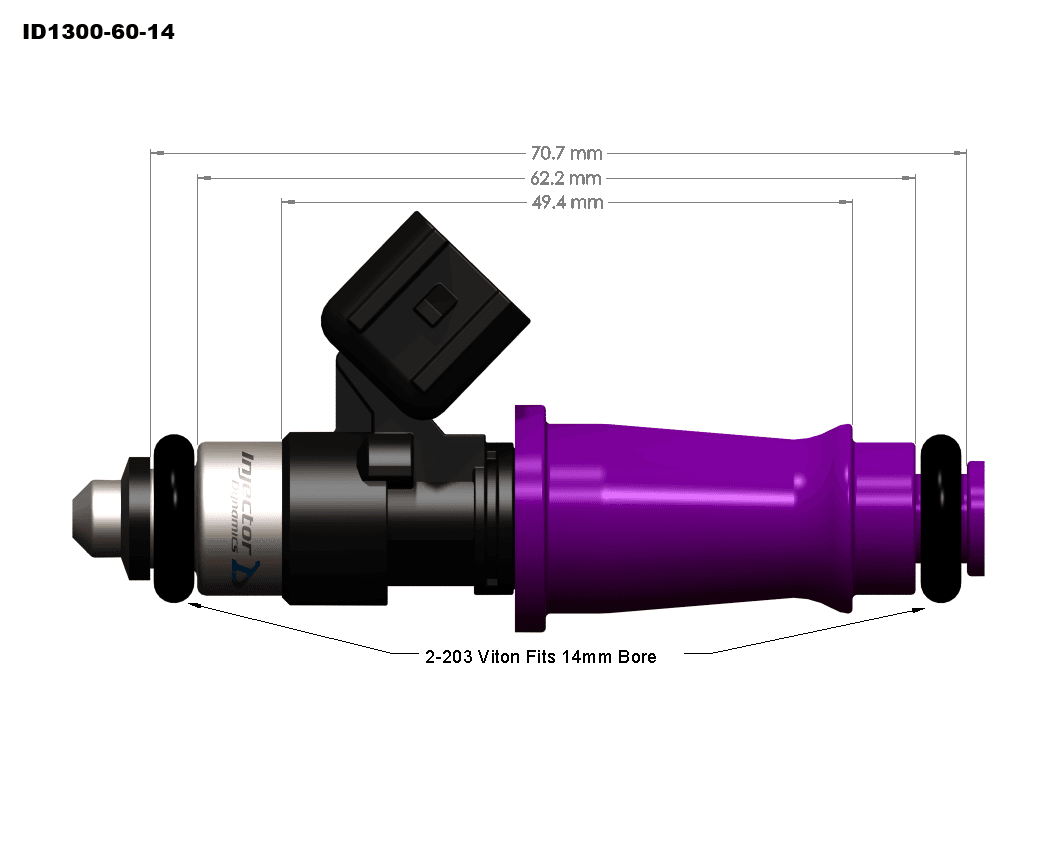

Length of injector from o-ring to o-ring: 60mm
Diameter of top o-ring / fuel rail bore: 14mm
Diameter or style lower o-ring or cushion: Denso square o-ring, 16mm x 5mm

Slope and Offset vs. Pressure data available upon request.
