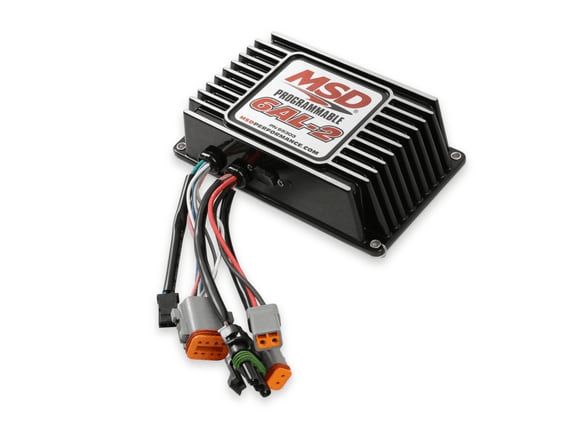

Holley Digital Programable 6AL-2 Universal Ignition Control - Black

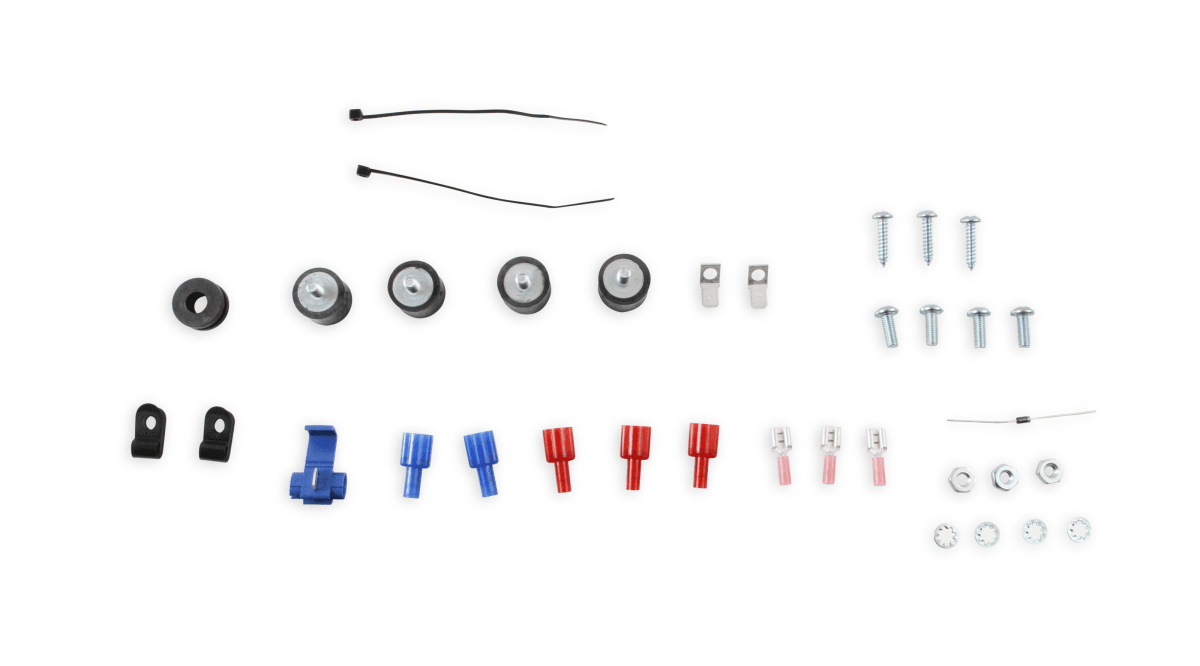

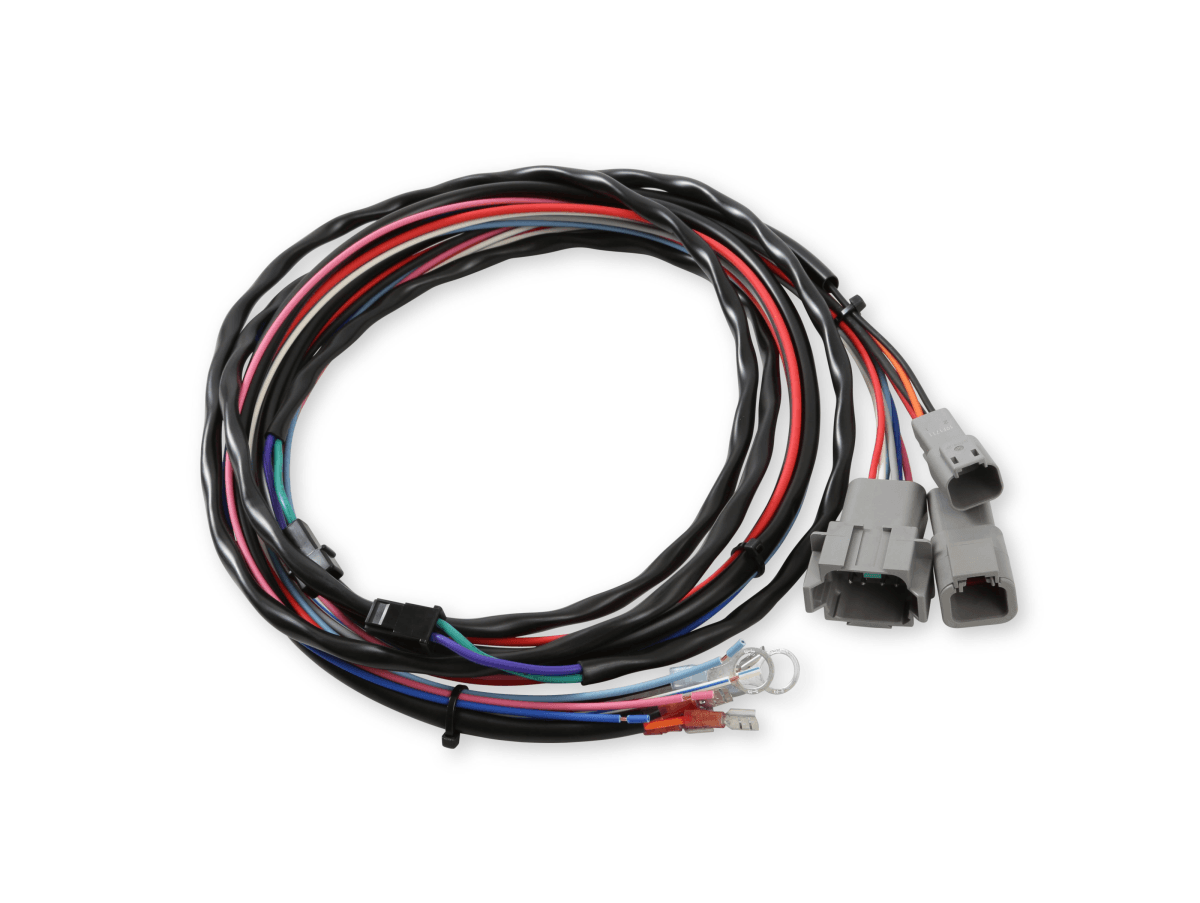

The Programmable 6AL-2 lets you lock out the distributor and program a timing curve via a PC. You'll also be able to set a 2-Step Rev Limiter, a retard for use with nitrous and even a boost timing curve for forced induction engines! The Programmable 6AL-2 shares the same advanced features of the new 6AL-2 with 535 primary volts and spark energy reaching 135 mJ! Vibration mounts, wiring and a PC cable are supplied. Must use MSD Pro-Data+ Software to program. Note: This system is 50 state legal CARB EO # D-115-21
Specs:
Current Draw: .7 Amp per 1,000 RPM
EO Number: D-115-21
Primary Voltage: 535 Volts
RPM Range: 12,500 RPM with 14.4 Volts
Secondary Voltage: 45,000 Volts
Spark Energy: 135 mJ per spark
Voltage Required: 12-18 Volts, Negative Ground
Warranty: Limited 1 Year WarrantyFeatures:
Advanced features allow for use in street and racing applications
PC Programmable with easy-to-use Windows based Pro-Data +Software
Plot a boost timing map with 0.1° per psi accuracy
Programmable 3-Step Rev Limiter (100 RPM increments)
Step retard for nitrous applications plus a boost timing map
Capacitive Discharge technology for fast rise time and maximum spark energy
EO # D-115-21Emissions
This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number.
The following vehicles are considered Emissions Controlled Vehicles:1966 and newer U.S. manufactured California Certified vehicles
1968 and newer U.S. manufactured Federally Certified vehicles
1968 and newer Foreign manufactured vehicle

Instructions
