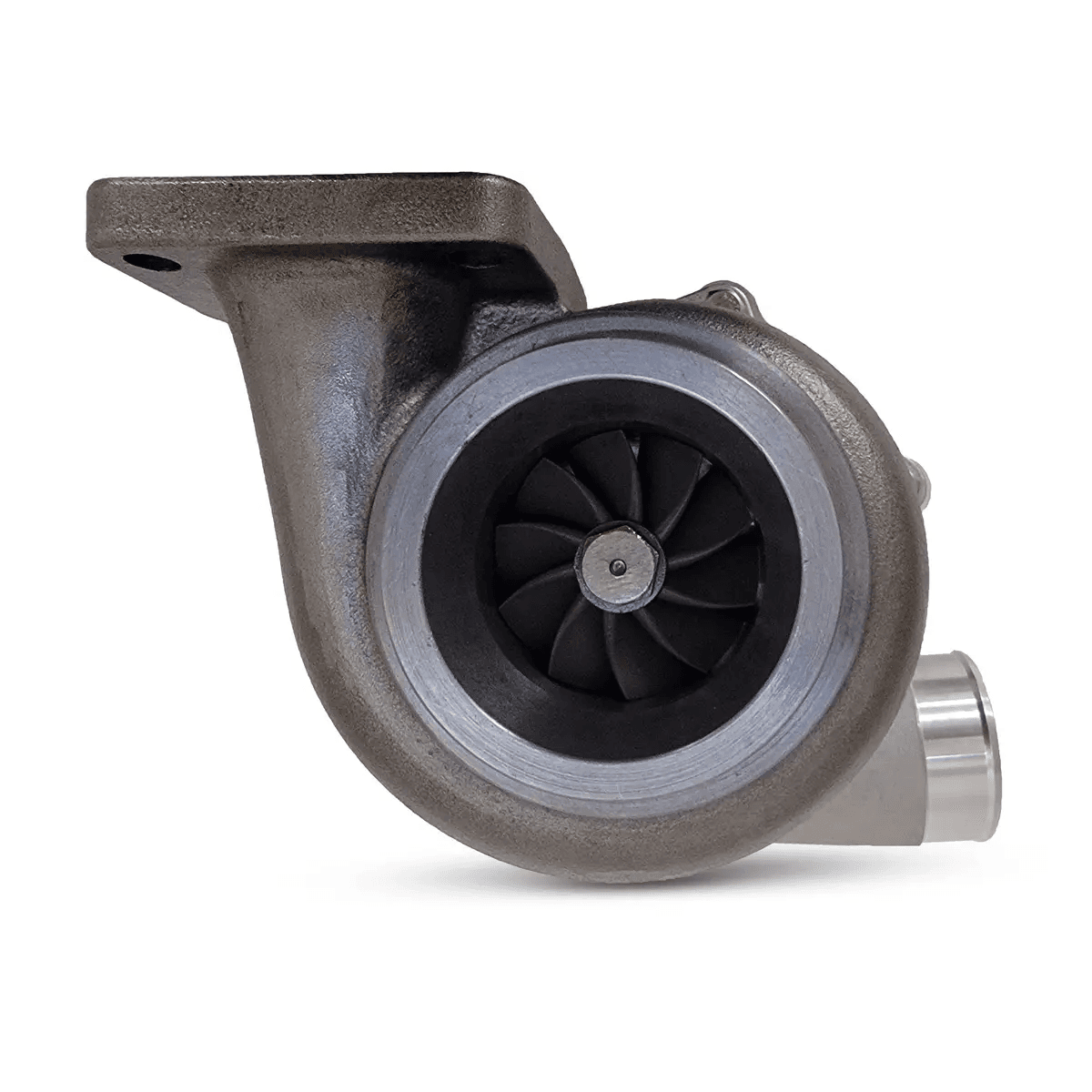

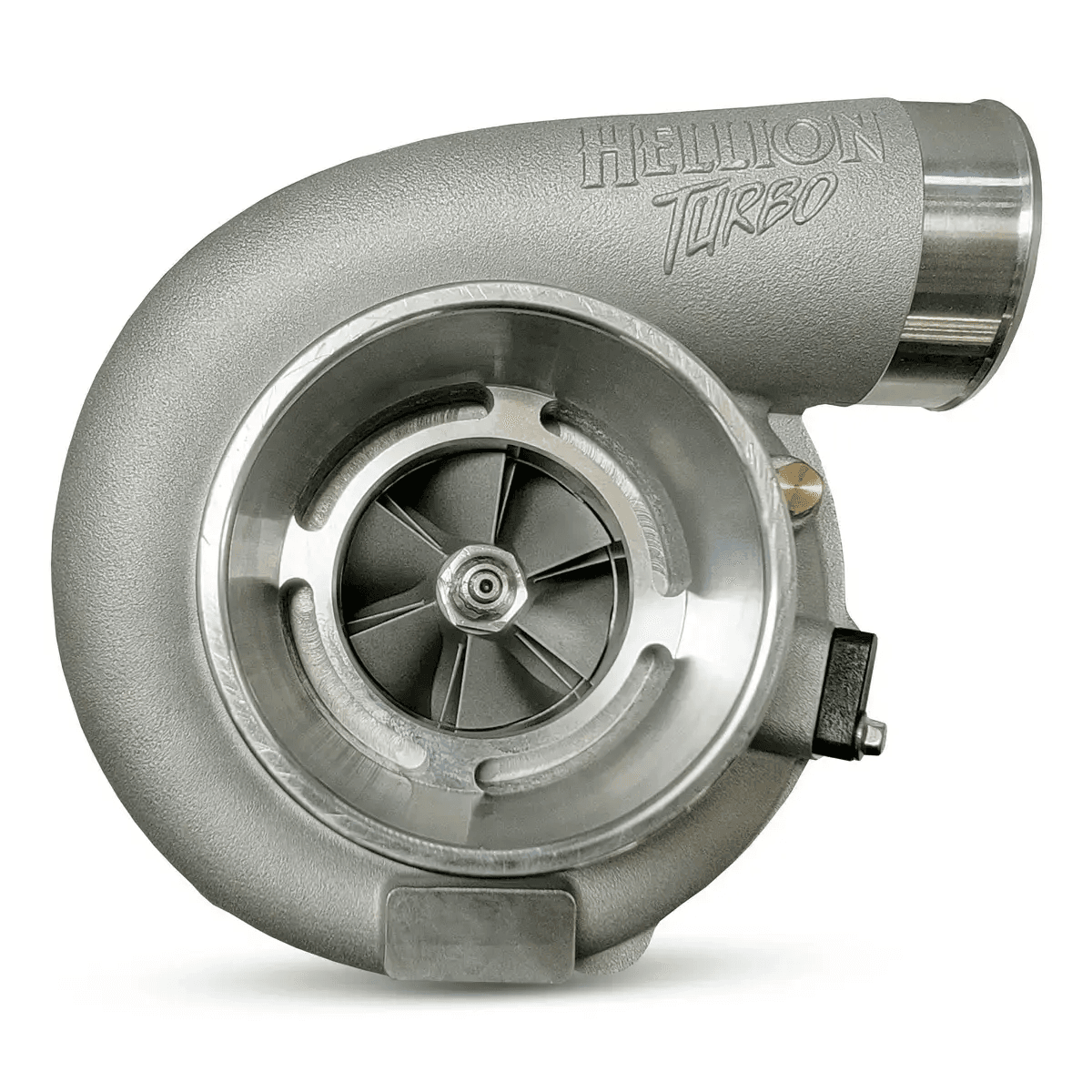

Hellion 62mm Universal 62/62 Turbocharger - T4 Inlet Flange (700 Max HP)

The Hellion 62/62 T4 turbo is the benchmark unit for our game changing sleeper turbo systems. These turbos feature a cast 62mm compressor wheel and industry standard journal bearing housing. The turbine has a 62mm exducer and uses a T4 4-bolt inlet and 3″ v-band outlet housing. This unit comes standard with a 2-year warranty. Note: For those looking to run twin-turbos add 2 to cart.
There are many options available for Hellion Turbo kits. If you have any questions please email sales@TREperformance.com or call 760-586-5617. Specifications:
Max HP: 700
Bearing Type: Journal
Compressor Inducer (MM): 62
Ported Shroud: Yes
Turbine Exducer (MM): 62
Turbine Inlet: T4
Turbine Outlet: V-Band
Turbine A/R: 0.81
Turbine Scroll: Single Features:
62mm compressor wheel.
4” inlet / 2.5” outlet / .70 A/R compressor cover with and anti-surge ports standard.
62mm turbine wheel.
Journal bearing center section.
Integrated speed sensor port.
4-bolt inlet / 3″ v-band outlet / .81 A/R single scroll cast iron T4 turbine housing.
