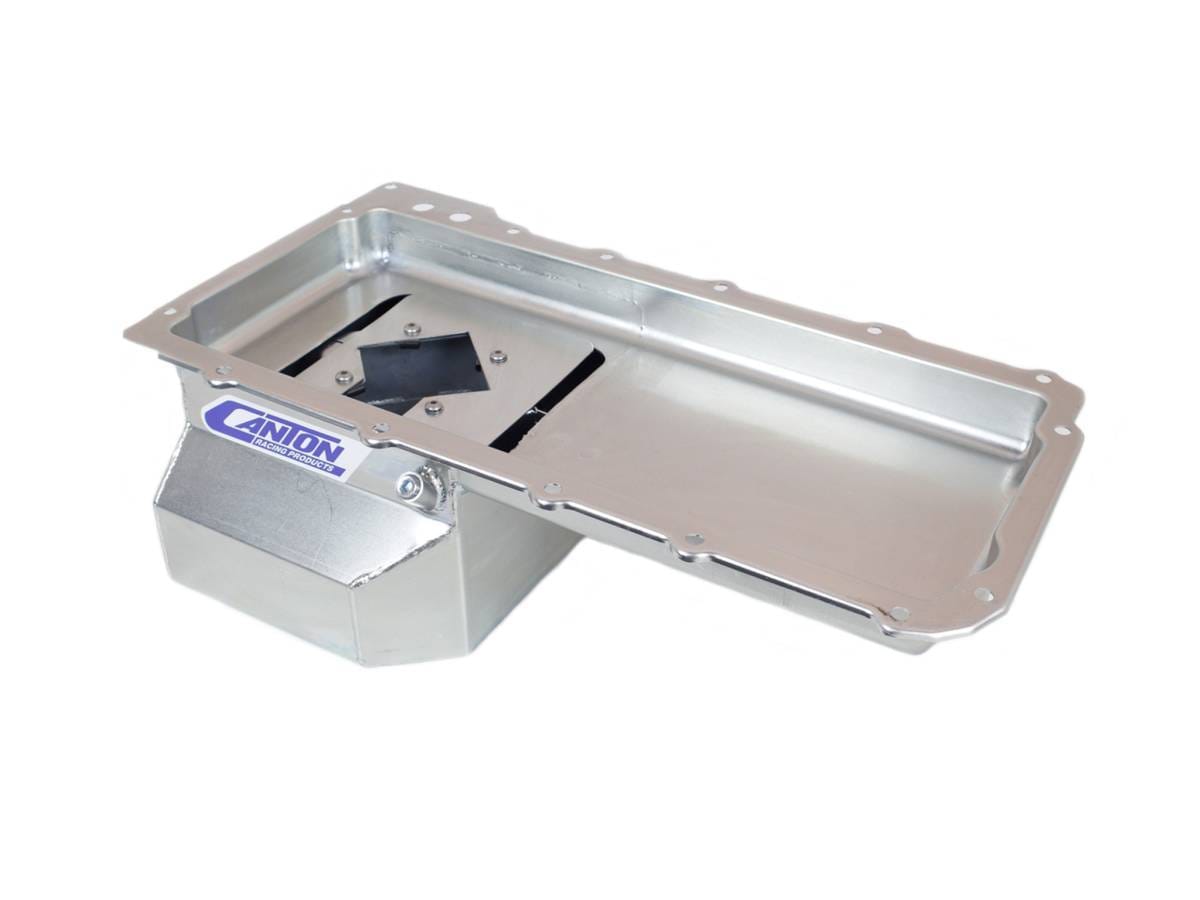

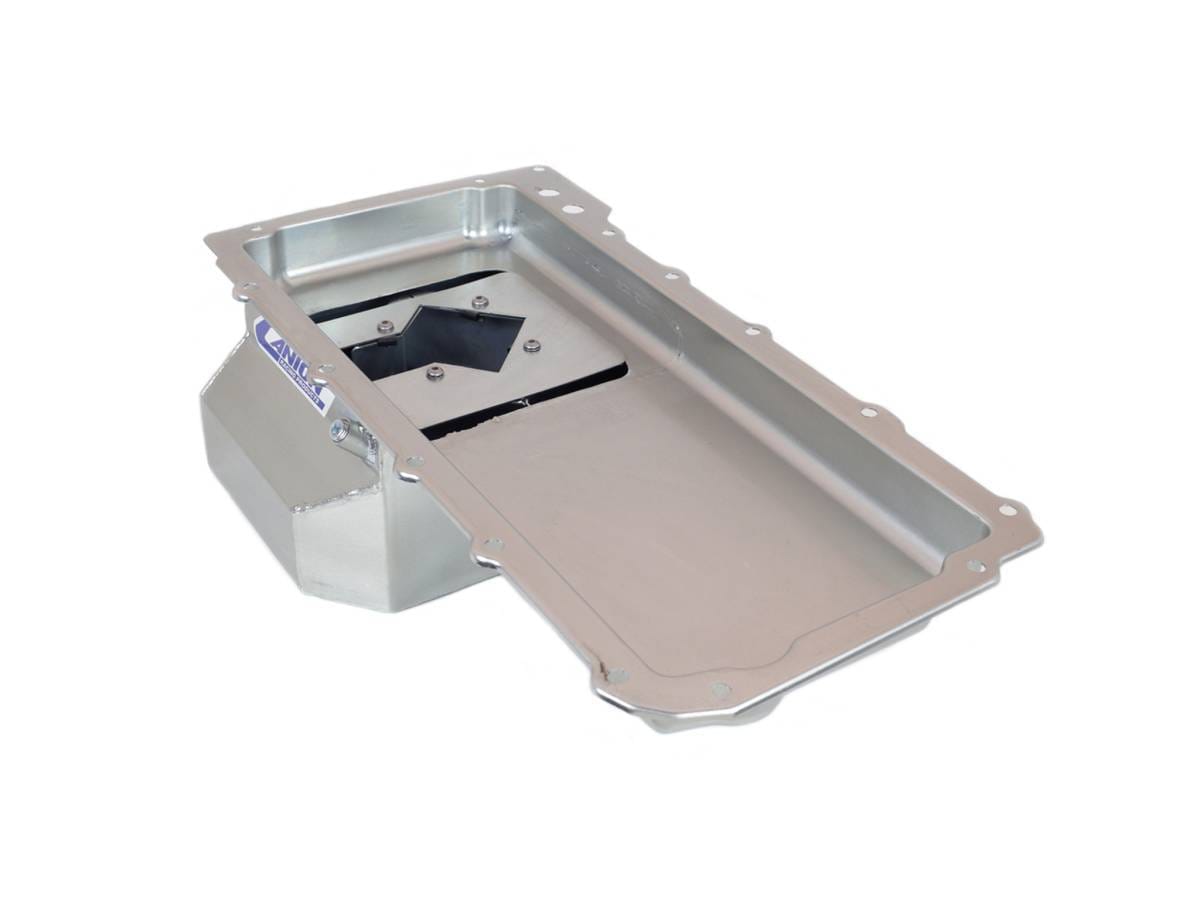

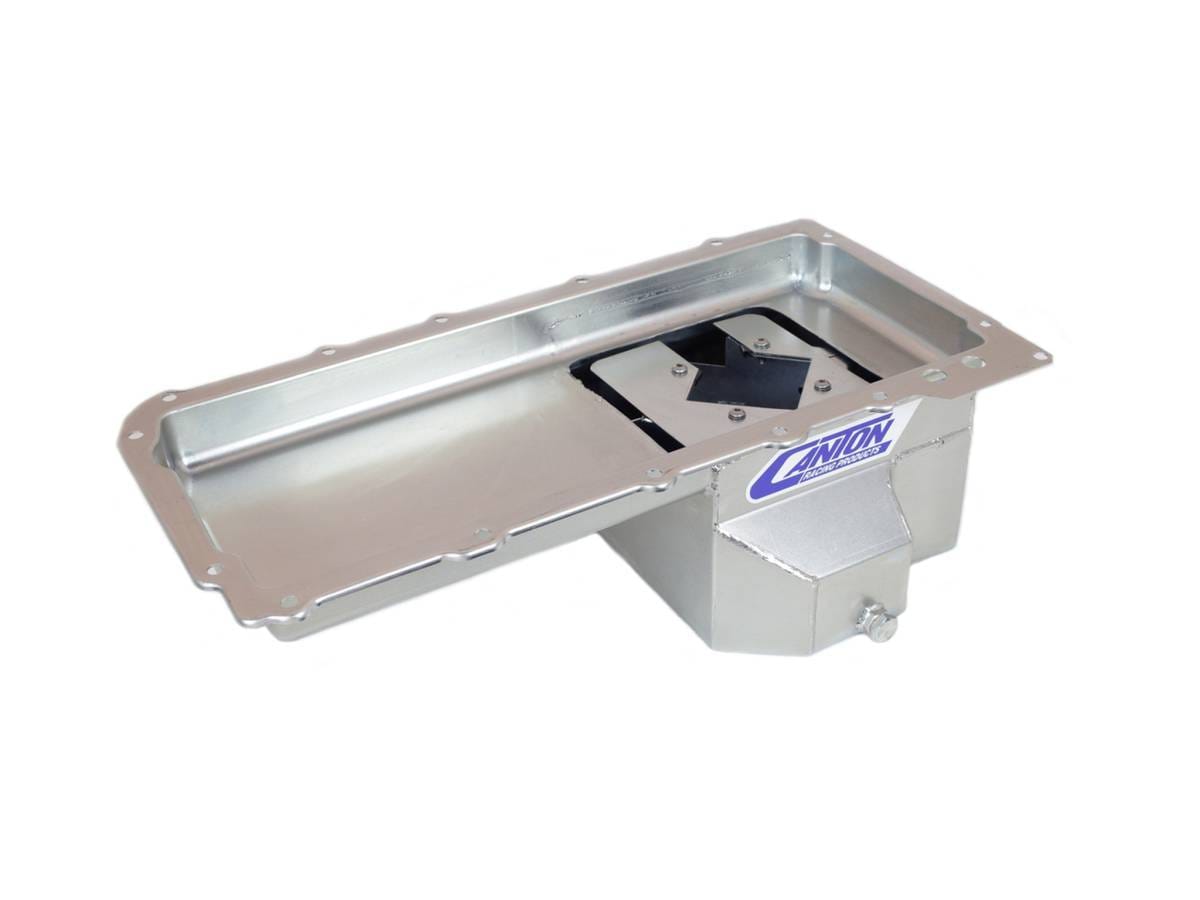

GM Ls1/Ls6 Sbc Rear Sump Road Race Baffled Canton Oil Pan - Black

This pan is for GM LS1/LS6 powered cars used in road racing and heavy street use. Fits A,F,Y and 1970's X-body cars. Clears a 4.25" stroke with steel rods.

Note: This pan Requires our LS1 remote filter adapter (#22-630 or #22-632) or filter mount (#22-631) and our #15-275 Pickup. Will not fit on LS Next 2 blocks.

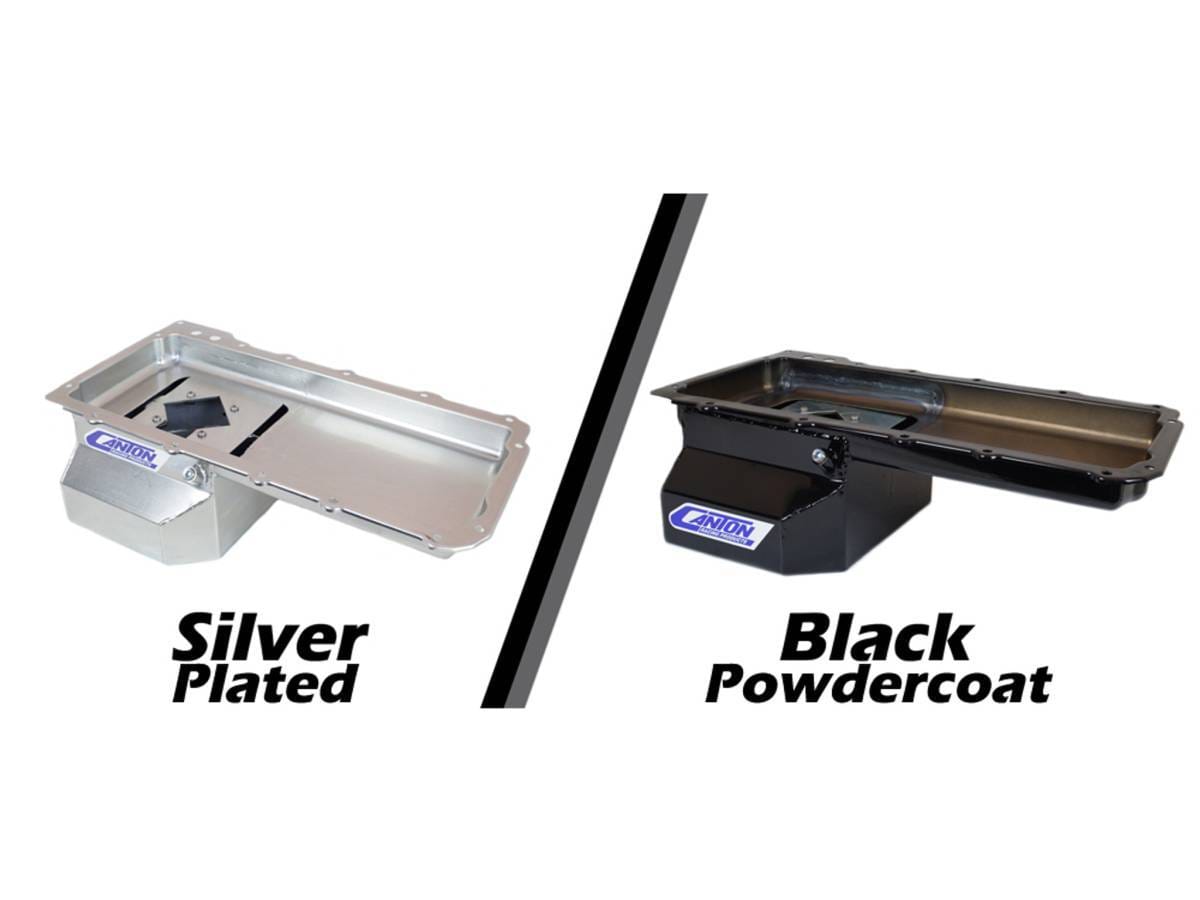

Pictures are for reference, oil pan would come black*

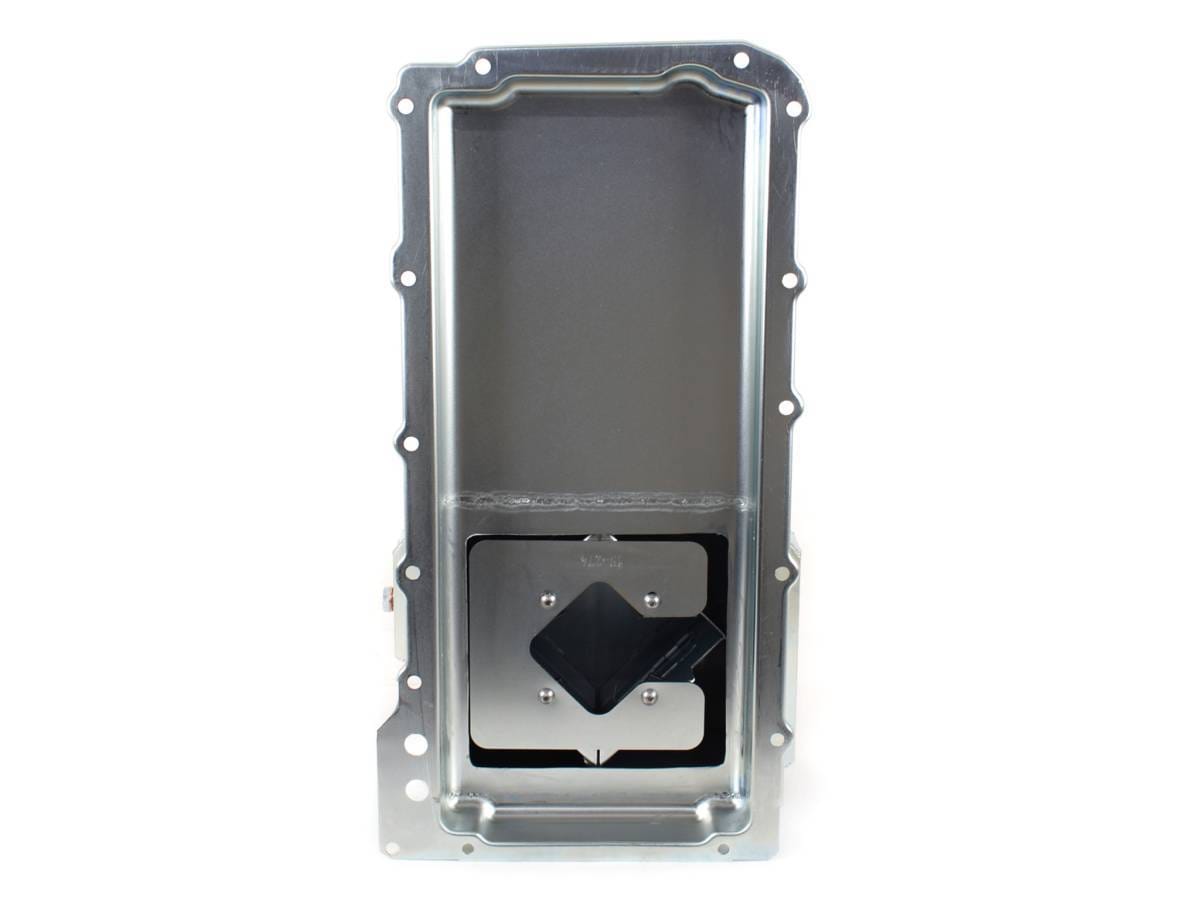

FEATURES: Five Trap Door Baffles. Crank Scraper. Built In Screen Windage Tray. 1/2" NPT Temperature Bung. Magnetic Drain Plug

STYLE: 6-1/2" deep, fully baffled for road racing, this pan was designed to fit in GM LS1/LS6 powered cars

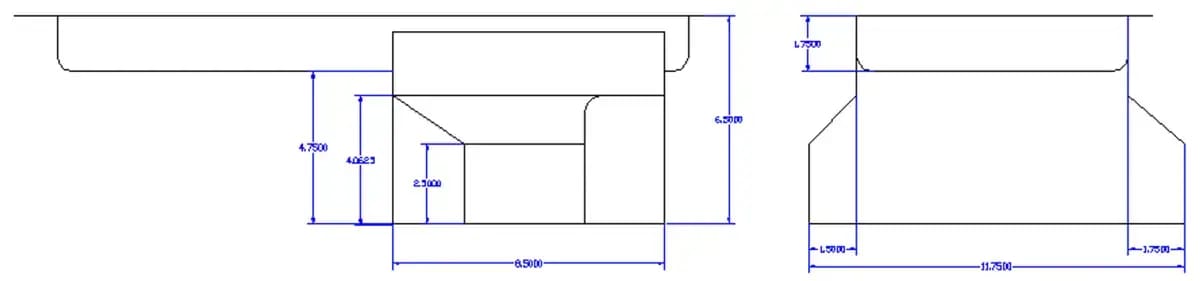

SIZE: 6-1/2" deep, 11-3/4" wide, 12" long sump with an 6.5 quart system capacity.

OIL PAN PART #: 15-274BLK pan for direct bolt-in for GM LS1/LS6 Engines. Powdercoated Black.

RECOMMENDED ACCESSORIES:
PART #: 21-870 - LS Flywheel Cover
PART #: 22-302 - GM LS1 Oil Pan Stud Kit
PART #: 22-620 - GM LS Remote Filter Mount
