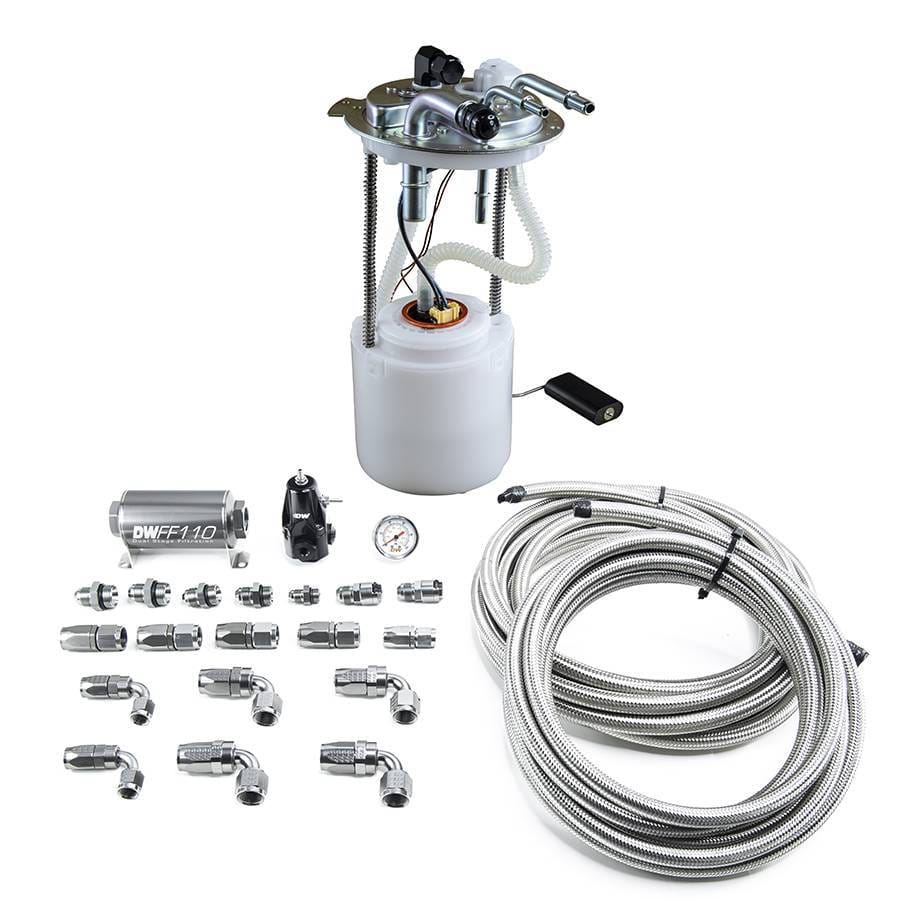

GM 2005-2019 Suv 400lph Deatschwerks Fuel Pump Module With Cpe Return Plumbing Kit

The DW400 05-19 GM SUV Module is a complete plug-n-play replacement for the OE unit. The module incorporates the DW400 pump which is over 60% more than the OE module. This module also integrates seamlessly with the OE wiring harness and level sender. The module also utilizes a venturi fed surge bucket for consistent fueling at low tank levels and high G conditions. - Powered by the 415LPH DW400 Bosch Pump - Supports 750+ HP (pump gas) - Return System For Low Level Fuel Pick Up - Integrated Filtration Pre-Pump, External Post Pump - Retains OE-Compatible Fuel Level Sender - Full Return Plumbing: Stainless Steel Braided CPE Return Plumbing Kit
Included: (1) GM 2005-2019 SUV 400LPH DeatschWerks Fuel Pump Module Kit

Specifications
Wire Harness: 12ga Replacement Pigtail Included
Filtration: Integrated 100µ, External 10µ
Regulator: DWR1000c Black
AN Line: CPE Return Plumbing Kit
Feed Line: Uses your OEM 3/8" Feed
Low Level Pickup: Return Fed Bucket
Fuel Compatibility: Gasoline and Ethanol
Rated Working Press: 3-8 BAR (43-116 psi)
Fuel Level Sender: Included

Fitment: 2005-2019 Avalanche 1500, Escalade/ESV/EXT, Sonora, Suburban 1500, Tahoe, Yukon
Yukon XL 1500, 4.8, 5.3, 6.0, and 6.2 Engines
*Does Not Fit 2009 Escalade 5.3 Flex *Note: On some Installations, the clocking tab will need to be removed to install module in tank
*Module Testing Notes: All testing performed by DeatschWerks at 13.5v on calibrated equipment. In-module flow
rates are lower than pump alone due to parasitic losses of venturi system, check valves and plumbing.
