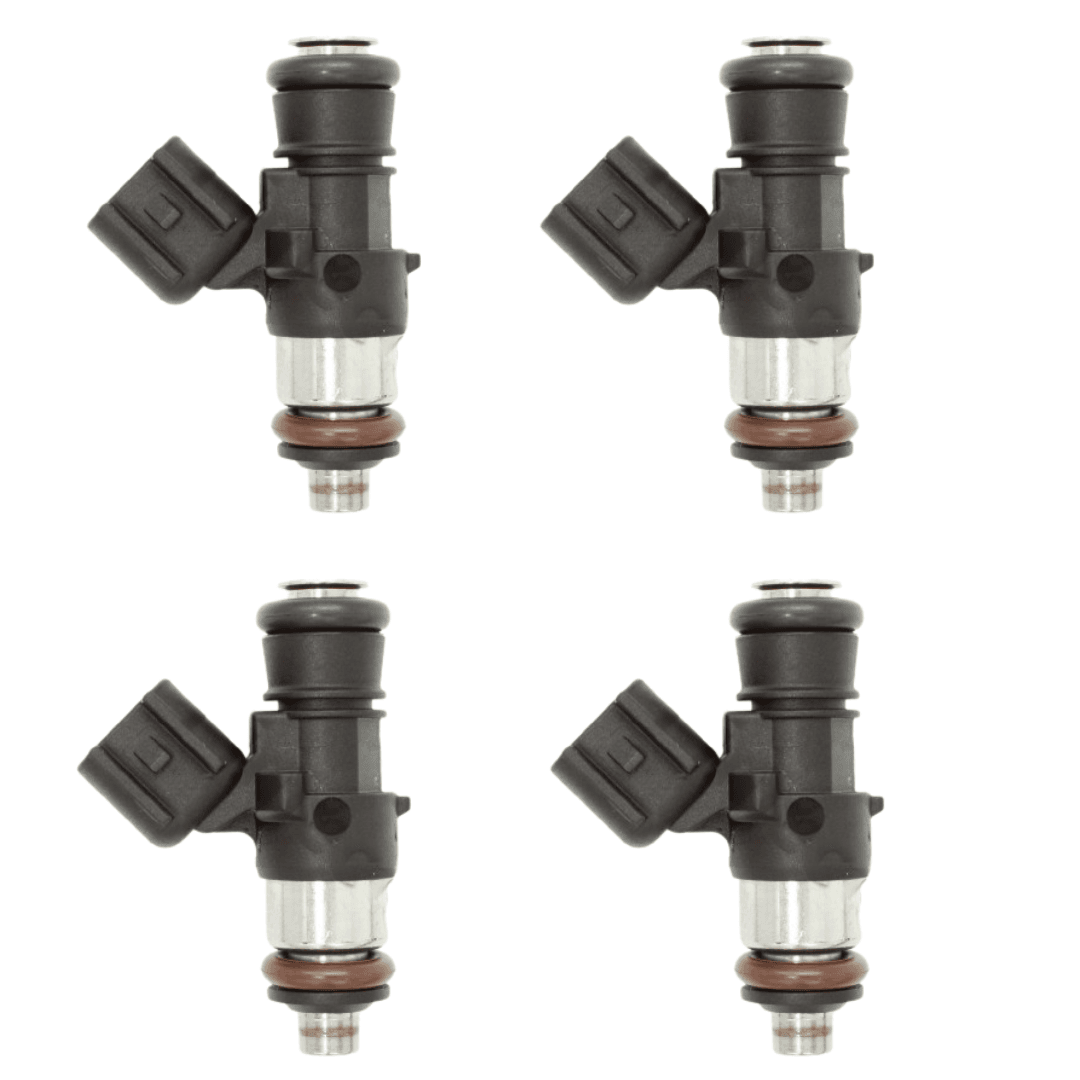

Genuine Bosch 0280158677 Ev6/Uscar 1650cc Short Fuel Injectors - 4

This is for a four (4) Genuine Bosch EV6/USCAR 157lb/hr High Resistance, saturated fuel injectors. These are the newer style skinny injectors, with EV6/USCAR electrical connections.

Flow Rate in CC per minute: 1450c @ 3 bar, 1650cc @ 4 bar & 1900cc @ 5 bar
Flow Rate in LB per hour: 157 LBS/HR @ 4 bar

Note: These injectors have EV6/USCAR electrical plugs, if your looking for EV1/EV14 style electrical plugs see PN: Bosch-0280158333-4
Exactly the same injector as Bosch (EV1/EV14) 0280158333 and ASNU 90/2000. Nominal max flow using ASNU 42 test fluid (+23 C / 73 F) is 1450cc @ 3 bar, 1650cc @ 4 bar & 1900cc @ 5 bar. You can use adapters with either 11mm or 14mm top orings to suit your fuel rail. Compatible with E85 / RE85.

252 HP Normally Aspirated per Injector (0.53 B.S.F.C & 85% Duty Cycle 3.0 Bar Fuel Pressure) - estimated
222 HP Turbo (0.6 B.S.F.C & 85% Duty Cycle 3.0 Bar Fuel Pressure) up to 1 Bar Boost - estimated
205 HP Turbo (0.65 B.S.F.C & 85% Duty Cycle 3.0 Bar Fuel Presure) up to 2 Bar Boost - estimated

Specifications
> Flow Rate - 1650cc/min (157Lb/Hr) @ 4.0Bar
> ORings - 14mm Top / 14mm Bottom
> Electrical Plug - Bosch EV6 (USCAR Plug)
> Impedance - 8.4 Ohms
> Spray Pattern - Narrow
> Oring Top to Bottom / Center to Center without Height Adapter - 34.0mm

All high performance injectors will require ECU tuning for proper performance.
