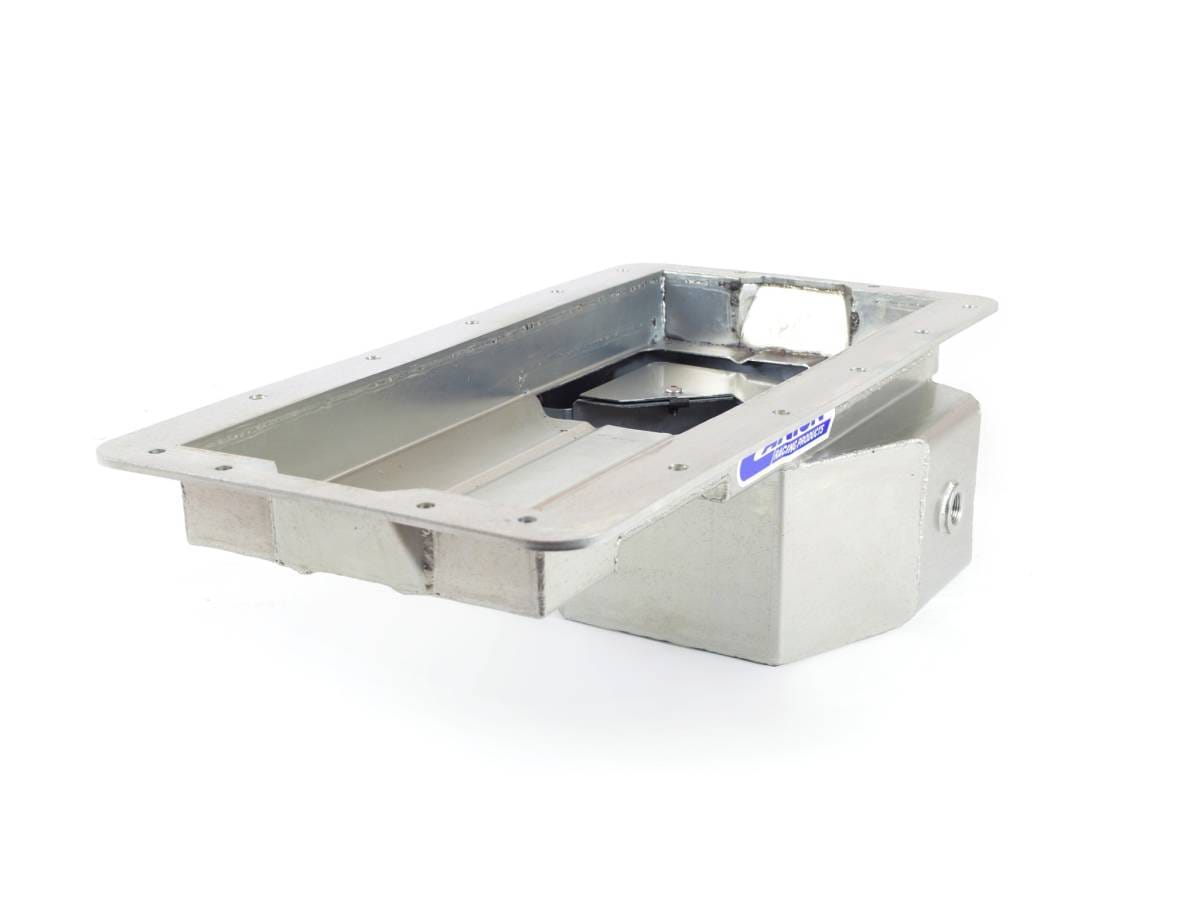

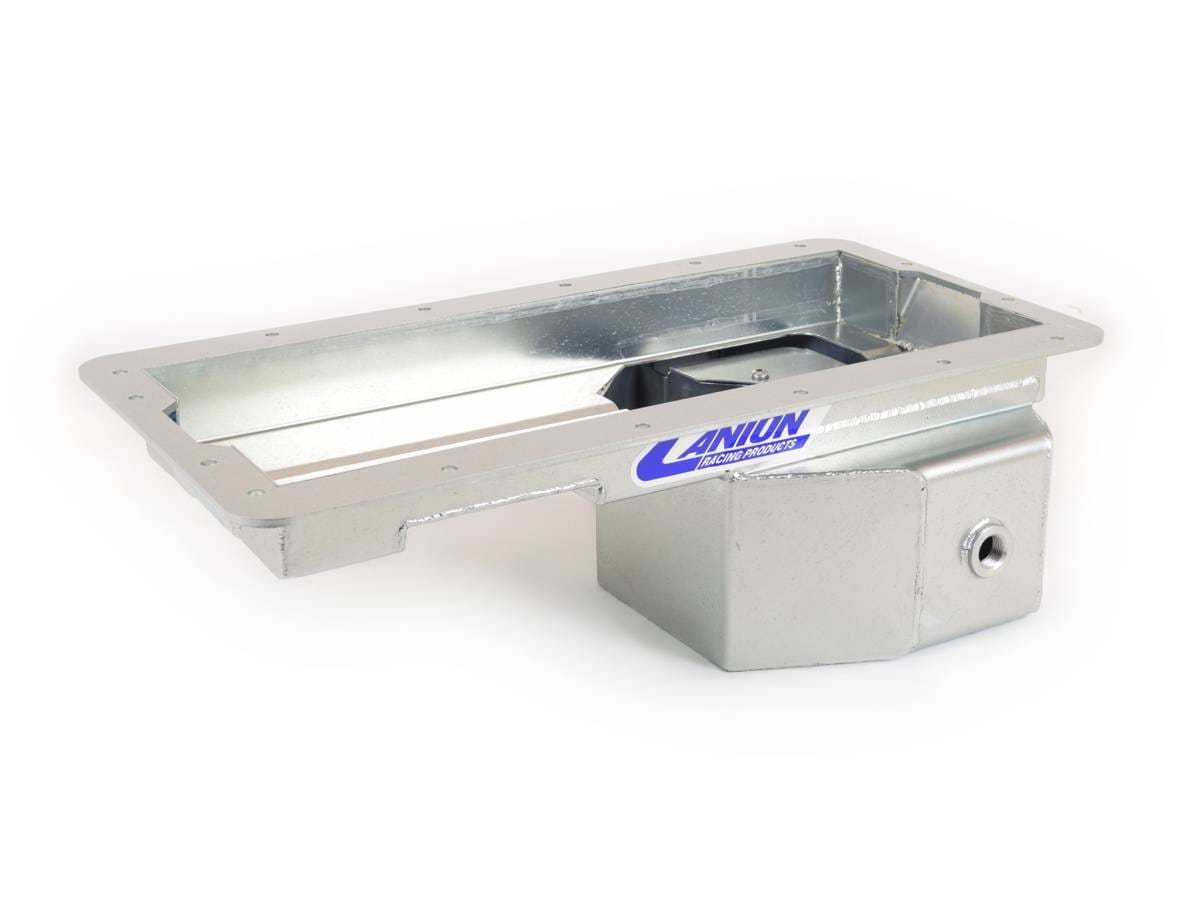

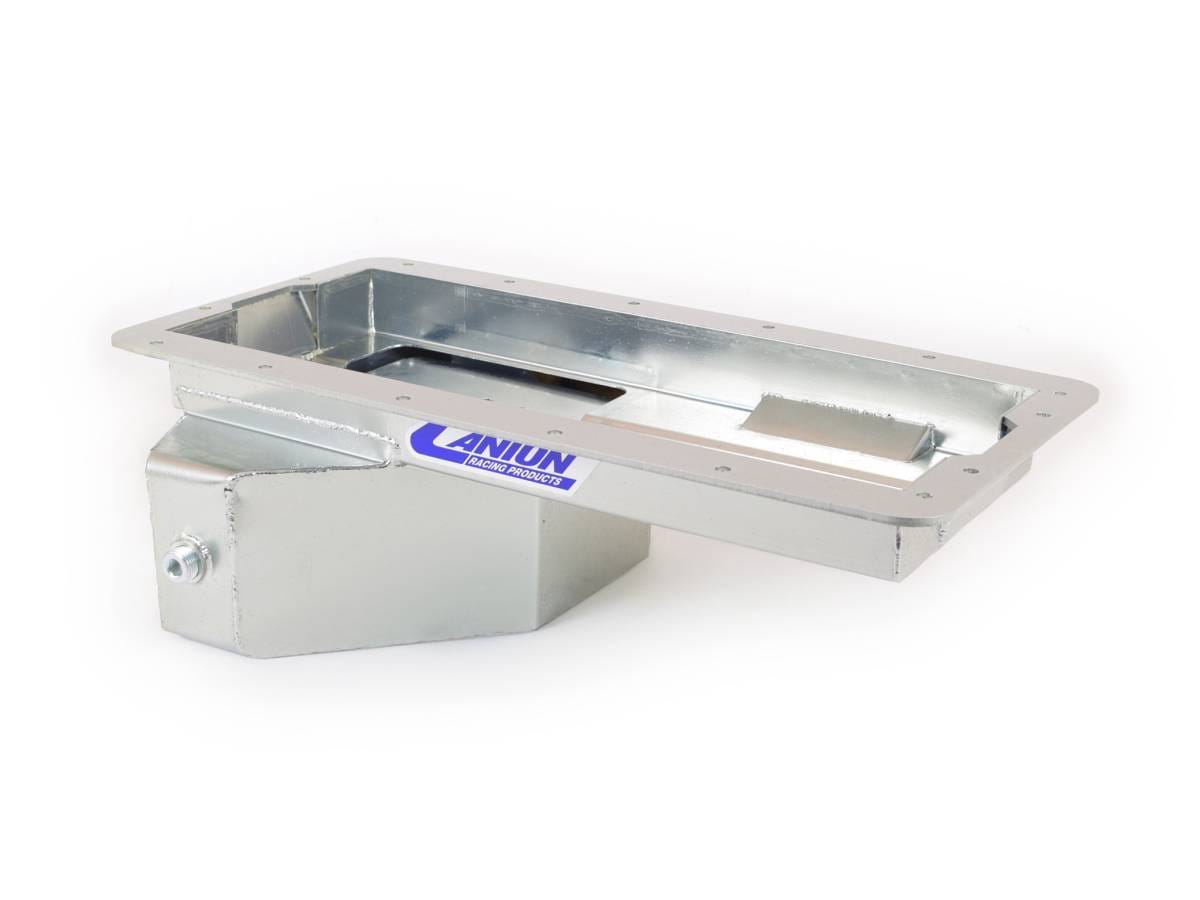

Ford Mustang Coyote 5.0l Road Race Rear T Sump Oil Pan

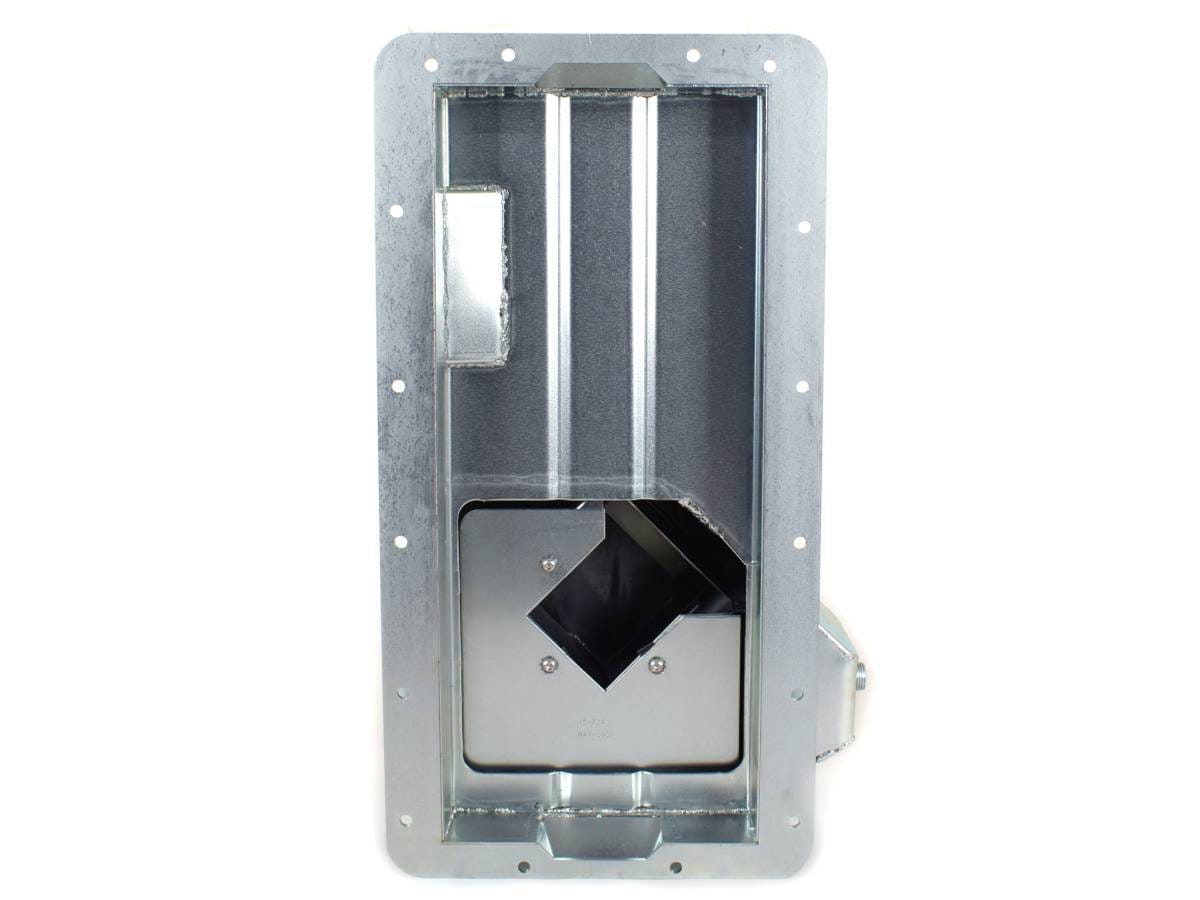

Canton's new 12-734 Ford 5.0 Coyote oil pan is designed for 96-04 and 05-12 Mustangs being used in road racing or street/strip applications. Our laser cut rail provides a strong, easy to seal surface. It's rear T sump design offers extra capacity without sacrificing ground clearance and includes a diamond shaped road race baffle assembly with four trap doors for great oil control under heavy driving conditions.

Note: Ford part #BR3Z6622A pickup required.

*Notice will not work with 21+ F-150 belt driven oil pump gears.
Features: This oil pan is designed for 5.0 Coyote Blocks and includes: 3/16" Lasercut Rail, Bolt In Anti-Slosh Baffle, Magnetic Drain Plug, 7 qt System Capacity, 1/2" NPT bung for temperature sensor, 20 mm bung for low oil warning sender (Plug required if sender isn't used) Style: Rear T-Sump Design offers extra capacity without sacrificing ground clearance Oil Pan Part #: 12-734 for Coyote 5.0L blocks Capacity: 7 Quarts Recommended Accessories: Dipsticks:
PART #: 20-850 Universal Dipstick Kit 1/4" N.P.T. Fitting
PART #: 20-854 Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting Oil Level Sender Port Plug:
PART#: 22-405 - 20mm Plug For Oil Level Sender Port
