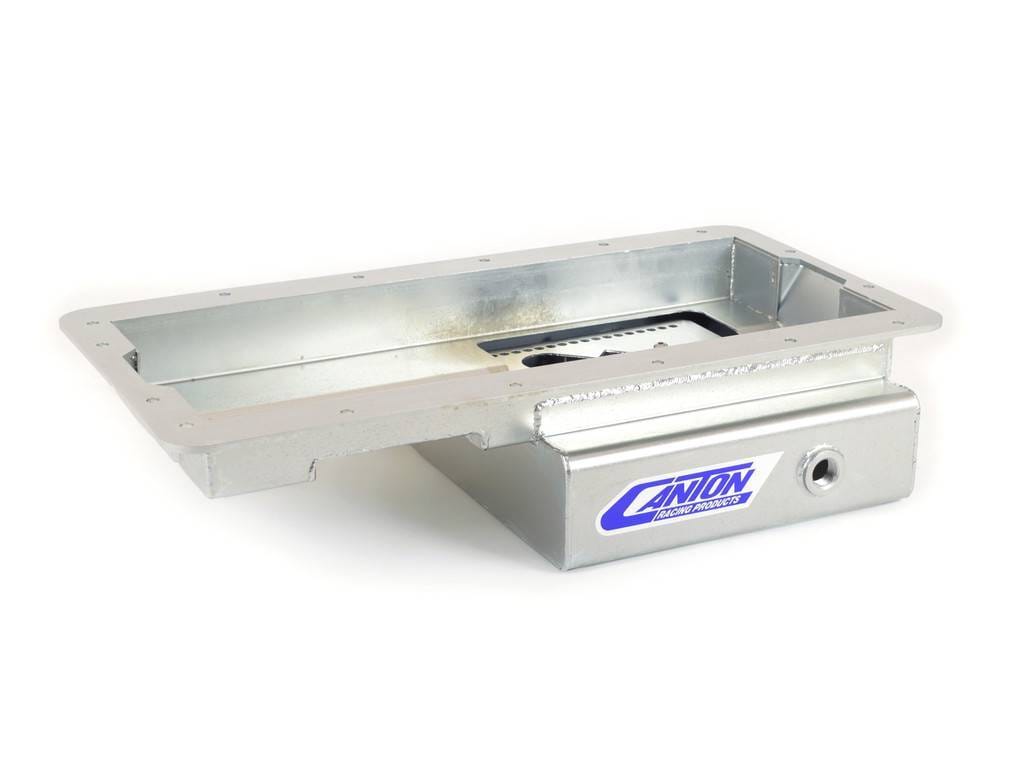

Ford Mustang Coyote 5.0l Road Race Kit Car Rear Sump Pan

Canton's new Ford 5.0 Coyote Gen 1 + Gen 2 oil pan is designed for kit car applications where ground clearance is limited. Like all Canton pans it is built with heavy gauge steel and is tig welded for strong leak free performance. Requires part #15-737 Rear Sump 5.0 Coyote Pickups. For Gen 3 Coyotes use part #20-937P36 Coyote Gen 3 Louvered Tray Pickup Combo For Oil Pan 15-736. Comes in silver finish. Requires: part #15-737 Rear Sump 5.0 Coyote Pickups. *Notice will not work with 21+ F-150 belt driven oil pump gears.
Features: This oil pan is designed for 5.0 Coyote Blocks and includes:
*1/2" NPT Temperature Bung
*Removable Windage/Anti-Slosh Baffle
*20mm Bung for Low Oil Warning Sender
*Designed for 5.0 Coyote Blocks
*Made In USA
*Tig Welded Oil Pan Capacity: 7 Quarts
Oil Pan Material: Steel
Oil Pan Finish: Silver Zinc Plated Recommended Accessories: 15-737 - Rear Sump 5.0 Coyote Pickup
20-937P36 - Coyote Gen 3 Louvered Tray Pickup Combo For Oil Pan 15-736 Gasket:
Stock

Install Instructions
