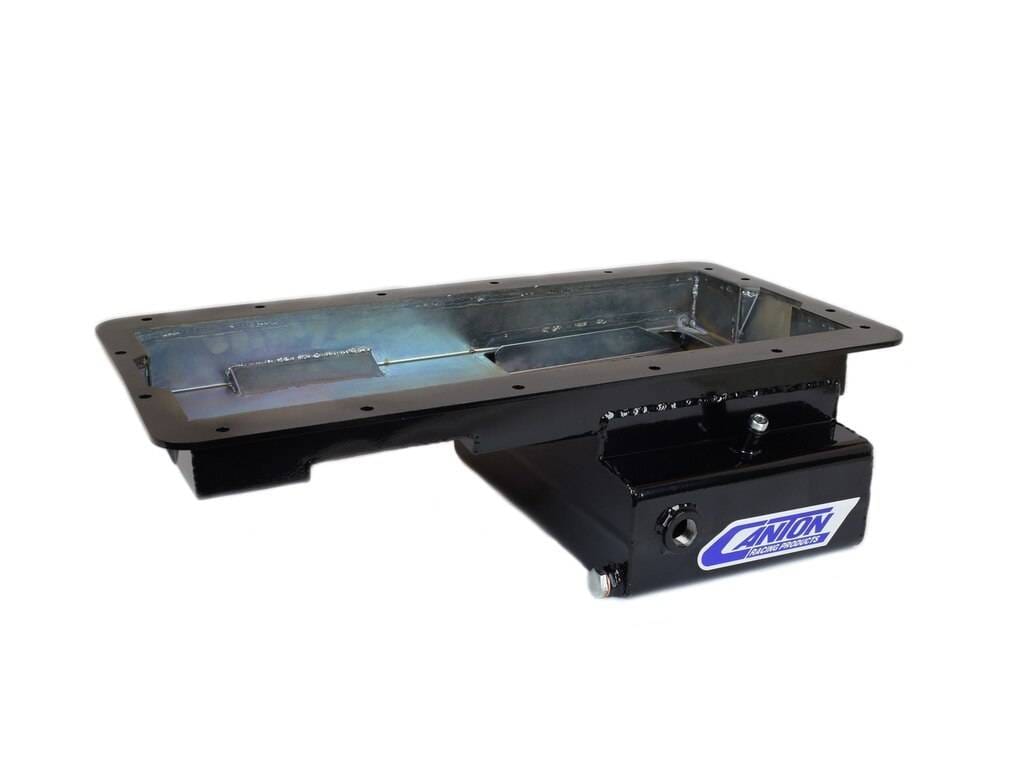

Ford Mustang Coyote 5.0l Canton Front T Sump Road Race Oil Pan - Black Powdercoated

Canton's new 15-738BLK Ford 5.0 Coyote oil pan is designed for early Ford chassis and others that required a front sump oil pan. The pan is designed with a T sump for extra capacity and is used in road race applications where ground clearance is important. It features a diamond shaped road race baffle assembly with four trap doors and a removable Windage/anti-slosh baffle. Note: Canton 15-739 pickup required. This is the black powdercoated version. *Notice will not work with 21+ F-150 belt driven oil pump gears.
FEATURES: This oil pan is designed for 5.0 Coyote Blocks and includes:

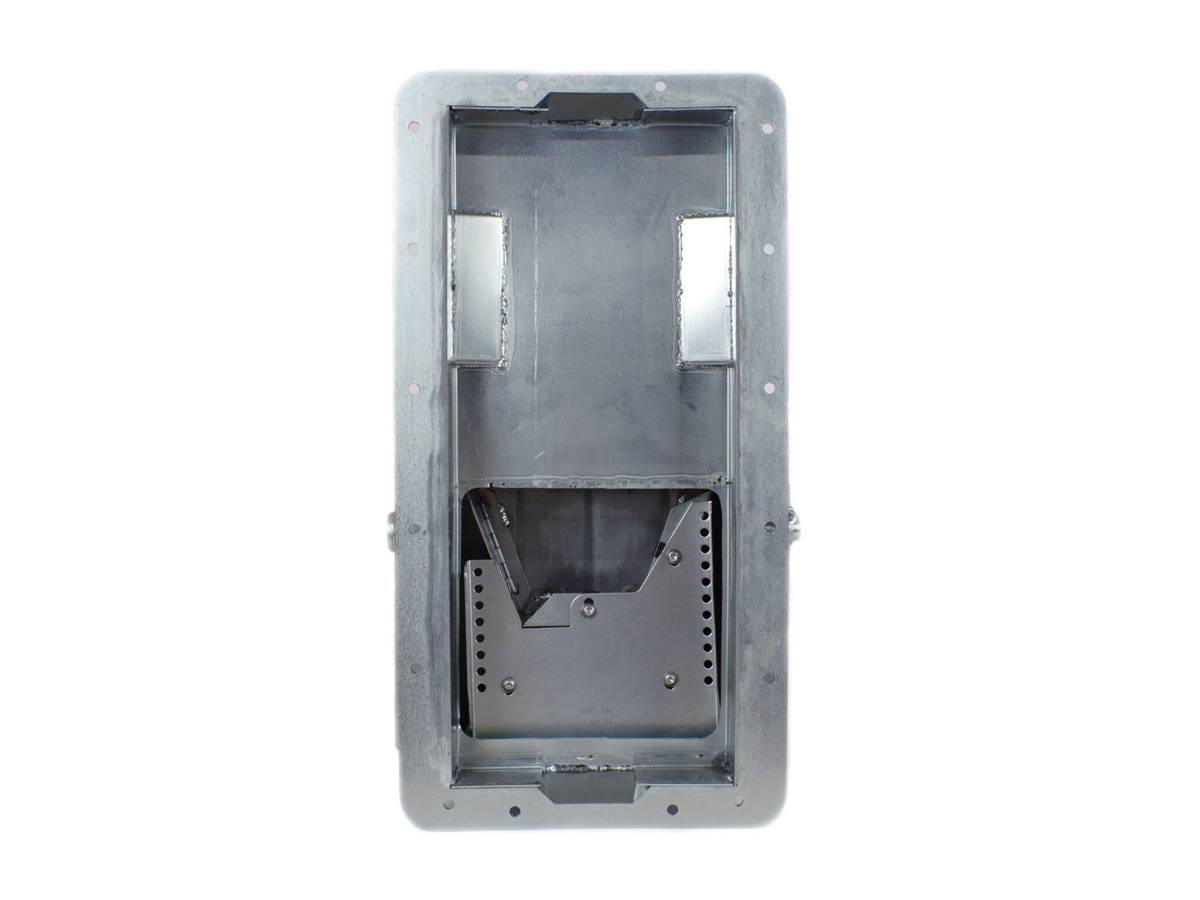

*Diamond Shape Road Race Baffle Assembly With Four Trap Doors
*Removable Windage/Anti-Slosh Baffle
*1/2" NPT Temperature Bung
*20mm Bung for low Oil Warning Sender
*Made In USA
*Tig Welded

STYLE: T style front sump pan for increased oil capacity and oil control in early Mustangs or cars that need a front sump.

OIL PAN PART #: 15-738BLK for Coyote 5.0L blocks. Black Powdercoated.

RECOMMENDED ACCESSORIES:

OIL PUMP PICKUP:
PART #: 15-739 Pickup for 5.0 Coyote Front Sump Pan

DIPSTICKS:
PART #: 20-850 Universal Dipstick Kit 1/4" N.P.T. Fitting
PART #: 20-854 Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting

Pan Installation - Coyote.pdf
