Eagle Talon Turbo 4g63t 750cc Fuel Injectors

These RC Engineering 750cc Low Resistance Peak and Hold fuel injectors are flow matched and will fit every model, engine, type or style for the following vehicles:

ALL Eagle Talon Turbo (4G63T)

Part # PL4-750

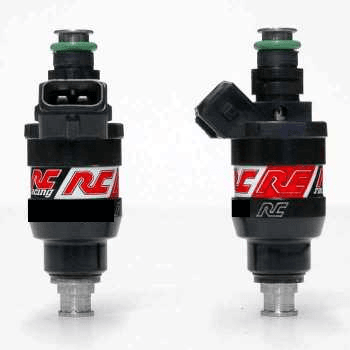

Included: 4 Denso style injectors and flow sheets. The photo is an example of a similar set.

Note:
If you would like new OBD1 Bosch EV1 center notch style injector clips they are available - additional $19.95.

Size Calculation
To determine what size injectors you should use, please visit : RC Engineering's Technical Notes

Specifications
Flow Rate in CC per minute: 750CC/min @ 43.5 PSI
Flow Rate in LB per hour: 71LBS/HR @ 43.5 PSI
Resistance: 2.5 ohms
Voltage: 8-15 Volts, nominal 13.5 Volts
Amperage: Peak 4.0 Amps/ Hold 1.5 Amps
Pressure: Min 30PSIG/ Max 100PSIG
Part Number: PL4-750
Spacers/O-rings Included: No
Warranty: 1 year warranty!
