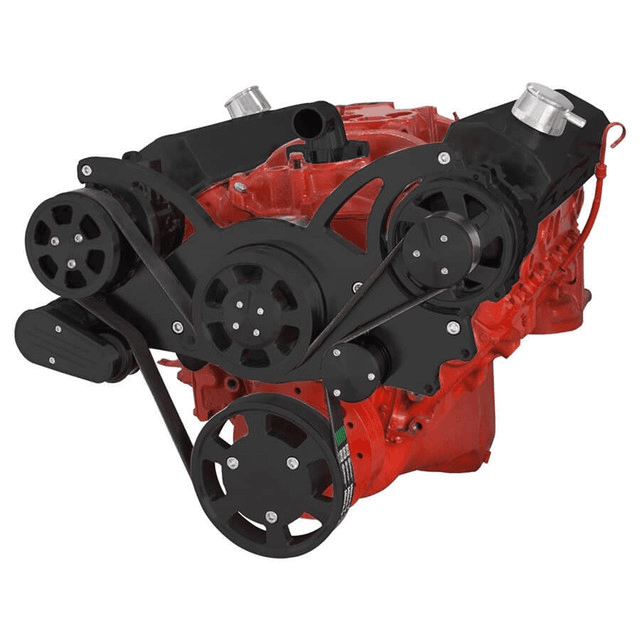

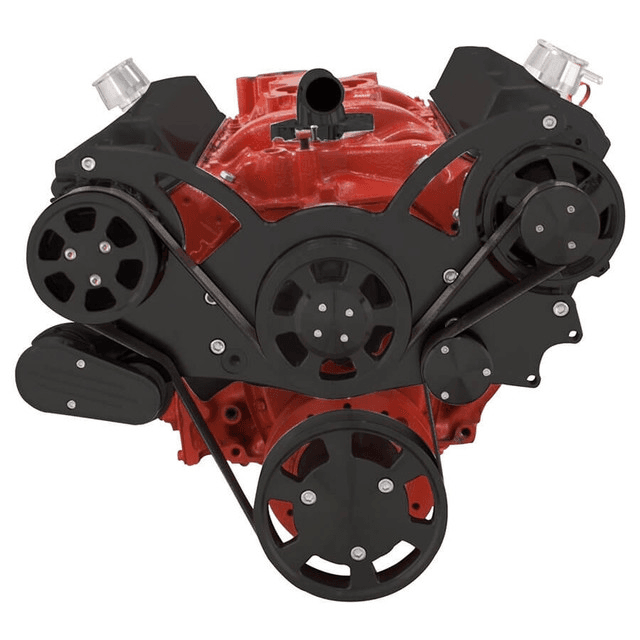

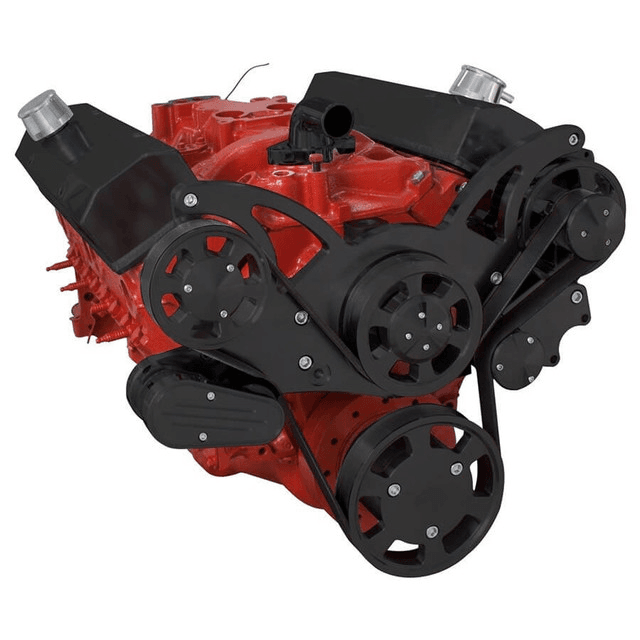

CVF Chevy Small Block Serpentine System with AC & Alternator (All Inclusive) - Black

All Inclusive WRAPTOR 8 Track Serpentine System for Chevy Small Block engines with 140 Amp alternator and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slipping compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump. Note: This kit will fit 283, 350, and 400 Small Block Chevy Engines. See the blue product options button to configure your system!
Kit Includes (All Inclusive):
High Flow Aluminum Water Pump - Black Powder Coated
140 Amp Black Powder Coated 1-Wire CS130 Alternator
Black Powder Coated AC Compressor
AC Compressor Clutch Cover - Black Bight Dip Anodize Billet Aluminum
Gates Premium Green Strip 8 Rib Belt
Water Pump Pulley & Cover - Black Bight Dip Anodize Billet Aluminum
Crank Pulley - Black Bight Dip Anodize Billet Aluminum
Crank Pulley Spacer - Billet Aluminum
Alternator Pulley & Cover - Black Bight Dip Anodize Billet Aluminum
One Piece Billet Aluminum Bracket - Black Bight Dip Anodize Billet Aluminum
Universal Alternator Fan - Black Bight Dip Anodize Billet Aluminum Specs:
Power Steering Included: No
AC Included: Yes
Mounting Position: Mid-Mount
Finish: Black
Belt Type: Serpentine 8 Rib
Water Pump Type: Mechanical
Water Pump: Short
Water Pump Rotation: Reverse
Engine Fitment : 283, 350, and 400 Small Block Chevy Engines Application Notes:
Upgrade to AC Only Requires Compressor Purchase.
Works with either Mechanical or Electric fuel Pump
Works with either Mechanical or Electric fan (may require long fan spacer)
Works with either Standard or Camel Hump / Fuelie Heads
Power Steering Lines from pump to reservoir not included
Reverse Rotation Water Pump
Compatible with Hydroboost ($275 option)
