CVF BBC Engine V-Belt Bracket Systems

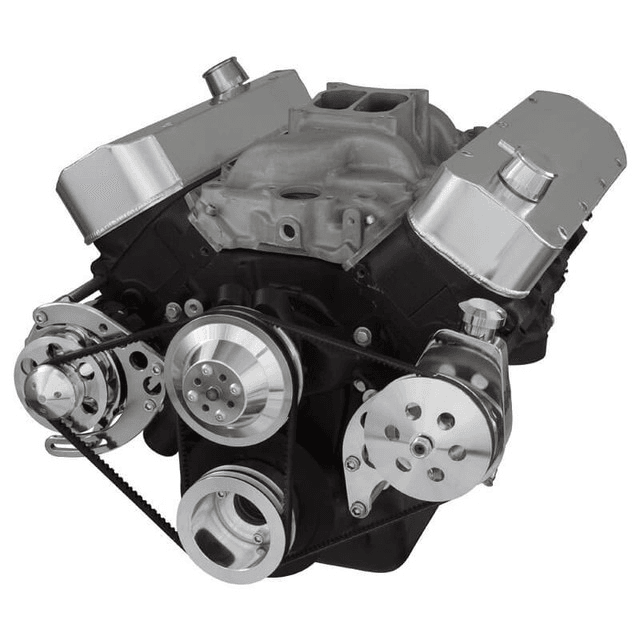

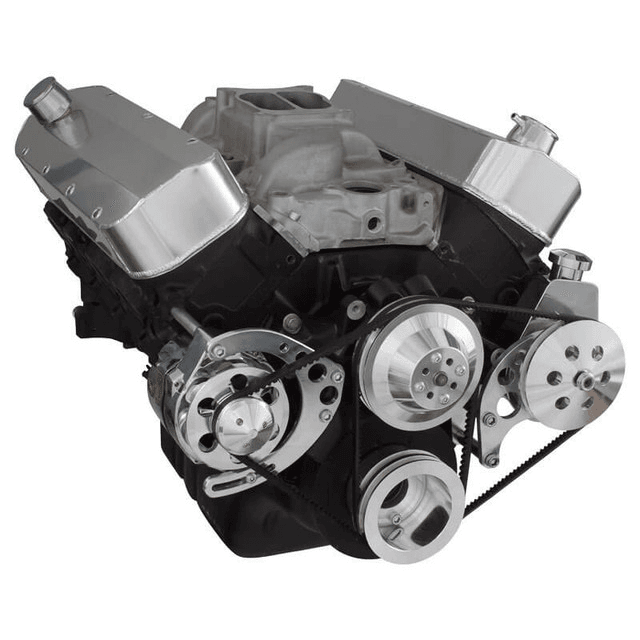

CVF Chevy Big Block V-Belt System with Power Steering Brackets, For Long Water Pump - Polished
Description
Mounts Saginaw P Series Power Steering pump low on driver side and puts alternator on the passenger side in a mid-mount configuration. Uses standard Chevy long water pump.
Note: This kit will fit 396, 427, & 454 Big Block Chevy Engines. Power Steering Pump, Alternator & High Flow Water Pump Not Included
See the blue product options button to configure your system!
Kit Includes:
2 Groove Water Pump Pulley
2 Groove Crank Pulley
1 Groove Alternator Pulley
Passenger Side Alternator Bracket
Driver Side Power Steering Bracket
Power Steering Pulley (Keyway Style)
ALTFAN - Universal alternator fan
ALL Hardware
Specs:
Alternator Position: Mid - Passenger
Power Steering: Yes - Saginaw
Air Conditioning: None
Finish: Polished
Belt type: V-Belt
Water Pump Type: Mechanical
Water Pump: Long
Water Pump Rotation: Standard
Engine Fitment : 396, 427, & 454 Big Block Chevy Engines
