CVF BBM Serpentine System with Power Steering & Alternator For High Flow Water Pump - Black W/ Carbon Fiber Inlay (All Inclusive)

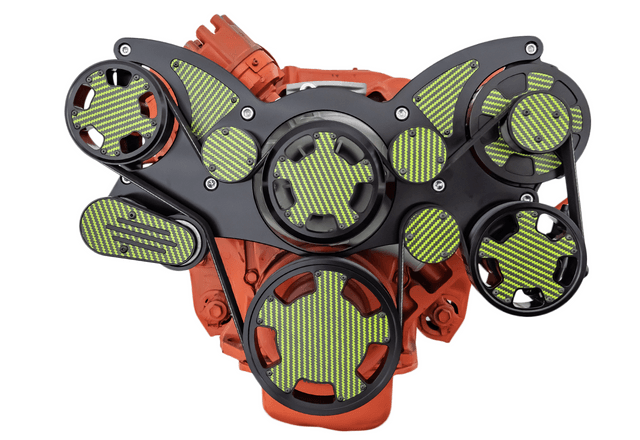

the wraptor 8 Track Serpentine System for Big Block Chrysler engines with 140 Amp alternator and GM Type 2 Power Steering Pump. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slippage compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump. Note: This kit will fit 383, 400, 426 & 440 Big Block Mopar Engines See the blue product options button to configure your system!
Kit Includes:
High Flow Aluminum Water Pump
Water Pump Housing
140 Amp Black 1-Wire CS130 Alternator
Plated Aluminum GM Type II Power Steering Pump
Remote Mount Reservoir with Bracket
Gates Premium Green Strip 8 Rib Belt

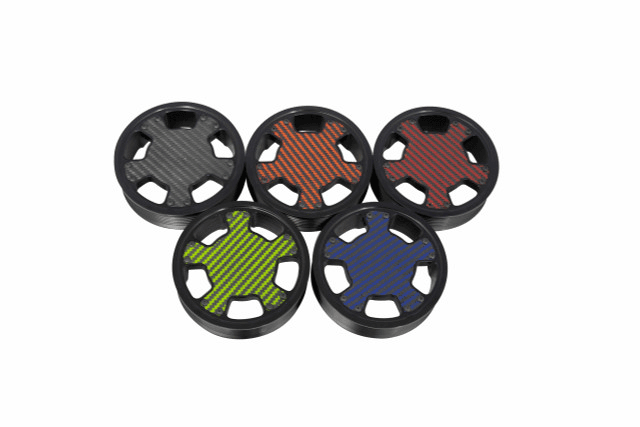

Water Pump Pulley & Cover
Crank Pulley
Crank Pulley Spacer
Alternator Pulley & Cover
Power Steering Pulley
One Piece Billet Aluminum Bracket
AC Delete Idler Pulley & Bracket
Universal alternator fan
Specs:
Finish: Stealth Black W/ Carbon Fiber Inlay
Belt Type: Serpentine 8 Rib
Water Pump Type: Mechanical
Water Pump Rotation: Standard
Engine: 383, 400, 426 & 440 Big Block Mopar
Power Steering Included: Yes
AC Included: No
Mounting Position: Mid-MountNotes:
Upgrade to AC Only Requires Compressor Purchase.
Works with either Mechanical or Electric fuel Pump
Works with either Mechanical or Electric fan (may require long fan spacer)
Works with either Short or Tall Deck Engines
Requires Lower Radiator Hose on Driver Side
Requires capped heater bypass
Power Steering Lines from pump to reservoir not included
Hydroboost upgrade available

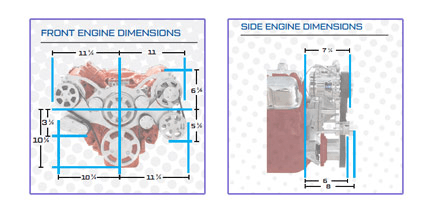

Saginaw Power Steering Pump extends right side dimension from water pump pilot to 16" (initially 11 1/4").
