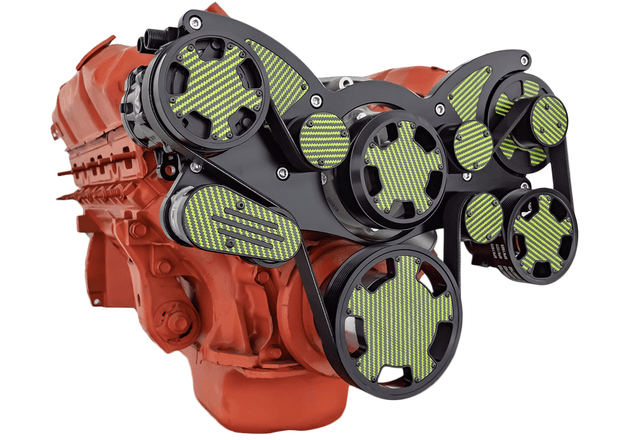

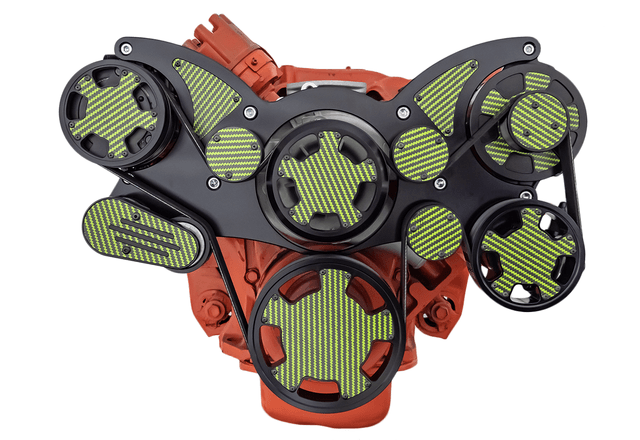

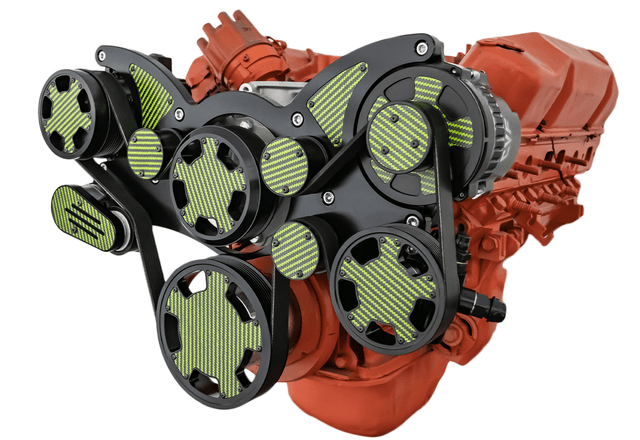

CVF BBM Serpentine System with AC, Power Steering & Alternator For High Flow Water Pump - Black W/ Carbon Fiber Inlay (All Inclusive)

the wraptor 8 Track Serpentine System for Chrysler Big Block engines with 100% Authentic Carbon Fiber Inlay. This kit comes with 140 Amp alternator, GM Type II Power Steering Pump and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slippage compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump. Note: This kit will fit 383, 400, 426 & 440 Big Block Mopar Engines See the blue product options button to configure your system!
Kit Includes:
High Flow Aluminum Water Pump
Water Pump Housing
140 Amp Black 1-Wire CS130 Alternator
AC Compressor
AC Compressor Clutch Cover
Aluminum GM Type II Power Steering Pump
Remote Mount Reservoir with Bracket
Gates Premium Green Strip 8 Rib Belt
Water Pump Pulley & Cover
Crank Pulley
Crank Pulley Spacer
Alternator Pulley & Cover
Power Steering Pulley
One Piece Billet Aluminum Bracket
Universal Alternator Fan
Specs:
Finish: Stealth Black W/ Carbon Fiber Inlay
Belt Type: Serpentine 8 Rib
Water Pump Type: Mechanical
Water Pump Rotation: Standard
Engine: 383, 400, 426 & 440 Big Block Mopar
Power Steering Included: Yes
AC Included: Yes
Mounting Position: Mid-MountNotes:
Works with either Mechanical or Electric fuel Pump
Works with either Mechanical or Electric fan (may require long fan spacer)
Power Steering Lines from pump to reservoir not included
Hydroboost upgrade available

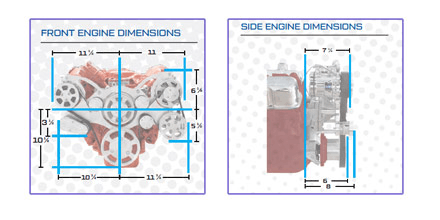

Saginaw Power Steering Pump extends far right dimension to 16" from water pump pilot center (originally 11 1/4")
Click here for 426 Hemi Applications
