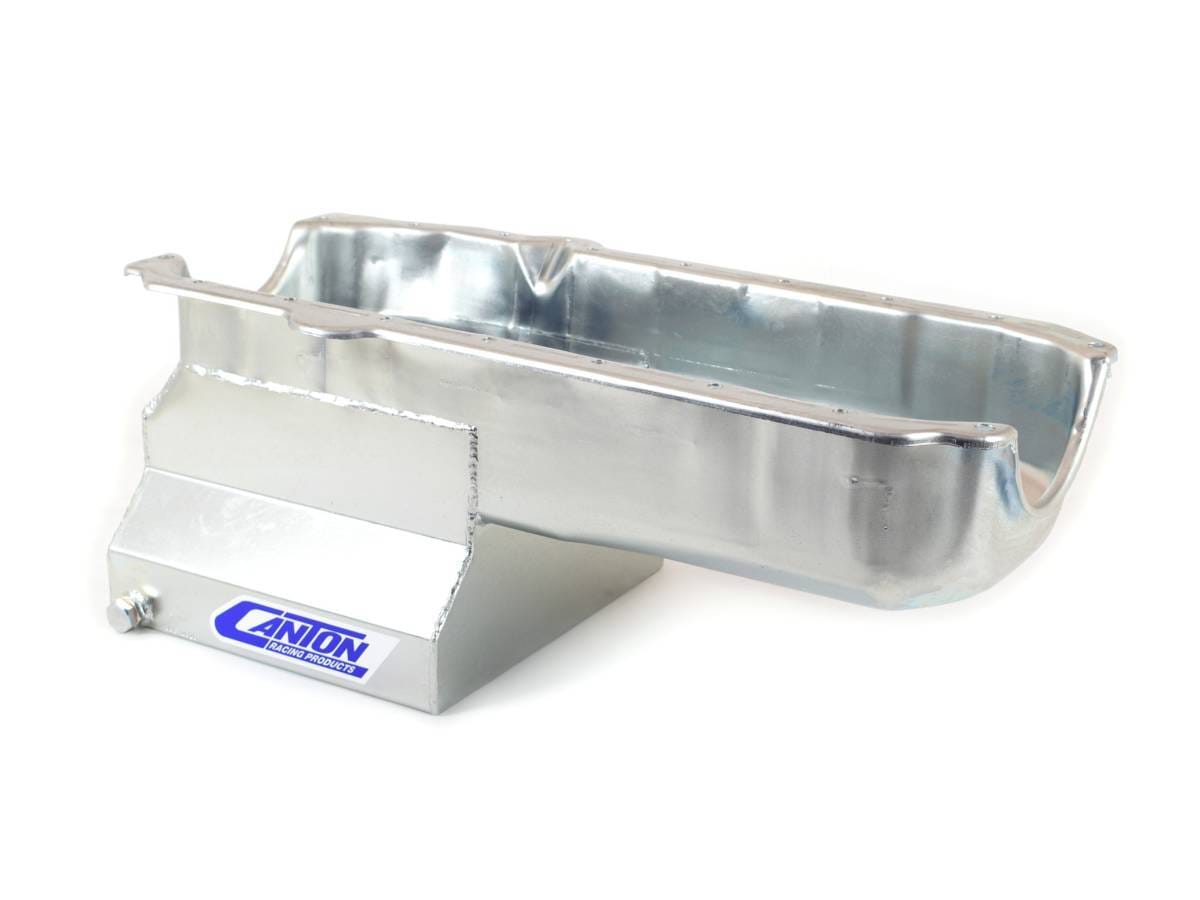

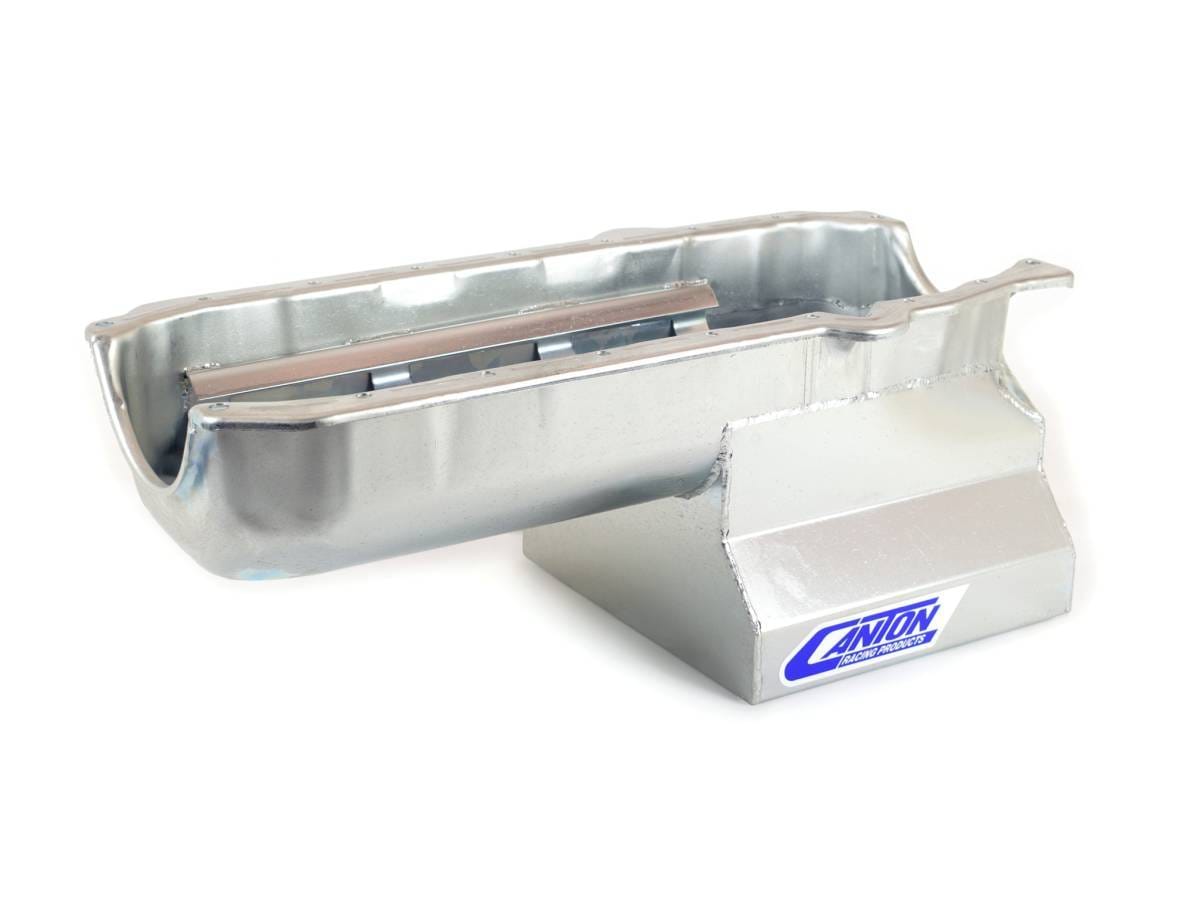

Canton "T" Sump Drag Race Chevy SBC Pre-1980 Blocks Oil Pan - Silver

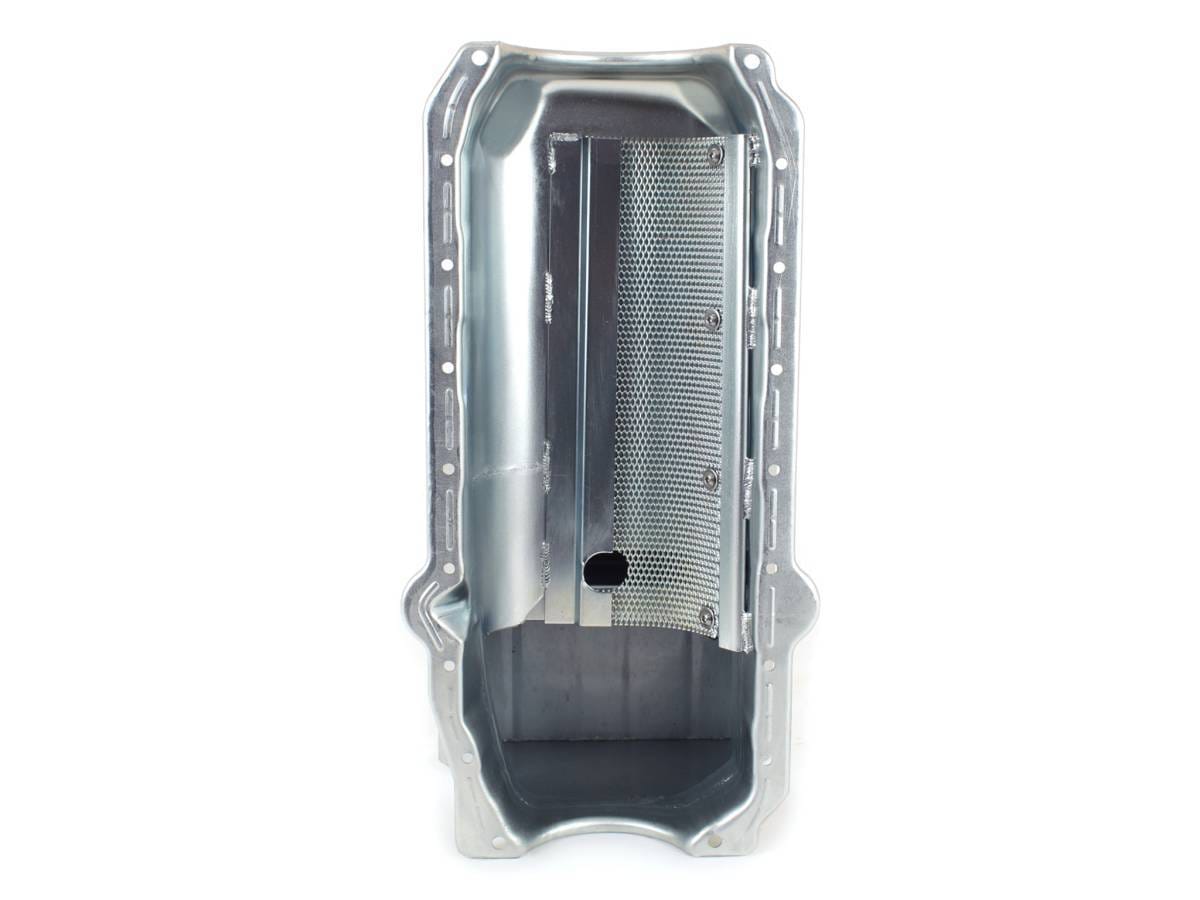

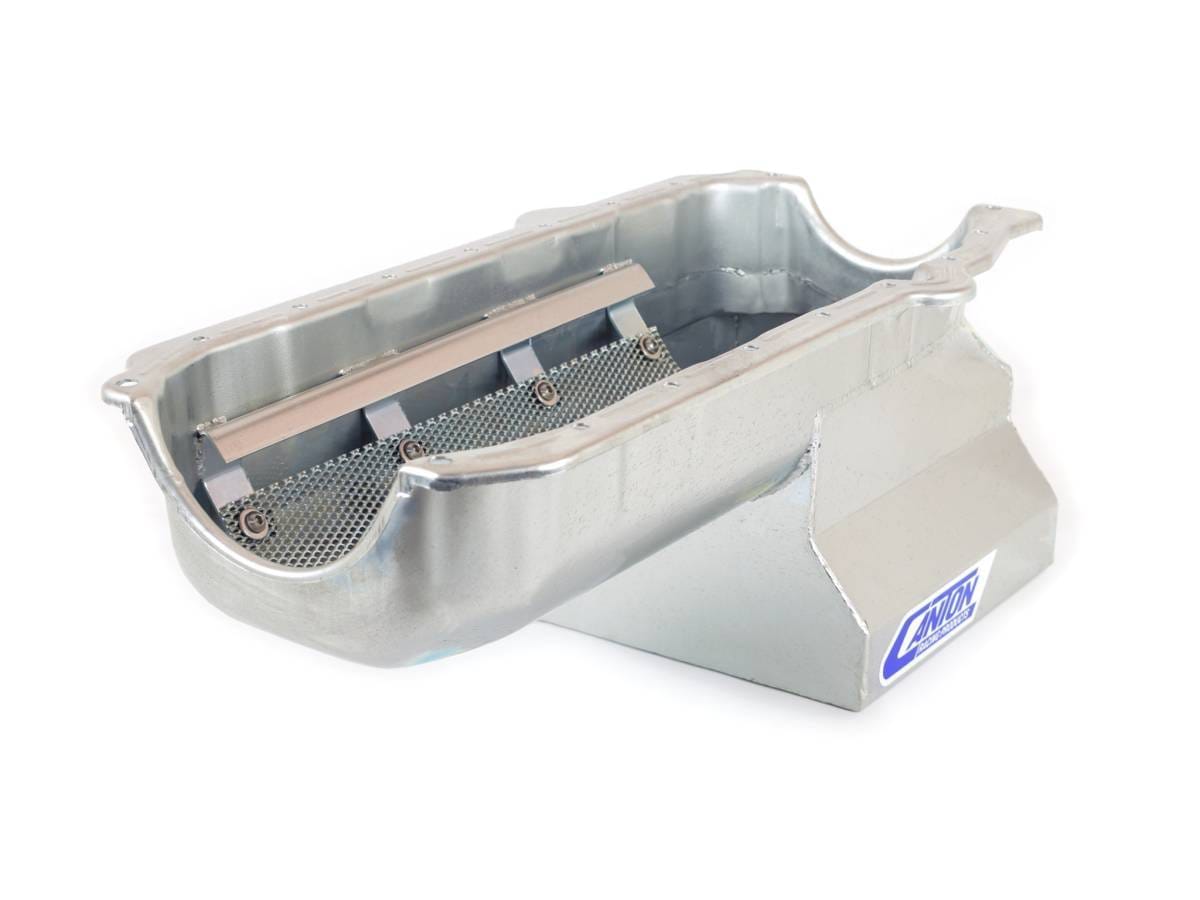

This SBC "T" sump drag race oil pan is for pre-’80 blocks with a left side dipstick. It has a 8-1/2" deep, 9-1/2" long by 10-1/2" wide sump and an 8 qt system capacity. The pan features a crank scraper and windage tray combination designed to maximize power, a trap door baffle for oil control, and a magnetic drain plug.

Note: This pan requires one of Cantons pickups.
FEATURES: The pan features a crank scraper and windage tray combination designed to maximize power, a trap door baffle for oil control, and a magnetic drain plug.

STYLE: Clears a 3.875 stroke with a steel rod.

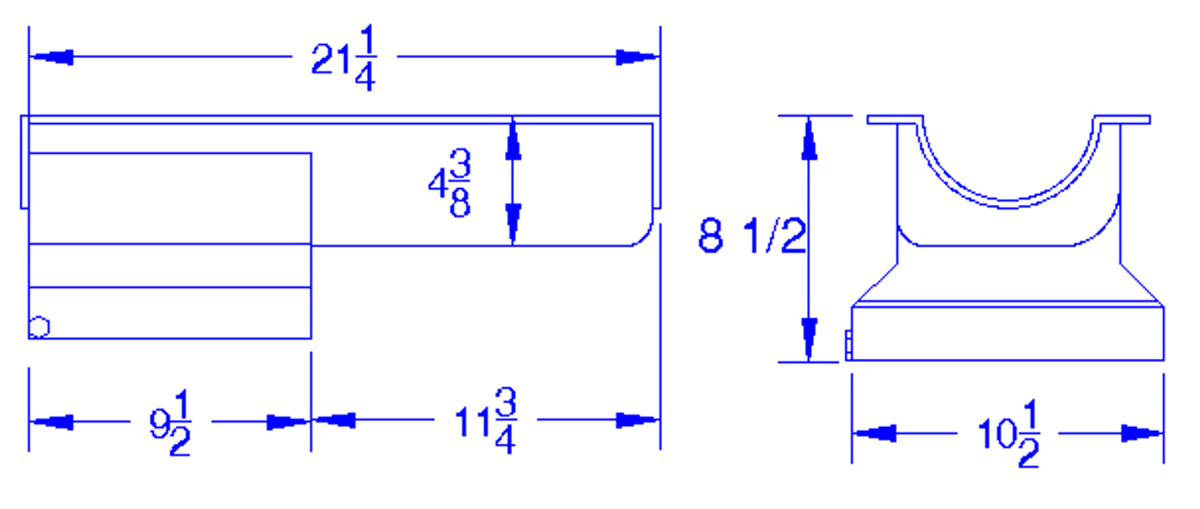

SIZE: It has a 8-1/2" deep, 9-1/2" long by 10-1/2" wide sump and an 8 qt system capacity.

OIL PAN PART #: 13-100 Canton "T" Sump Drag Race Chevy SBC pre-’80 Blocks Oil Pan.

RECOMMENDED ACCESSORIES:

OIL PUMP PICKUPS:
PART #: 20-060 for SB Stand. Vol. Pumps M55 & M55A.
PART #: 20-090 for SB High Vol. Pumps M55HV.
PART #: 20-095 for SB High Vol. w/ 3/4" tube M155HV.

GASKETS:
PART #: 88-100 Gasket Set for Pre-1980 SBC blocks.
