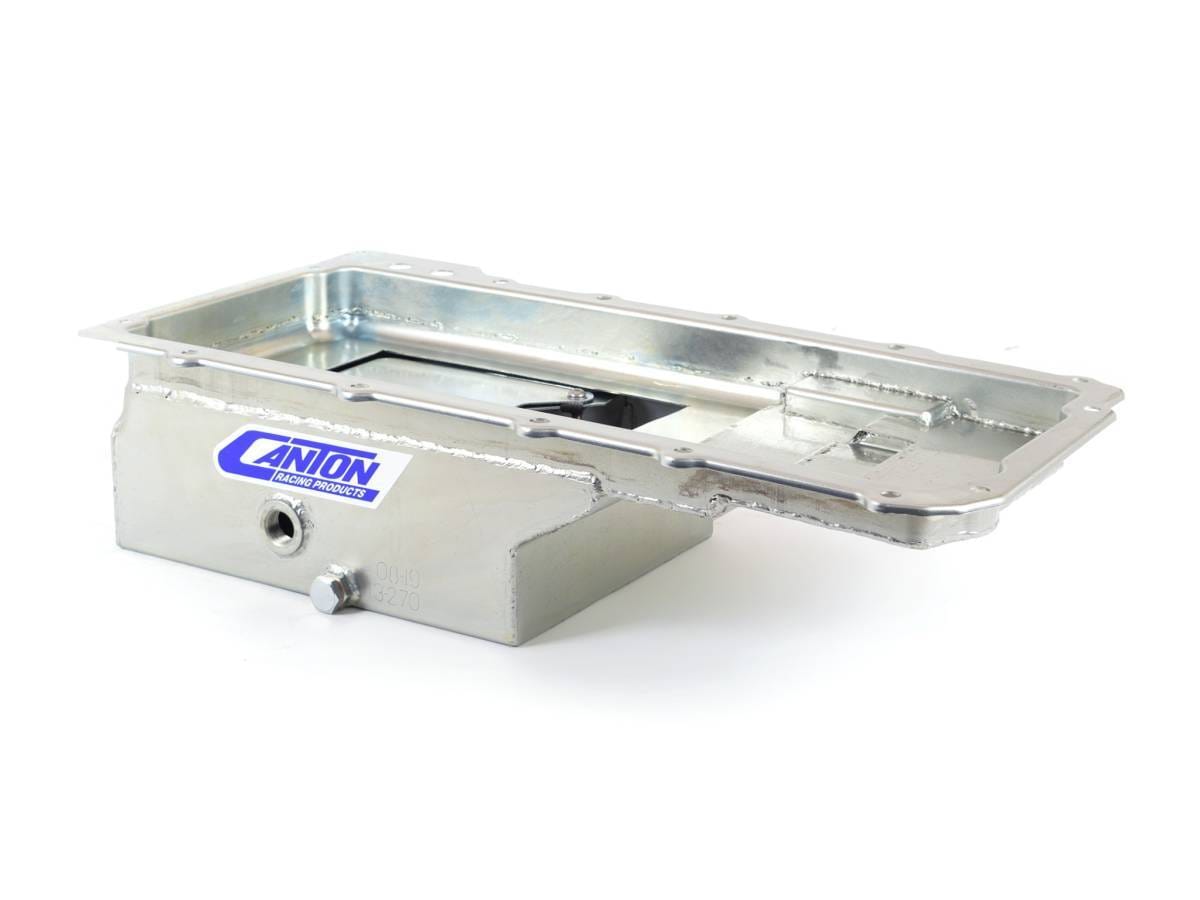

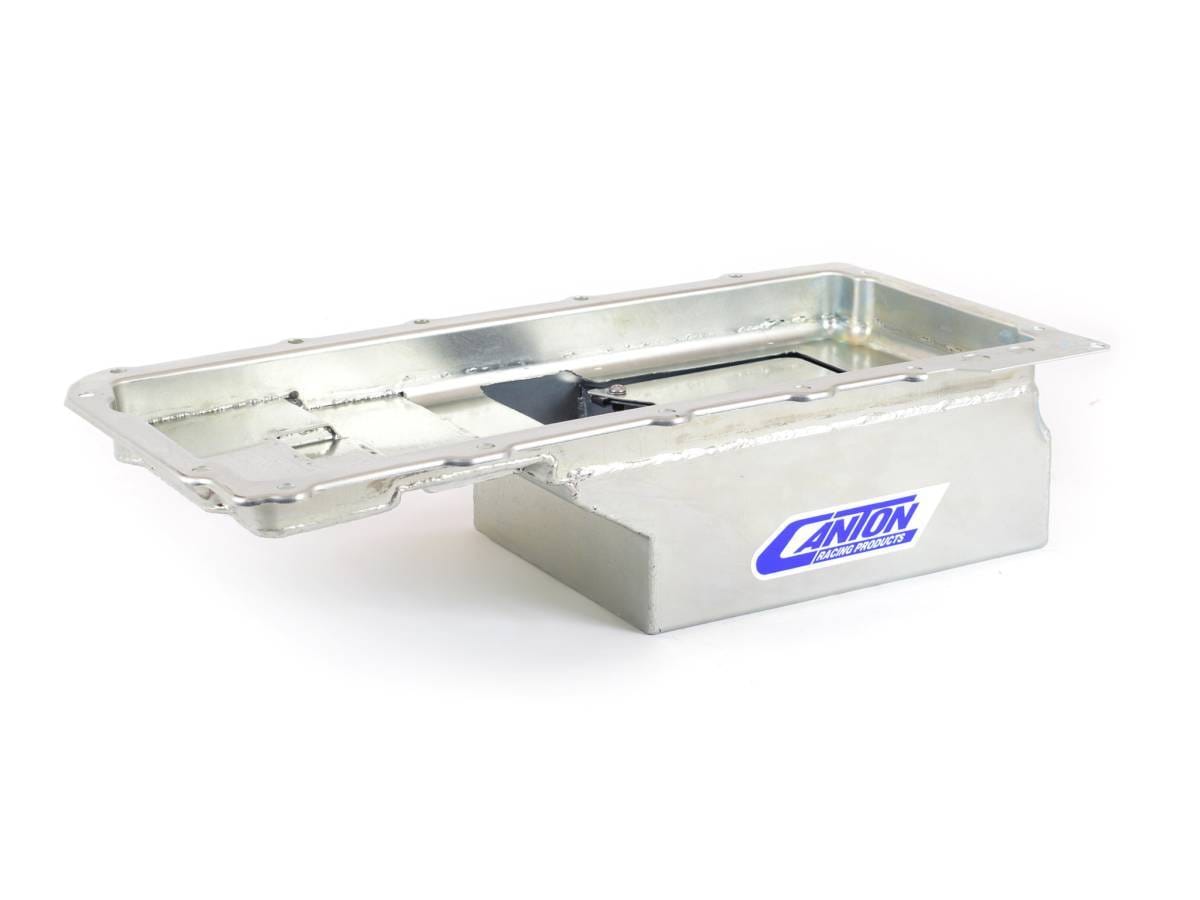

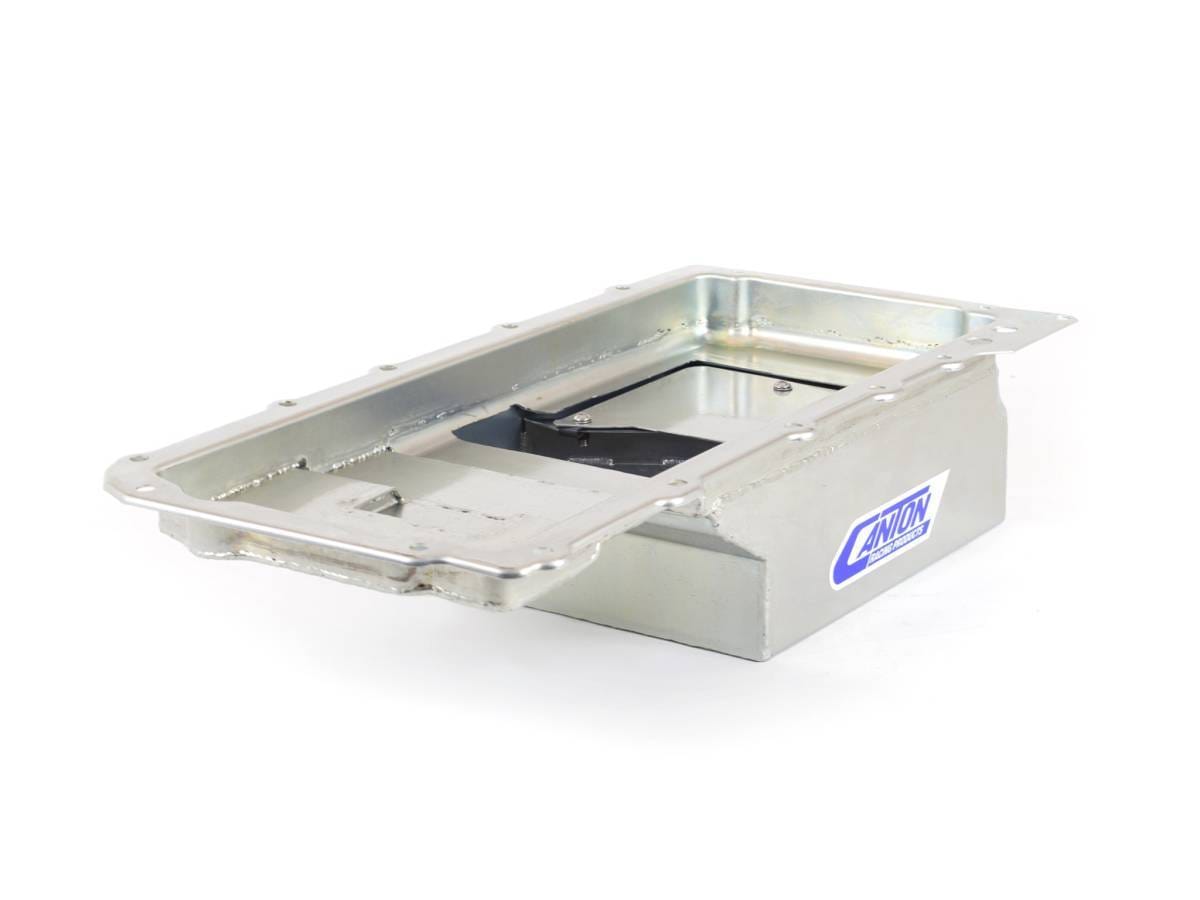

Canton Drag Race GM LS1-LS6 1998+ F-Body Oil Pan

This pan is for GM LS1/LS6 powered cars that need a rear sump drag race oil pan and owners of 98+ F-Body chassis looking to install a GM LS1/LS6 engine in their car.

Note: Use GM part #12558251 F-Body Pickup with this oil pan. Requires our LS1 Filter Adapter (#22-630 or #22-632) or Filter Mount (#22-631). Will not fit on LS Next 2 blocks.

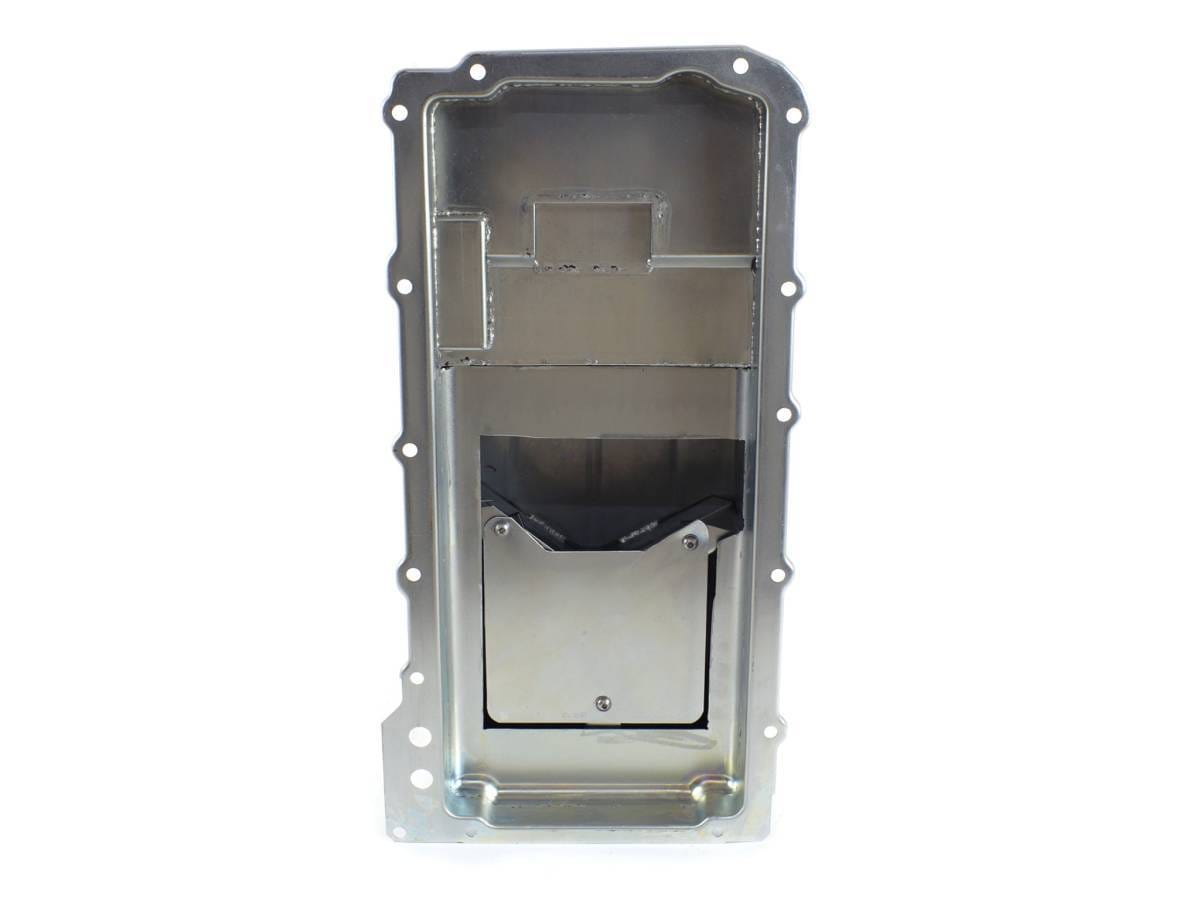

FEATURES: The pan features a Drag Race Trap Door Baffle Assembly, a Removable Windage Anti-Slosh Baffle, a Provision for 20mm oil temperature sensor, a Magnetic Drain Plug, Works with OEM windage tray #12558253

STYLE: Clears a 4.25" stroke with steel rods.

SIZE: It has a 5-1/4" deep by 10-1/2" long sump and a 6 qt. system capacity.

OIL PAN PART #: 13-270 Canton Drag Race GM LS1-LS6 1998+ F-Bodys.

RECOMMENDED ACCESSORIES:
PART #: 22-620 - Billet Aluminum Spin-on Filter Adapter
PART #: 22-405 - 20mm Plug(needed if not using low oil sender

GASKETS:

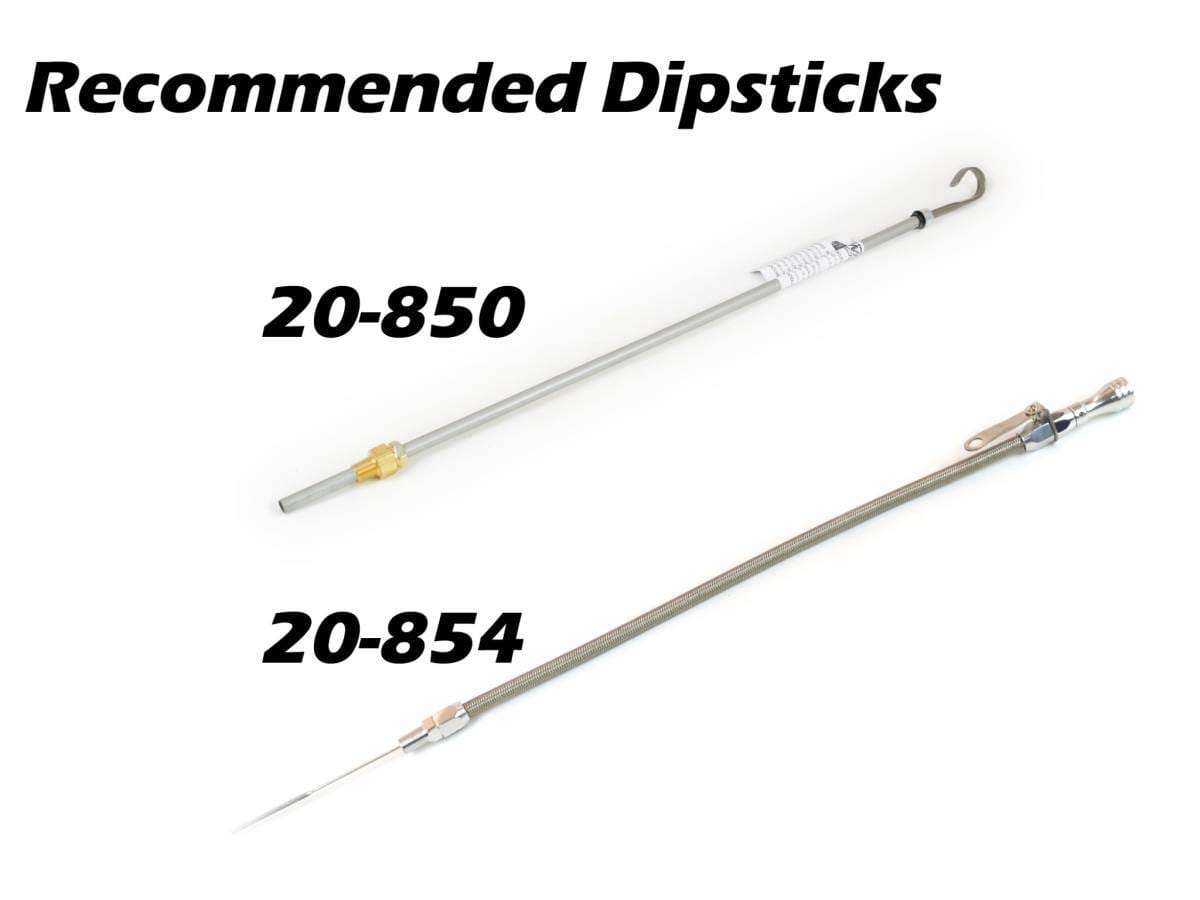

PART #: OEM Gasket OIL DIPSTICK:
PART #: 20-850 - Universal Dipstick Kit 1/4” N.P.T. Fitting
PART #: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
