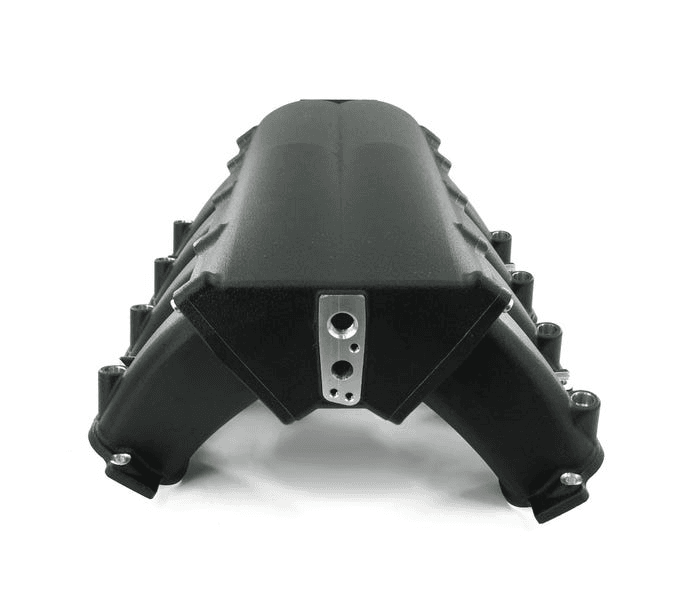

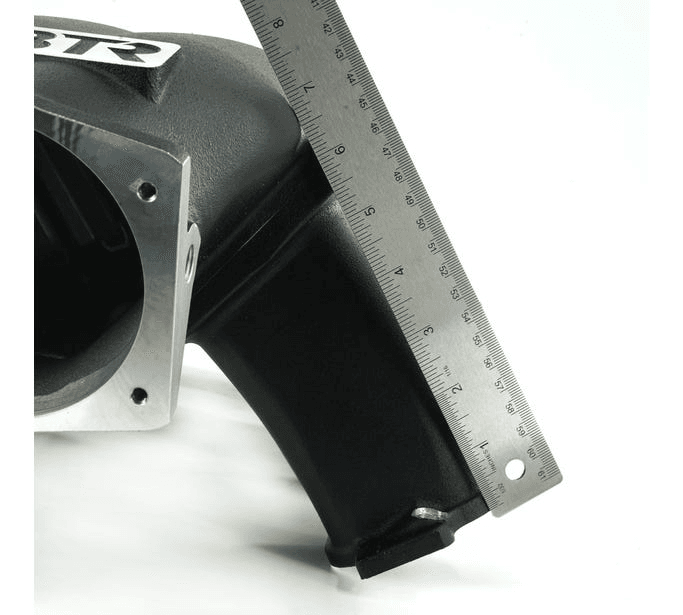

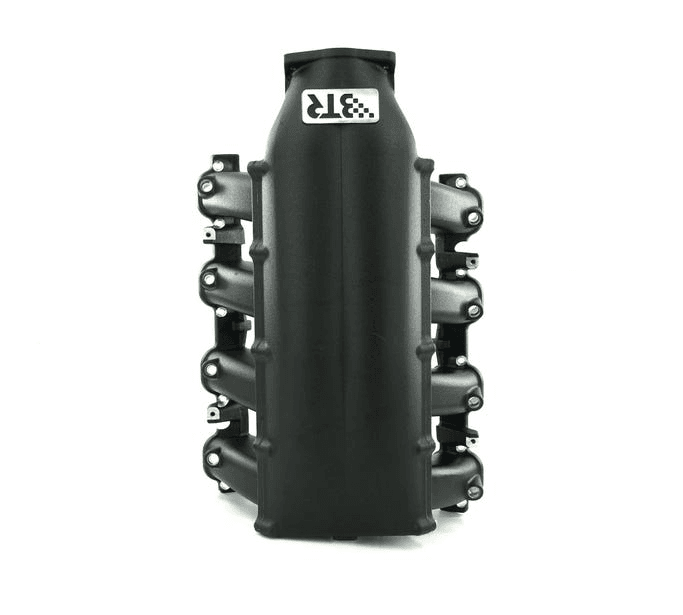

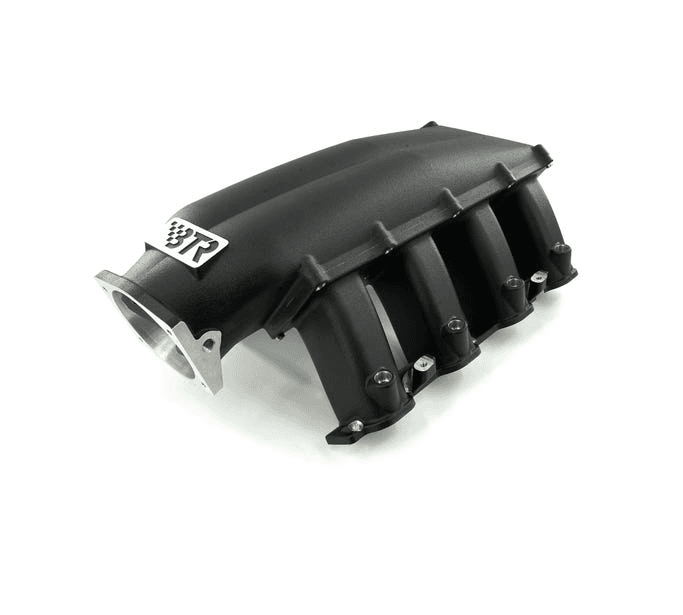

Btr Gen V Lt Trinity Cast Aluminum Mid-Length Intake Manifold W/ Injector Holes - Black Finish

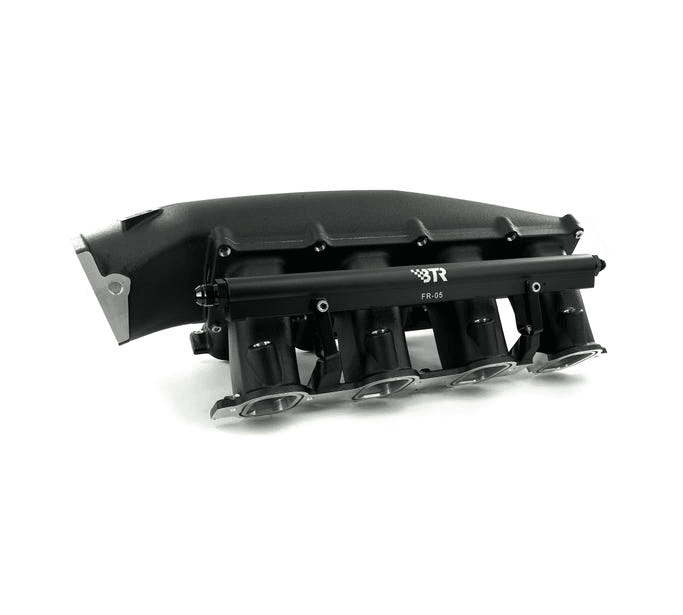

The proven BTR TrInity intake manifold now comes in a mid-length runner option! The 3-piece design allows for the ultimate in application flexibility. It is similar in concept to billet intakes costing thousands more, and has an optimum operating range of 3500-7500 rpm. The design incorporates 2 runners and an interchangeable plenum. The seal is generated by 8 entrapped o-rings at the runner/plenum interface, and is clamped by 20 -M6 Stainless steel socket head cap screws. The port seals are SAE o-rings seated in a dovetailed o-ring groove. Both the port mouth radius and the port match is CNC machined. The Trinity incorporates 2-1/4 -27 NPT ports on the side of the throttle body boss and a 3/8-18” NPT on the rear. The manifold comes semi-assembled and includes all the hardware required to bolt it on. Note: Optional NW 103MM throttle bodies, fuel rail kit, EVAP Adapter & LT4 Fuel Line available, click the blue product options button to configure your intake!
Intake Manifold SpecsPart Number: TRA-GENV-INJ-BLK-ML
Intake Section Included: Complete
Basic Operating RPM Range: 3500-7500Head Port Type: Gen V LT
Intake Color: Powdercoated Black
Intake Material: AluminumInjector Holes: YesIntake Mouth Size: 103MMThrottle Body Compatibility: DBWPort Mouth Radius / Port Match: CNC Machined
Notes: Includes mounting hardware. Additional NotesWill NOT work with LT4 cylinder heads!LT4 fuel line is recommended for optimal clearance PN# 12663577 or click on the blue product options button
