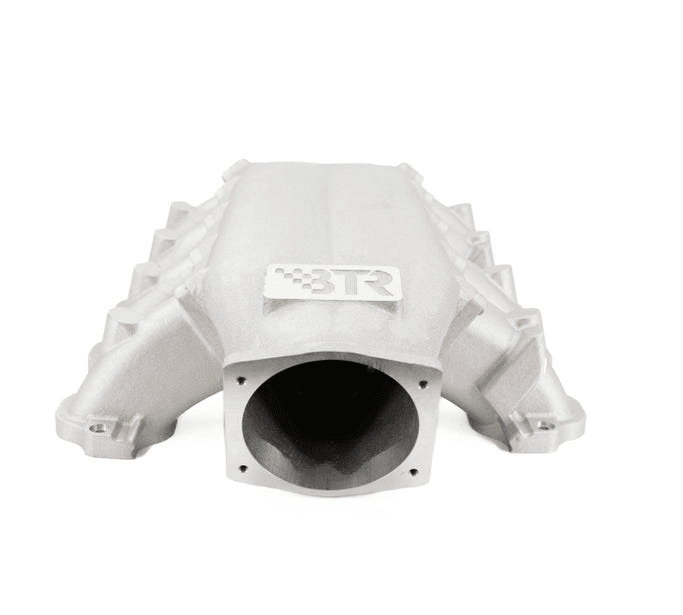

Btr Ford Godizlla Trinity Cast Aluminum Intake Manifold - Natural Finish

The latest offering from BTR in high quality cast aluminum intake manifolds! The Godzilla Trinity is a short runner, 3-piece design that allows for the ultimate in application flexibility. Optimum operating range is 6000-8500 rpm and is primarily intended to bridge the gap between N/A and Boosted applications. It utilizes the LT1 throttle body when using an OEM ECU. Can also be used with LS style 4 hole TBI's when using aftermarket ECU's. The design incorporates 2 runners and an interchangeable plenum. The seal is generated by 8 entrapped o-rings at the runner/plenum interface, and is clamped by 20 -M6 Stainless steel socket head cap screws. The port seals are SAE o-rings seated in a dovetailed o-ring groove. Both the port mouth radius and the port match is CNC machined. The Trinity incorporates 2-1/4 -27 NPT ports on the side of the throttle body boss and a 3/8-18” NPT on the rear. The manifold comes semi-assembled and includes all the hardware required to bolt it on.
Intake Manifold Specs Part Number: TRA-GZ
Intake Section Included: Complete
Basic Operating RPM Range: 6000-8500 Head Port Type: Ford Godzilla
Intake Color: Natural
Intake Material: Aluminum Throttle Body Compatibility: Cable / DBW Port Mouth Radius / Port Match: CNC Machined
Notes: Includes mounting hardware.
