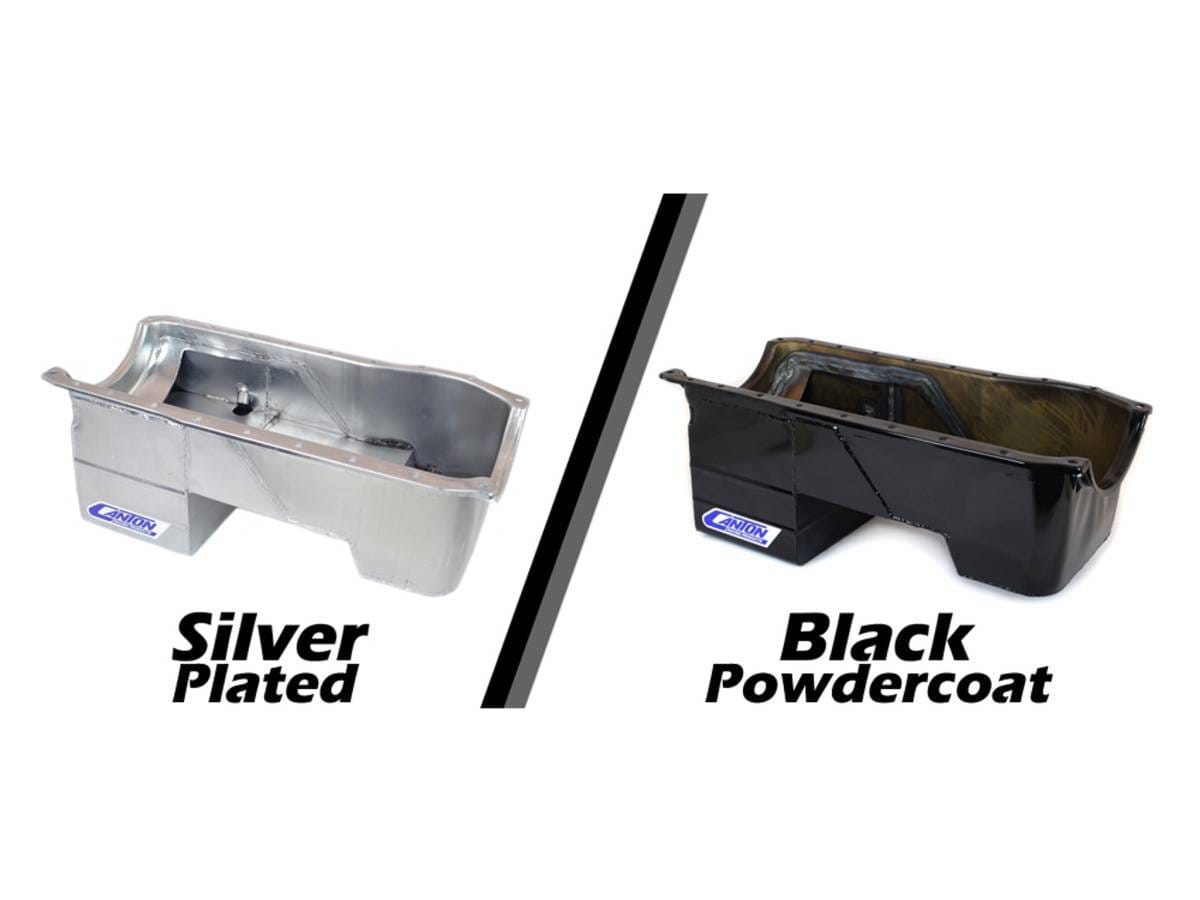

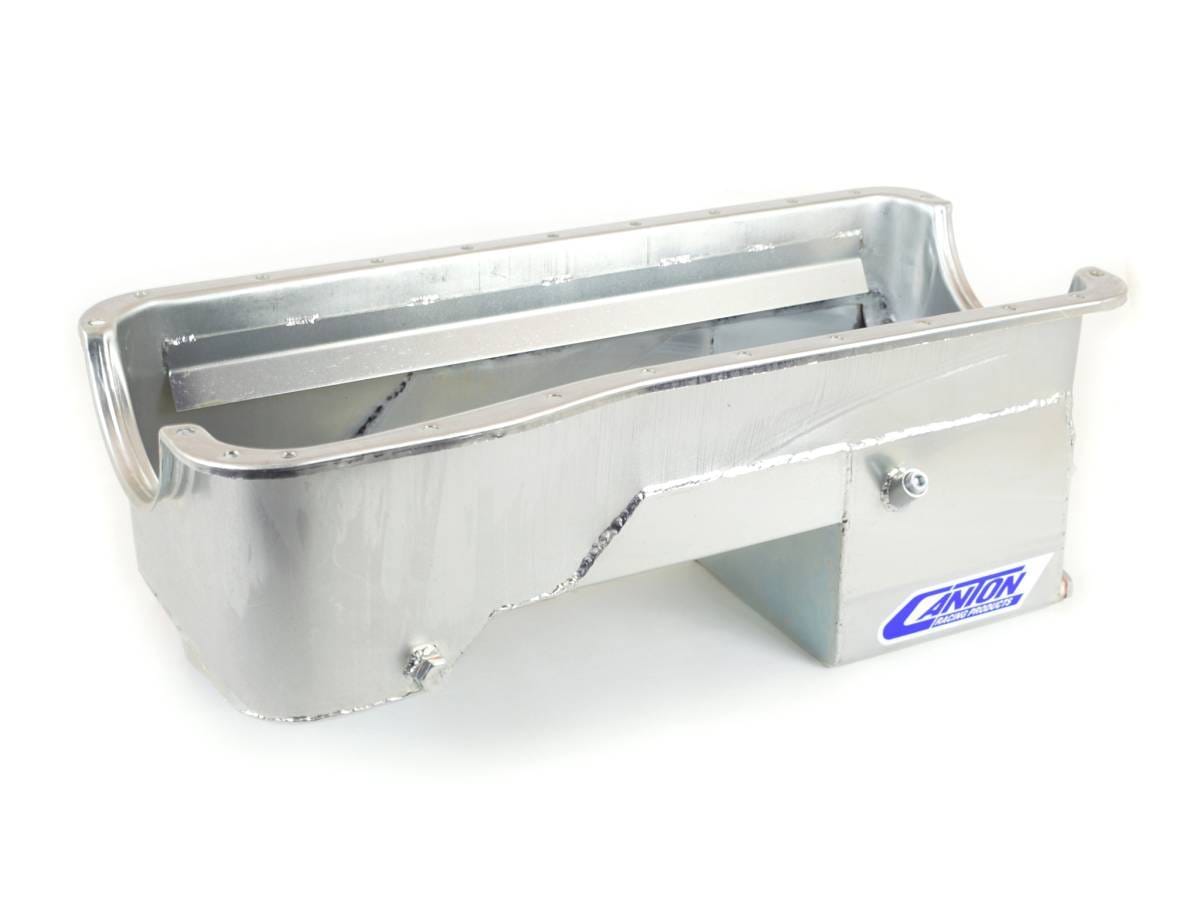

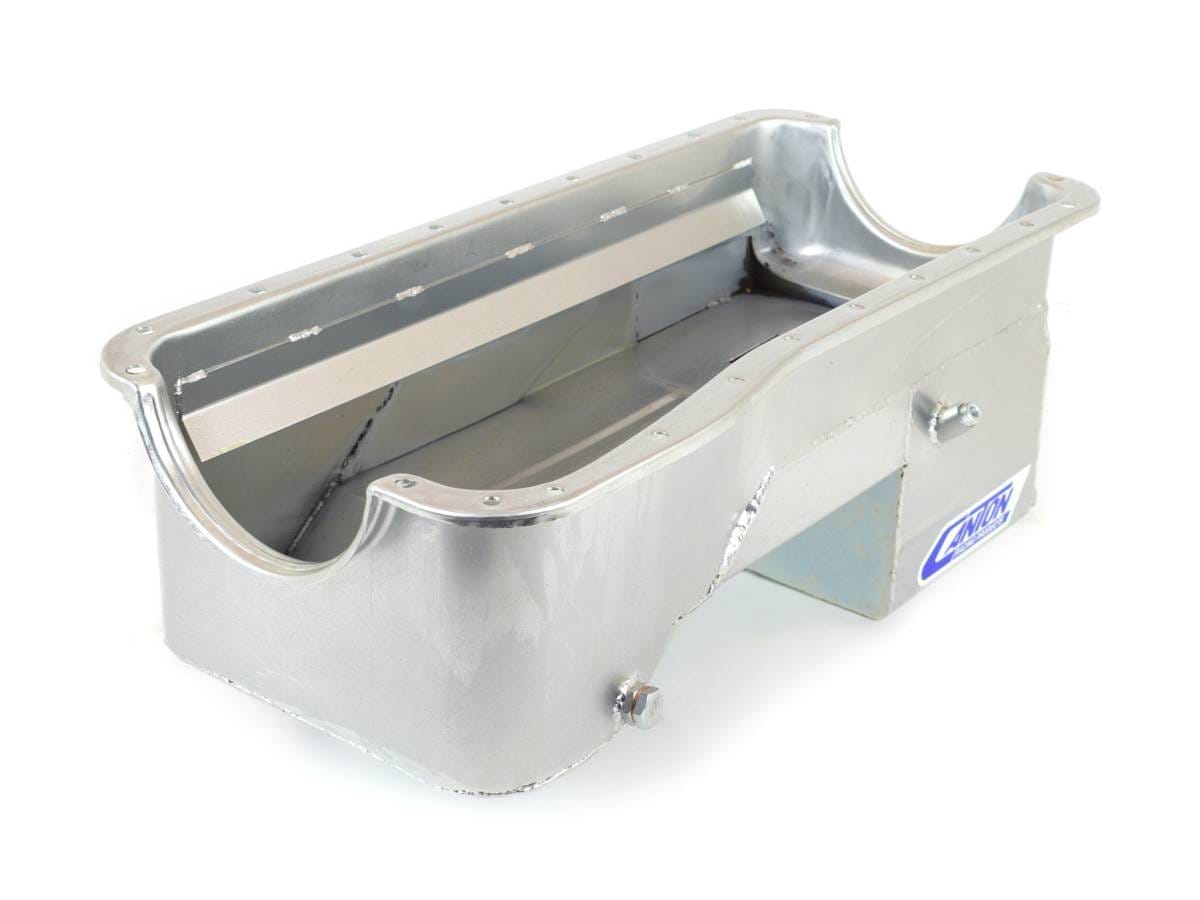

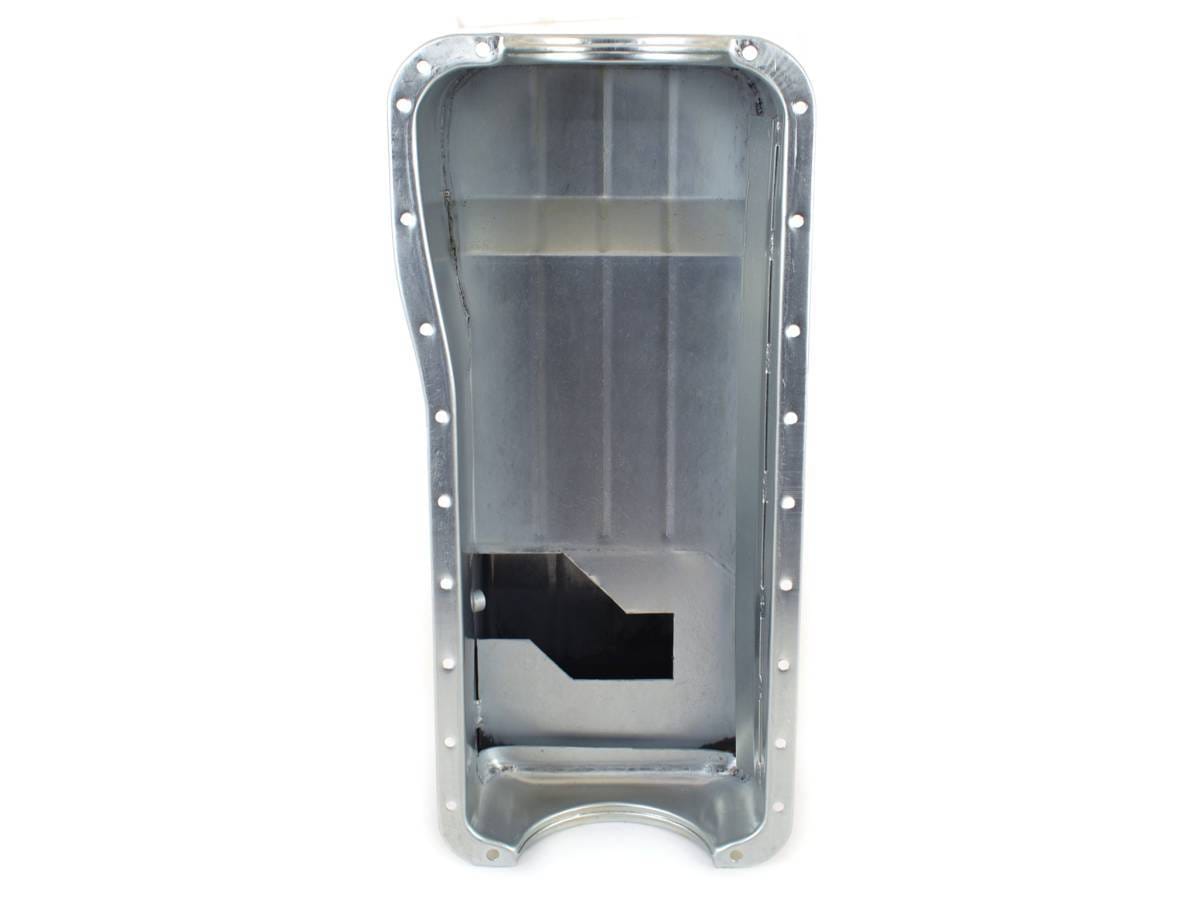

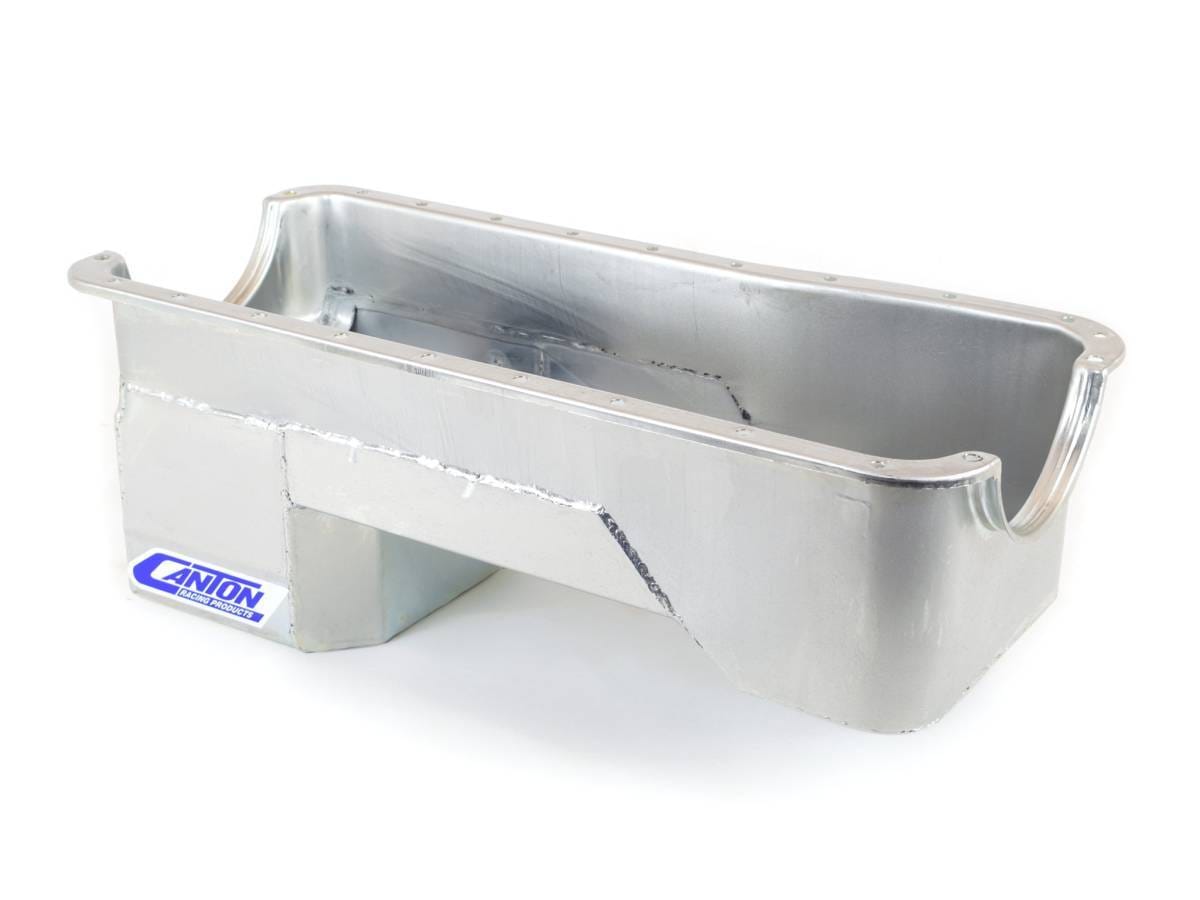

Big Block Ford 429-460 Fox Body Swap Street Rear Sump Oil Pan

Rear sump for Ford 429-460 blocks for Fox Body Mustang conversions. It has a 9" deep by 7-1/2" long sump giving it a 7 quart system capacity. Note: This Ford 429-460 pan for ’79 and up Mustang and ’80 & up T-Bird chassis will require special motor mounts and may require modification when used in 79-80 Mustangs.

FEATURES: Extra Deep Sump For Increased Oil Control & Capacity, Crank Scraper, Slosh Baffle, Provision For Our Pan Mounted Dipstick, Magnetic Drain Plug

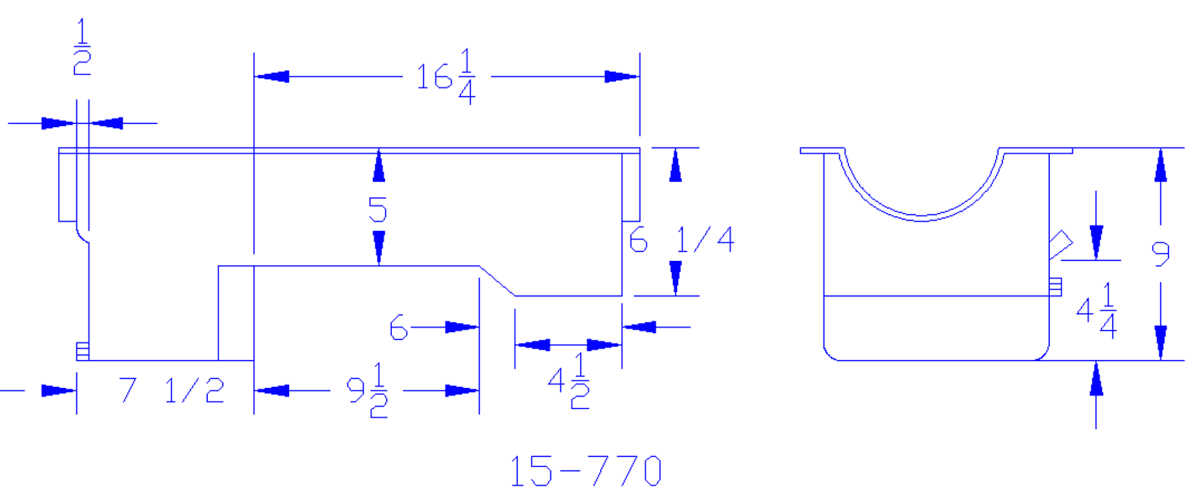

SIZE: 9" deep by 7-1/2" long sump giving it a 7 quart system capacity.

OIL PAN PART #: 15-770 for Big Block Ford 429-460 Swapped Fox Bodys

RECOMMENDED ACCESSORIES:

OIL PUMP PICKUP:
PART #: 15-771 - Pickup 3/4" Dia. Inlet
PART #: 15-777 - Pickup 3/4" Dia. Inlet for use with Canton Main Support
PART #: 21-066 - Canton 429-460 Steel Main Support
PART #: 20-966 - Ford 429-460 Main Support Mounted Windage Tray
PART #: 20-956 - Pickup Mounting Stud for 429-460 Based Engine

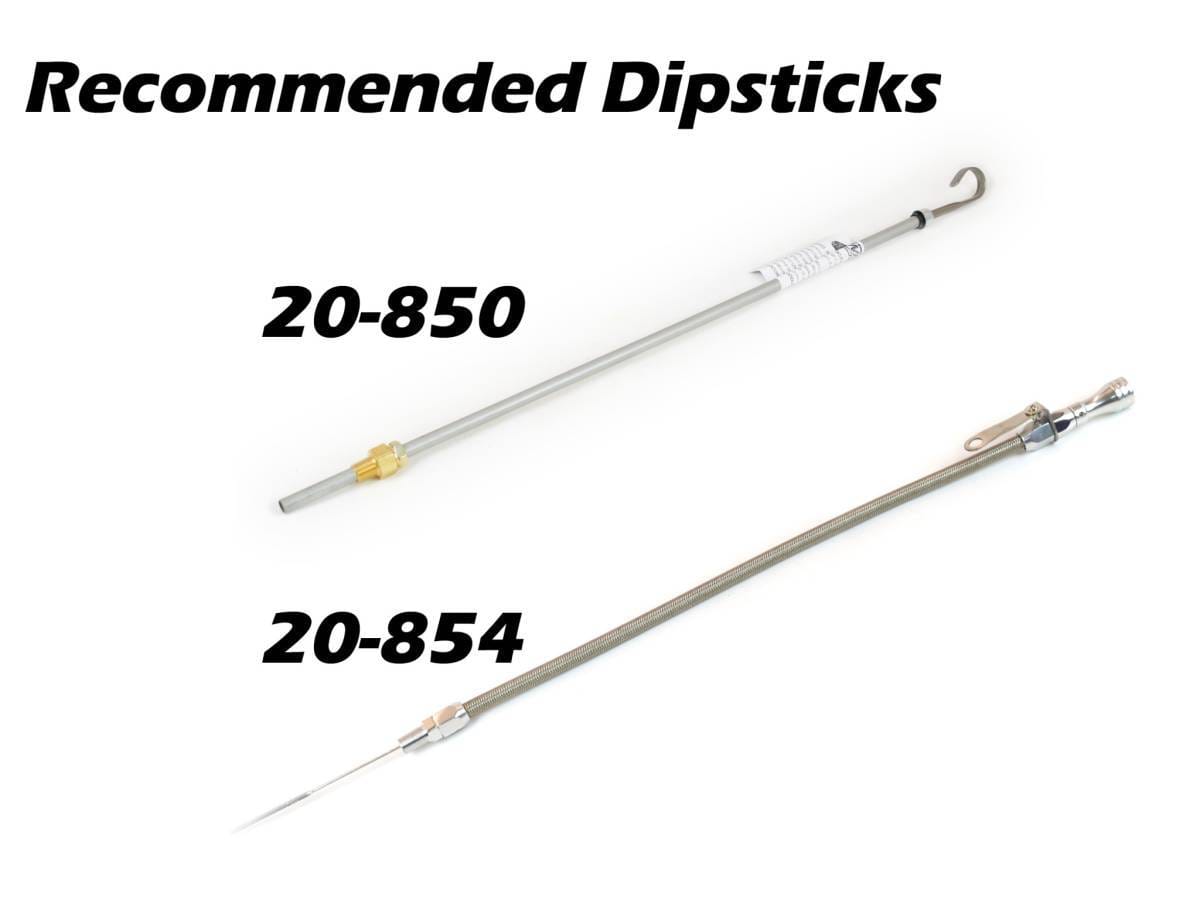

PART #: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
PART #: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
PART #: 88-750 - Big Block Ford 429-460 Four Piece Oil Pan Gasket
