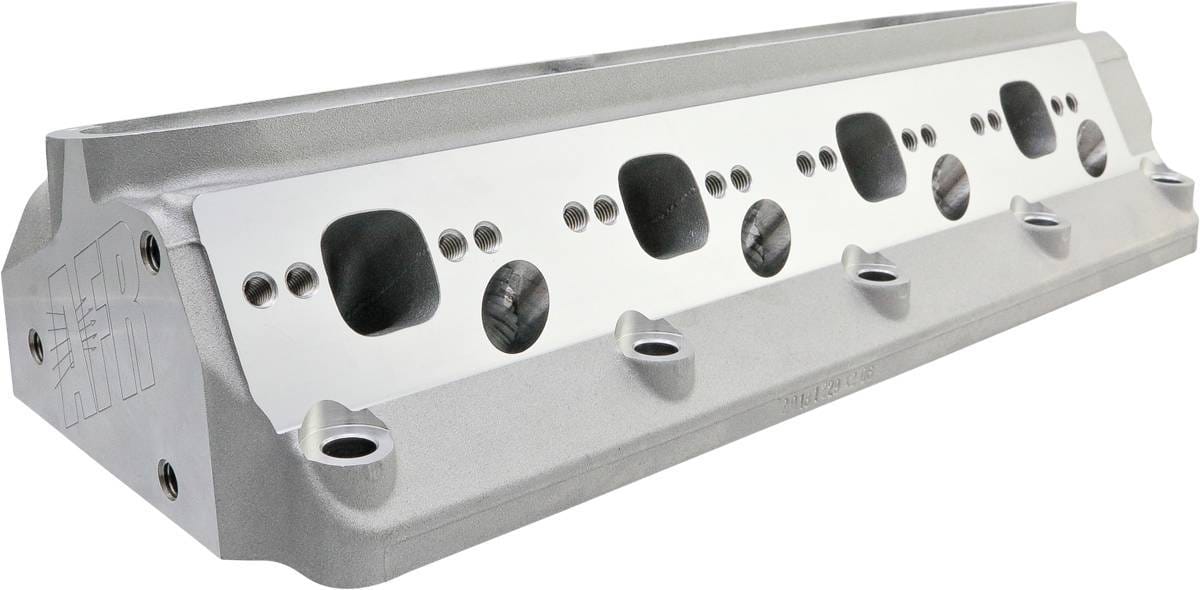

Afr Ford 185cc Enforcer As-Cast Sbf Cylinder Head, 64cc Chambers, Diy No Parts

AFR is proud to announce the release of its NEW Enforcer series of As-Cast cylinder heads. Comprised of four new budget-friendly cylinder heads, these price conscience offerings do not come fully assembled. This DIY package contains no intake/exhaust valves, springs, retainers, rocker studs, and guide plates. You can contact us for specific parts from AFR to complete your cylinder head. For the pre-assembled/complete 185cc SBF Enforcer Head, check out the part number: AFR 1351. Sold as a single piece, 2 pieces required per engine.
AFR's 185cc SBF Enforcer Cylinder head features their Permanent Mold “As-Cast” Technology surfaces on the intake runners, exhaust runners and combustion chambers that allow for extremely accurate and repeatable port location/performance. This budget-friendly head is perfect for your 302 to 363 Cubic Inch operating below 6000 RPM. Sold as a single piece, 2 pieces required per engine.

Note:
Hydraulic roller cams typically experience valve float at 6000-6200 rpm because of their fast ramp rates. AFR suggests you upgrade your springs to AFR part #8019, 1.270 O.D. with higher spring pressures to reduce chances of valve float associated with rpm’s 6200 or higher, but smaller cams with less than .500 lift can rev to 6500 rpm with the included springs.
Note: Stock 86-93 5.0L must have pistons notched for clearance. 185cc Street Head Flow Chart   .200 .300 .400 .500 .550 .600 Int 119 177 225 255 257 260 Exh 105 143 163 166 168 170 Test conducted at 28" of water (pressure) on Superflow 600
Bore Size: 4.060", 3/4" radius plate exhaust, 1 3/4" curved pipe Basic Package Components Part # As Cast Combustion Chambers

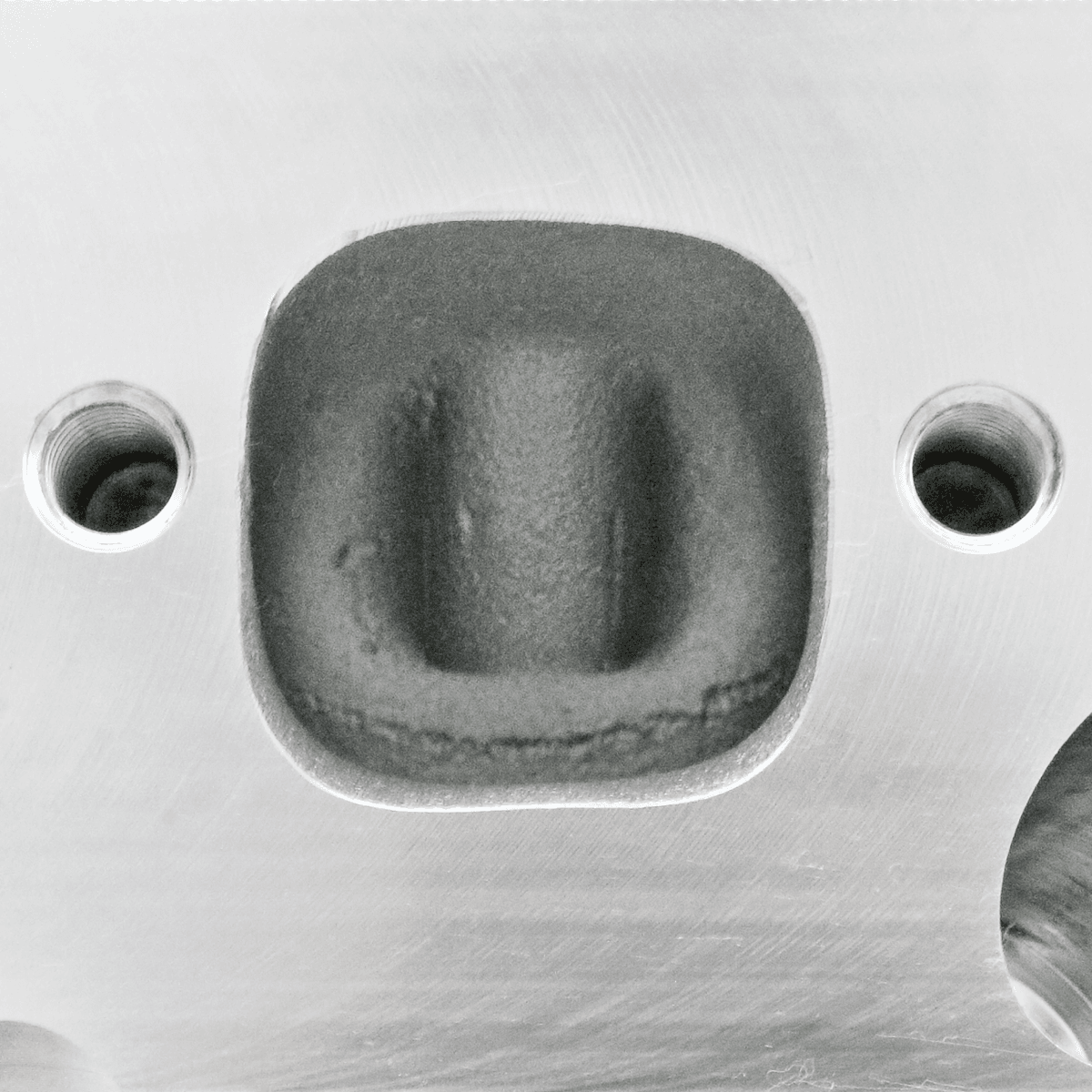

As Cast Exhaust Ports

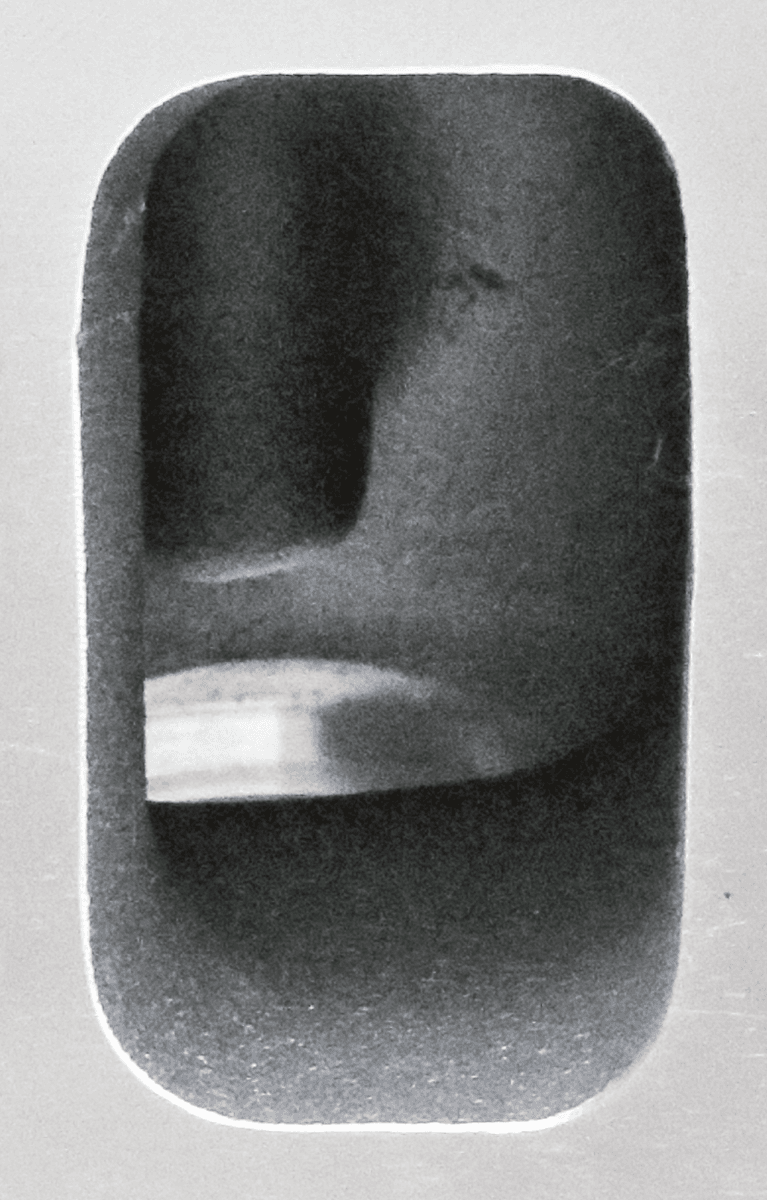

As Cast Intake Ports
3-angle Valve Job
Specifications, Features, and Optional Supporting Components Head Material A356 Aluminum Intake Port Volume 185cc Intake Port Dimension 2.010" H x 1.070" W x 5/16 Radius Intake Port Location Stock Exhaust Port Volume 64cc Exhaust Port Dimension 1.370" H x 1.350" W Exhaust Port Location Stock Combustion Chamber Size  64cc Valve Angle 20° Valve Spring Pocket Diameter 1.540" O.D Max Valve Spring Pocket Machining 1.600" O.D Deck Thickness .325" Minimum Bore Diameter 4.000" Spark Plug Dimensions 14mm x .750" w/Gasket Seat Intake Port Gasket AFR #6911 Important: Do not port match your intake manifold to Fel-Pro gasket as it does not precisely fit an AFR head.   Exhaust Port Gasket AFR #6915 Head Gasket, 302/351W, Fel-Pro #1011-1 AFR #6808 SB Ford 1/2" Bolt Head Bolts, ARP #154-3603 AFR #6318 SB Ford 1/2" Bolt Head Studs, ARP #254-4503 AFR #6317 1/2" Bolt - 7/16" Thread Head Bolts, 289/302W: ARP 254-3708 AFR #6319 Head Bolt Washers, Manley AFR #6320 Suggested Manifold AFR #4830 Flat Mill .006" per cc 54cc Max (from 64cc) Spark Plug Starting Range Autolite 3924 Important: Do not port match you intake manifold to any Fel-Pro gasket as it does not precisely match an AFR head.
Note: Milling head deck will affect flow numbers.
