Afr 345cc Bbc Magnum Rectangle Port Cylinder Heads, Partially Ported, Cnc Chambers, No Parts

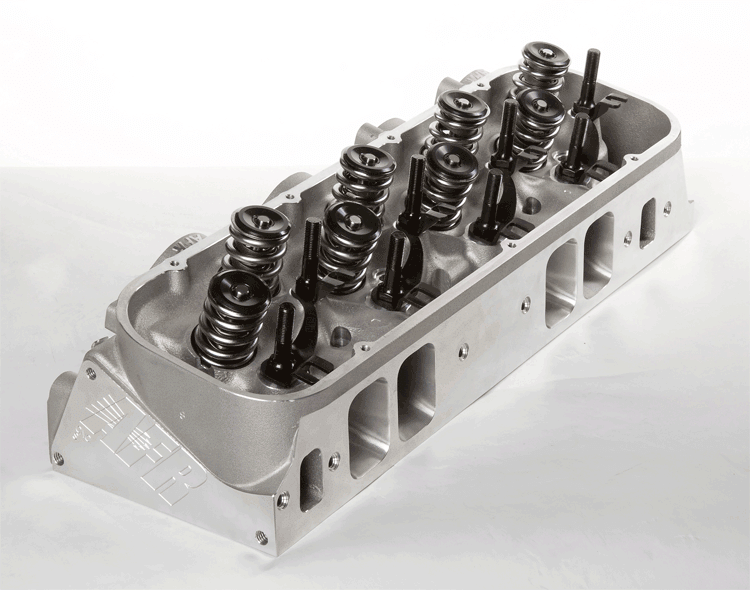

AFR's 345cc heads are designed features the CNC Chambers and an optional up-gradable partially CNC ported intake & exhaust, A356 aluminum castings and high quality components throughout. Recommended for more radical street/strip, "Pro Street", or racing builds with displacements up to 572 cubic inches, operating up to 7000 RPM. Also available with 100% CNC chambers for increased air flow (see chart). Component upgrades and machining options are available to customize AFR Heads to your specific build.
AFR's "As Cast" Magnum Series

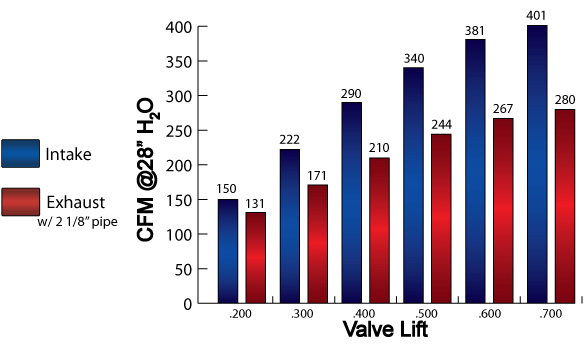

If "Dirty Harry" drove a racecar, it would certainly be fitted with a pair of our 345 or 357 "Magnum" cylinder heads. If huge horsepower is what you are searching for, either of these castings will certainly deliver. With our Race Ready "As Cast" 345cc flirting with 400 CFM and our fully CNC ported 357cc flowing 425 CFM, these heads represent the ultimate in airflow for your BB Chevrolet. These heads were targeted at larger cubic inch engines (509-632 CID) looking for maximum horsepower and rpm capability with a primary operating range of 3500-8000 rpm's (This range is an average and will vary with engine displacement and component selection). These heads will also provide impressive torque figures at higher rpm levels. Blown, turbo, and nitrous engines will especially like the larger, higher flowing intake ports. These heads will work best with camshafts exceeding .750 gross valve lift to make better use of the substantial airflow found in the higher lift range. The 345cc heads come standard with AFR's trademark .750" thick head deck, and reinforced rocker stud bosses. Standard combustion chamber volume is 115cc's on the 345 "As Cast" model. Properly selecting the correct cylinder head depends on a large number of variables. Please consult with one of our sales technicians to assist you in making the best decision for your particular Note: Optional stud girdle required for 2° rolled valve angles and 1" longer head bolts needed on four bottom exhaust bolt holes. Longer pushrods might also be required.

Note: Optional stud girdle required for 2° rolled valve angles and 1" longer head bolts needed on four bottom exhaust bolt holes. Longer pushrods might also be required. Basic Package Components Part # Competition 5-angle Valve Job
50% CNC Ported Combustion Chambers


Specifications, Features, and Optional Supporting Components Head Torque 75 ft. lbs Intake Port Gasket AFR #6854 (.120" Thick) or AFR #6856 (.060" Thick) Exhaust Port Gasket AFR #6858 Head Gasket, Fel-Pro #1047 (Mark V and VI) AFR #6849 Head Gasket, Fel-Pro #1017-1 (Mark IV) AFR #6350 Head Bolts, ARP 135-3703 (Mark IV) AFR #6306 Head Bolts, ARP 135-3707 (Mark V) AFR #6308
Head Studs, ARP 235-4713 AFR #6307 Head Bolt Washers, Manley AFR #6320 Suggested Manifold Super Victor Victor Jr.,  Spark Plug Starting Range Autolite 3932 Combustion Chambers 121cc w/ CNC Chambers & 117cc w/ As Cast Valve Spring Pocket Diameter 1.725 O.D
Intake Port Dimension 2.435"H x 1.765"W x 13/32 Radius Exhaust Port Dimension 1.720"H x 1.920" W Valve Angle 24°/4° Intake, 15°/4° Exhaust Angle Mill
.009" per cc/Maximum 104cc As Cast or CNC Chamber Flat Mill
.006" per cc/ Maximum 108cc As Cast or 114cc CNC Chamber Stud Girdle, (AFR Specific) AFR #6202 Important: Optional stud girdle required for 2° rolled valve angles and 1" longer head bolts needed on four bottom exhaust bolt holes. Longer pushrods might also be required. Note: Angle mills might require a .120" thick intake gasket.
