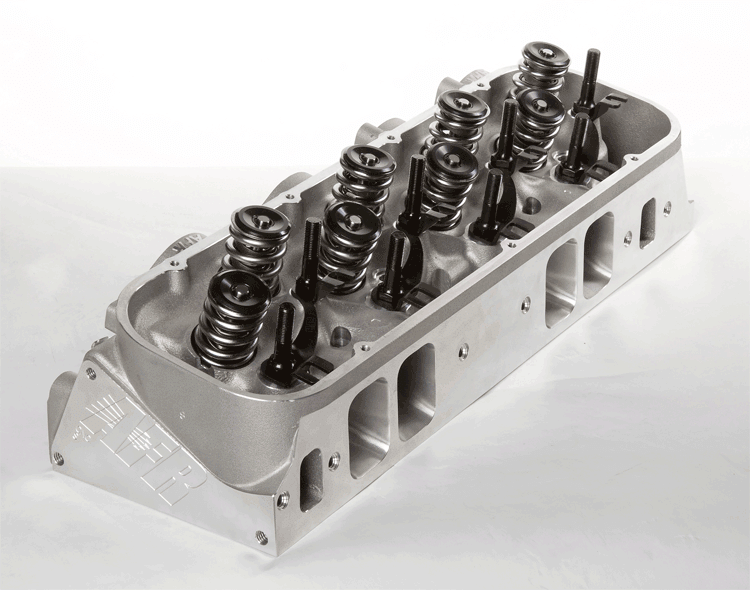

Afr 335cc Bbc Magnum Rectangle Port Cylinder Heads, Cnc Ported, W/ Valve Job, No Parts

AFR`s 335cc heads are designed feature 100% CNC ported intake, exhaust & chambers, A356 aluminum castings and high quality components throughout. Recommended for radical street/strip or "Pro Street" builds with displacements up to 572 cubic inches, operating up to 7000 RPM. Component upgrades and machining options are available to customize AFR Heads to your specific build.

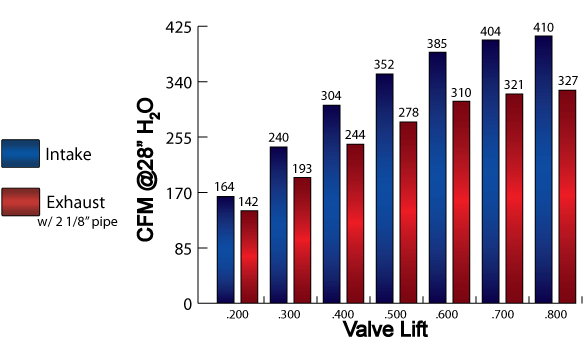

AFR's Best of Both Solution Are you looking for big torque and big horsepower number? AFR's BB Chevy line of medium volume intake runners will provide you with exactly that. The phrase "having your cake and eating it to" would certainly be appropriate with their moderately sized intake runners producing tremendous flow figures across the entire lift range (Our CNC 335 flows 410 CFM!). These high flow/high velocity ports provide extreme versatility and fill the needs of many applications. From a max-effort high compression 454 to a 605 CID low rpm marine application, either one of these cylinder heads would be a great choice. These heads would also be ideal in a larger cubic inch "Pro-Street" application with their broad torque range, as well as significant rpm and horsepower capability. These heads will work best with a primary operating range of 3000-7000 rpm’s (This range is an average and will vary with engine displacement as well as component selection). These 335cc heads come standard with AFR’s trademark .750" thick head deck, and reinforced rocker stud bosses. Standard combustion chamber volume is 121cc for our 335cc BBC. Properly selecting the correct cylinder head for an application depends on a large number of variables. Please consult with one of our sales technicians to assist you in making the best decision for your particular application.

Note: Optional stud girdle required for 2° rolled valve angles and 1" longer head bolts needed on four bottom exhaust bolt holes. Longer pushrods might also be required.

Basic Package Components Part # 100% CNC Ported Chambers, Exhaust, and Intake
Competition 5-angle Valve Job

Specifications, Features, and Optional Supporting Components Head Torque 75 ft. lbs Intake Port Gasket AFR #6853 (.120" Thick) or AFR #6855 (.060" Thick) Exhaust Port Gasket AFR #6858 Head Gasket, Fel-Pro #1047 (Mark V and VI) AFR #6849 Head Gasket, Fel-Pro #1017-1 (Mark IV) AFR #6350 Head Bolts, ARP 135-3703 (Mark IV) AFR #6306 Head Bolts, ARP 135-3707 (Mark V) AFR #6308
Head Studs, ARP 235-4713 AFR #6307 Head Bolt Washers, Manley AFR #6320 Suggested Manifold Super Victor Victor Jr.,  Spark Plug Starting Range Autolite 3932 Combustion Chambers 121cc w/ CNC Chambers Valve Spring Pocket Diameter 1.725 O.D
Intake Port Dimension 2.455"H x 1.755"W x 13/32 Radius Exhaust Port Dimension 1.780"H x 2.025" W Valve Angle 24°/4° Intake, 15°/4° Exhaust Angle Mill
.009" per cc/Maximum 104cc Flat Mill
.006" per cc/ Maximum 114cc Stud Girdle, (AFR Specific) AFR #6202 Important: Optional stud girdle required for 2° rolled valve angles and 1" longer head bolts needed on four bottom exhaust bolt holes. Longer pushrods might also be required. Note: Angle mills might require a .120" thick intake gasket. Angle mills might require a .120 thick intake gasket.
