Afr 185cc Enforcer Sbf As Cast Cylinder Heads, 64cc Chambers, Small Valve, Bare, No Parts

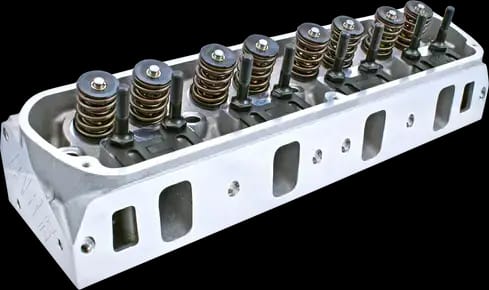

AFR's 185cc SB Ford Enforcer Cylinder heads feature our Permanent Mold “As-Cast” Technology surfaces on the intake runners, exhaust runners and combustion chambers that allows for extremely accurate and repeatable port location/performance. In addition, these heads utilize a 1.900” Intake valve and are compatible with OEM piston valve relief. This budget friendly head is perfect for your 302 to 363 Cubic Inch engine operating below 6000 RPM. They come fully assembled with the identical components found in our higher end CNC ported cylinder heads, such as ARP rockers studs, PAC Racing springs, Viton valve seals, AFR adjustable guide plates, machined bead valve locks (not stamped), hardened spring cups and ductile iron seats (not powdered metal) our one-piece 8mm 21 4N Stainless Steel valves. These heads are bare part number for fully assembled #AFR 1341 Note: Head comes completely bare, no parts. *Notice Pictures are for reference heads would come bare, no parts.
The Ultimate Bolt-On Emission Legal Street/Strip Weapon! - Information below is referring to fully assembled heads.
If you need the world´s finest street/strip small block Ford head, check out AFR´s all new 185cc intake port emissions legal (ARB only, 49 state legal, not California) performance aluminum cylinder heads. With lightweight 8mm 1.900" intake valves, 1.600" exhaust valves, combustion chamber volumes of 64cc and 64cc exhaust ports, AFR´s new 185cc Ford Enforcer cylinder heads are designed for 302-363 cid engines operating bellow 6000 RPM. A .325" thick head deck makes the AFR head ideal for naturally aspirated engines or mild power adder applications.

Basic Package Components Part # As Cast Ported Combustion Chambers
As Cast Ported Exhaust Ports
As Cast Ported Intake Ports
3-angle Valve Job
Specifications, Features, and Optional Supporting Components Head Material A356 Aluminum Intake Port Volume 185cc Intake Port Dimension 2.010" H x 1.070" W x 5/16 Radius Intake Port Location Stock Exhaust Port Volume 64cc Exhaust Port Dimension 1.370" H x 1.350" W Exhaust Port Location Stock Combustion Chamber Size  64cc Valve Cover Bolt Pattern Perimeter Bolt Valve Angle 20° Valve Spring Pocket Diameter 1.540" O.D
Max Valve Spring Pocket Machining 1.600" O.D Deck Thickness .325" Minimum Bore Diameter 4.000" Spark Plug Dimensions 14mm x .750" w/Gasket Seat ARB legal, not CARB legal   Head Bolt Diameter 1/2" Intake Port Gasket AFR #6911 Exhaust Port Gasket AFR #6915 Head Gasket, 302/351 Windsor, Fel-Pro #1011-1 AFR #6808 SB Ford 1/2" Bolt Head Bolts, ARP #154-3603 AFR #6318 SB Ford 1/2" Bolt Head Studs, ARP #254-4503 AFR #6317 1/2" Bolt - 7/16" Thread Head Bolts, 289/302W: ARP 254-3708 AFR #6319 Head Bolt Washers, Manley AFR #6320 Stud Girdle AFR #6207 Suggested Manifold AFR #4830 Flat Mill .006" per cc 53cc Max (from 63cc) Spark Plug Starting Range Autolite 3924 Important: Do not port match you intake manifold to any Fel-Pro gasket as it does not precisely match AFR heads.
Note: Milling head deck will affect flow numbers.
