Afr 180cc Lt1 Eliminator Sbc Aluminum Bare Cylinder Heads, No Parts

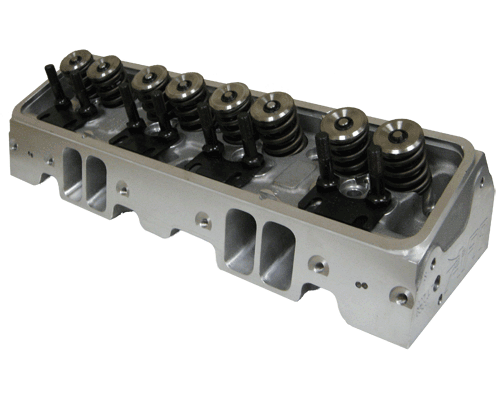

AFR`s LT1/LT4 heads are designed for the Gen II reverse cooled SBC engine from 1992-1996. They feature all the same benefits and quality components as AFR`s Gen I SBC Heads in addition to dual pattern valve cover mounting holes. Not compatible with self-aligning rocker arms. Machining options are available to customize AFR Heads to your specific build. Note: Head comes completely bare, no parts. *Notice Pictures are for reference heads would come bare, no parts.
The Small Port, High Velocity Torque Monster! - Information below is referring to fully assembled heads.
The AFR Emissions Legal (ARB only, 49 state legal, not California), 180cc intake port LT1 Small Block Chevy cylinder heads are available in the LT1 angle plug version only. These heads feature a 55cc to 65cc combustion chamber with a 64cc exhaust port and a 3/4" thick head deck (ideal for nitrous or blower applications). Standard valves are lightweight 8mm 2.020" intake and 1.600" exhaust with AFR’s hardened ductile iron interlocking valve seats. The exceptional flow characteristics, ideal operating range of idle to 6000 rpm (higher rpm ranges possible depending on combination of parts), 23° valve angle, and standard valve spacing make this the perfect street cylinder head for 350 cid to 383 cid performance engines and is specifically designed for 1992-1995 Corvettes and 1993-1997 Camaro's. No special parts are required. Dual valve cover bolt pattern is standard.
Exhaust port is raised .100 over GM L98 cylinder heads.

Note: Angle mills might require .120" Thick intake gasket. Important: Do not port match your intake manifold to Fel-Pro gasket as it does not precisely fit AFR heads.   Basic Package Components Part # 100% CNC Ported Combustion Chambers
100% CNC Ported Exhaust Ports
100% CNC Ported Intake Ports
Competition 5-angle Valve Job
Specifications, Features, and Optional Supporting Components Head Torque 65-70 ft. lbs Intake Port Volume 180cc Intake Port Dimension 2.050" H x 1.250" W 5/16 Radius Intake Port Location Stock Exhaust Port Volume 64cc Exhaust Port Dimension 1.450" H x 1.550" W Exhaust Port Location .100" Raised Combustion Chamber Size 55cc or 65cc Valve Cover Bolt Pattern Center and Perimeter Bolt Valve Angle 23° Valve Spring Pocket Diameter 1.460" O.D Max Valve Spring Pocket Machining 1.750" O.D Deck Thickness .750" Minimum Bore Diameter 4.000"  Flat Mill .006" per cc 60cc Maximum Angle Mill .009" per cc 55cc Maximum Minimum Cross Sectional Area 1.810 sq. in. Spark Plug Dimensions 14mm x .750" w/Gasket Seat     Intake Port Gasket GM #12524653 LT1 / Fel-Pro #1284 Exhaust Port Gasket, Fel-Pro #1404 AFR #6834
Head Gasket, 350cid Fel-Pro #1074 AFR #6803 SB Chevy Head Bolt Kit, ARP #134-3701 AFR #6310 SB Chevy Head Stud Kit, 12 Point Nuts, ARP #234-4301 AFR #6305
Head Bolt Washers, Manley ARP #234-4301 AFR #6320 Stud Girdle GM L98 Fel-Pro #1074, AFR #6200 Suggested Manifold GM LT1 or LT4 Spark Plug Starting Range Autolite 3924  Important: Do not port match you intake manifold to any Fel-Pro gasket as it does not precisely match AFR heads.
Note: Milling head deck will affect flow numbers. Angle mills might require .120" Thick intake gasket.
