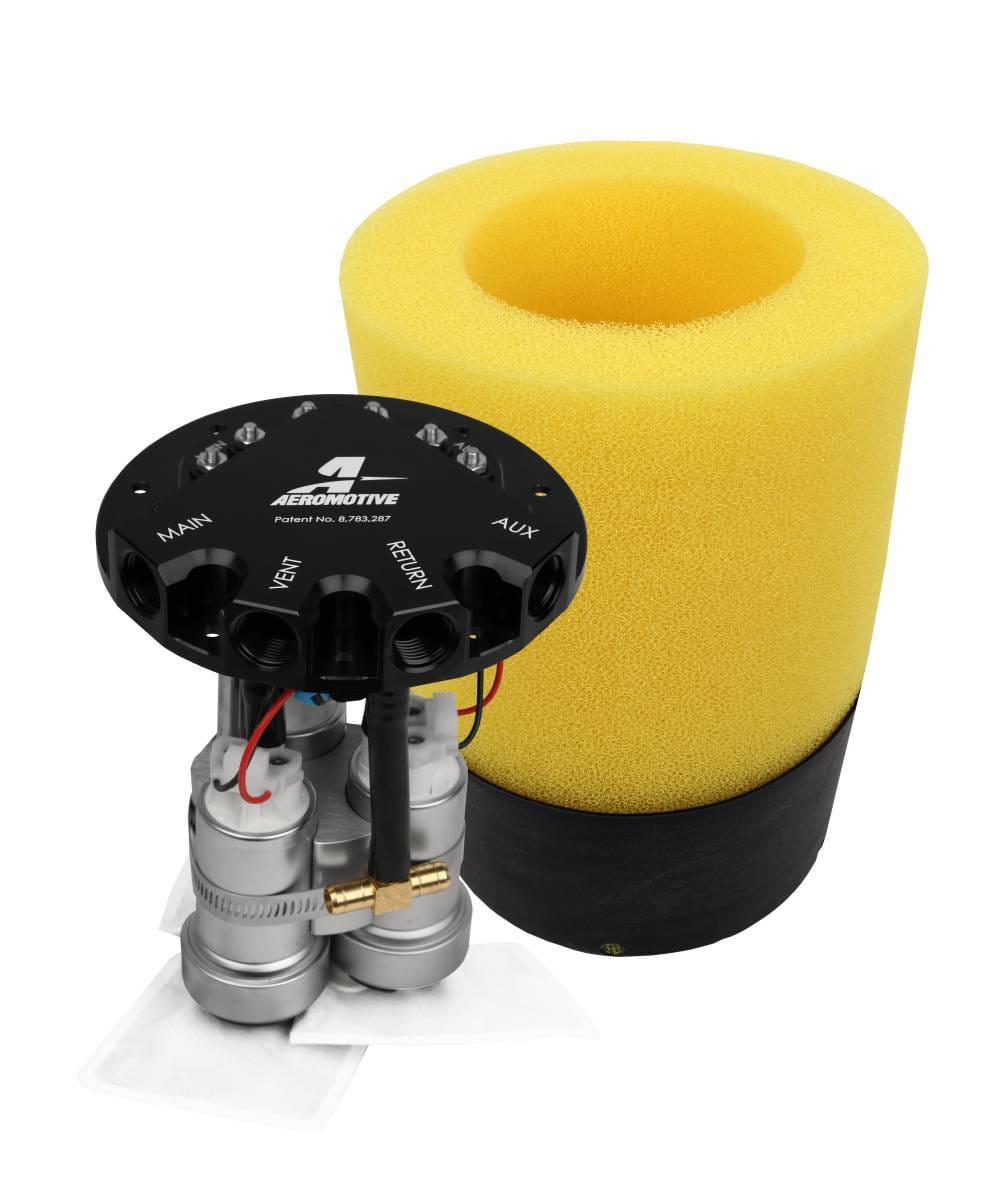

Aeromotive Universal Triple 450 Lph Trifekta Phantom In-Tank Fuel Pump Kit - 6-10" Depth

Aeromotive’s new Phantom Trifekta is designed to extend the patented Phantom technology into the realm of ultra-high horsepower street/strip applications. Equipped with triple 450lph, E85 friendly Walbro pumps, the new Aeromotive Trifekta supports staged pump control to reduce recycling and improve continuous duty capability. The Trifekta is ready to feed blown EFI applications making a whopping 1,650 FWHP on E85 and as much as 2,400 FWHP on gas.
Features:
Triple 450lph Walbro Fuel Pumps
Patented Phantom Bladder technology
Includes everything required to mount in-tank
ORB-08 Outlet, Vent & Return Ports
6in Billet Top Cap : Requires Drilling 4.5in hole
Three Sets of Electrical Terminals : Main Pump, Auxiliary Pumps and Fuel Level Sending Unit Triple 450 LPH Fuel Pump Power Specs: CARB or EFI Power Adder Fuel Min HP Max HP Fuel Injected Forced Induction Gas 1440 2400 Carbureted Naturally Aspirated Gas 2340 3900 Carbureted Forced Induction Gas 1710 2850 Fuel Injected Naturally Aspirated E85 1350 2250 Fuel Injected Naturally Aspirated Gas 1800 3300 Fuel Injected Forced Induction E85 990 1650 Carbureted Forced Induction E85 1260 2100 Carbureted Naturally Aspirated E85 1620 2700

Instructions
