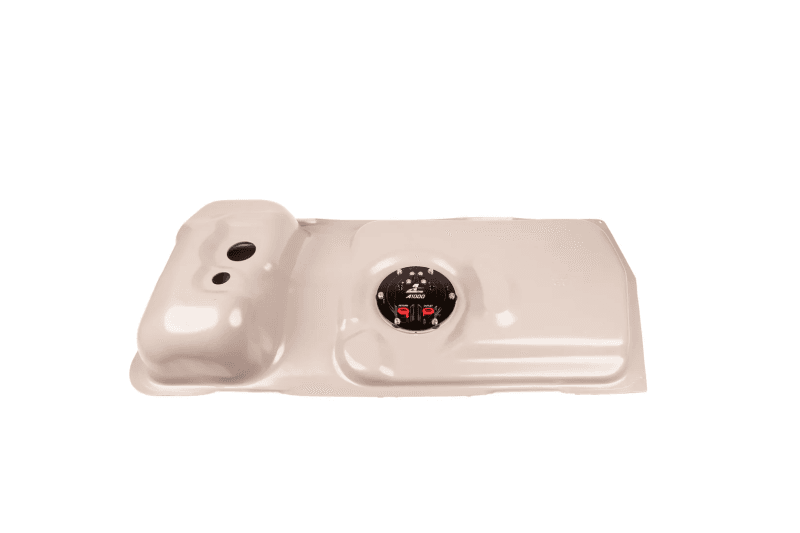

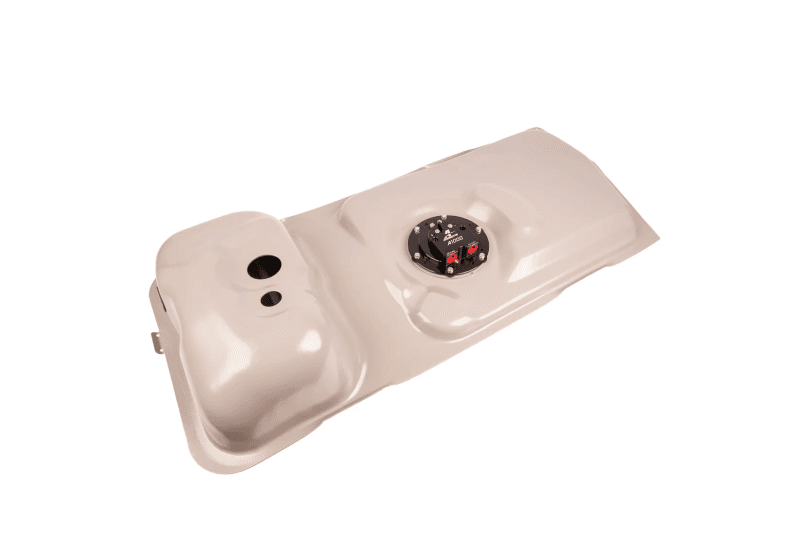

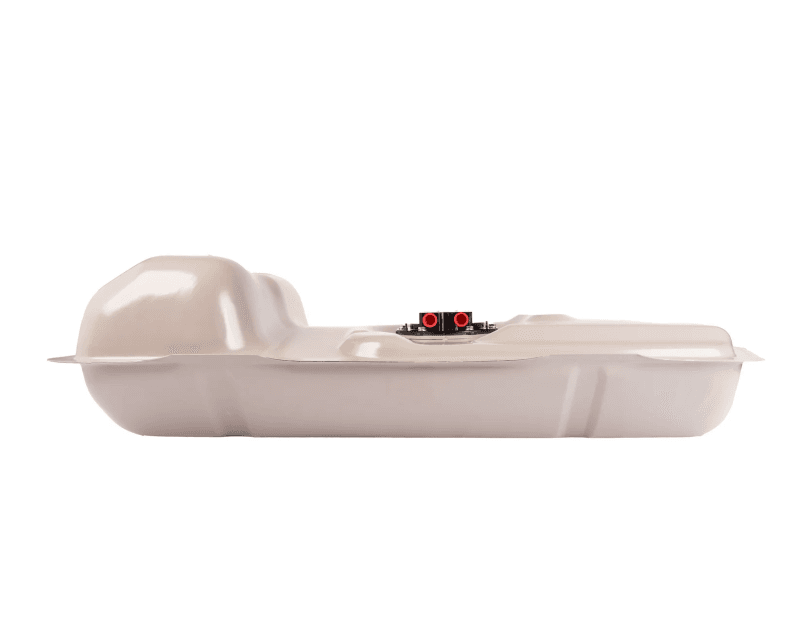

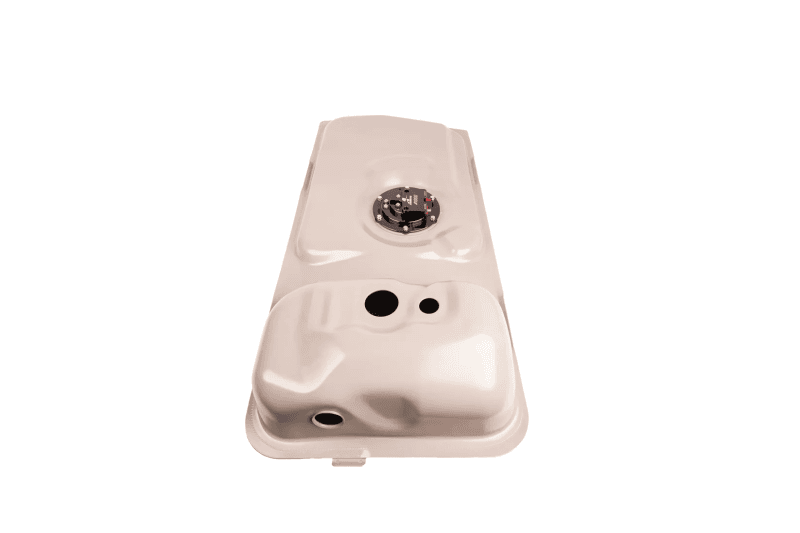

Aeromotive Stealth Fuel Tank W/ Brushless A1000 Fuel Pump For 1999-2004 Ford Mustang

In 2003, Ford developed a specialized fuel tank for the 2003-2004 Mustang Cobras, featuring an advanced internal baffling system. When Ford discontinued these tanks in 2011, Aeromotive saw an opportunity to reproduce them and extend their compatibility to all Mustangs. Our Stealth tanks provide top-tier performance with a stock appearance. Each tank includes an innovative baffling system and a built-in fuel pump, supporting nearly any horsepower demand with a pre-pump filter. These tanks are a direct bolt-in for 1999-2004 Ford Mustangs.
Features:
Built-in Pump: Renowned for setting the bar in fuel delivery systems. Depend on it for consistent performance
Advanced 100 Micron Pre-Filter: Safeguard your engine with our meticulously designed pre-filter. It’s your first line of defense against contaminants, keeping your fuel pure and your system protected
Precision Fuel Sending Unit with attached float arm: Monitors the fuel level with pinpoint accuracy
Designed for EFI or carbureted systems
Maximum continous operating pressure should not exceed 70 psi
Fuel pump utilizes AN-8 ORB style for the outlet and -08 ORB for the return ports.
Ports are not pipe thread and utilize no thread sealant A1000 Fuel Pump Power Specs: CARB or EFI Power Adder Fuel Min HP Max HP Fuel Injected Forced Induction Gas 600 1000 Carbureted Naturally Aspirated Gas 800 1500 Fuel Injected Naturally Aspirated E85 500 910 Fuel Injected Naturally Aspirated E85 600 1050 Fuel Injected Naturally Aspirated Gas 720 1300 Carbureted Forced Induction Gas 700 1200 Carbureted Forced Induction E85 500 840 Fuel Injected Forced Induction E85 400 700
