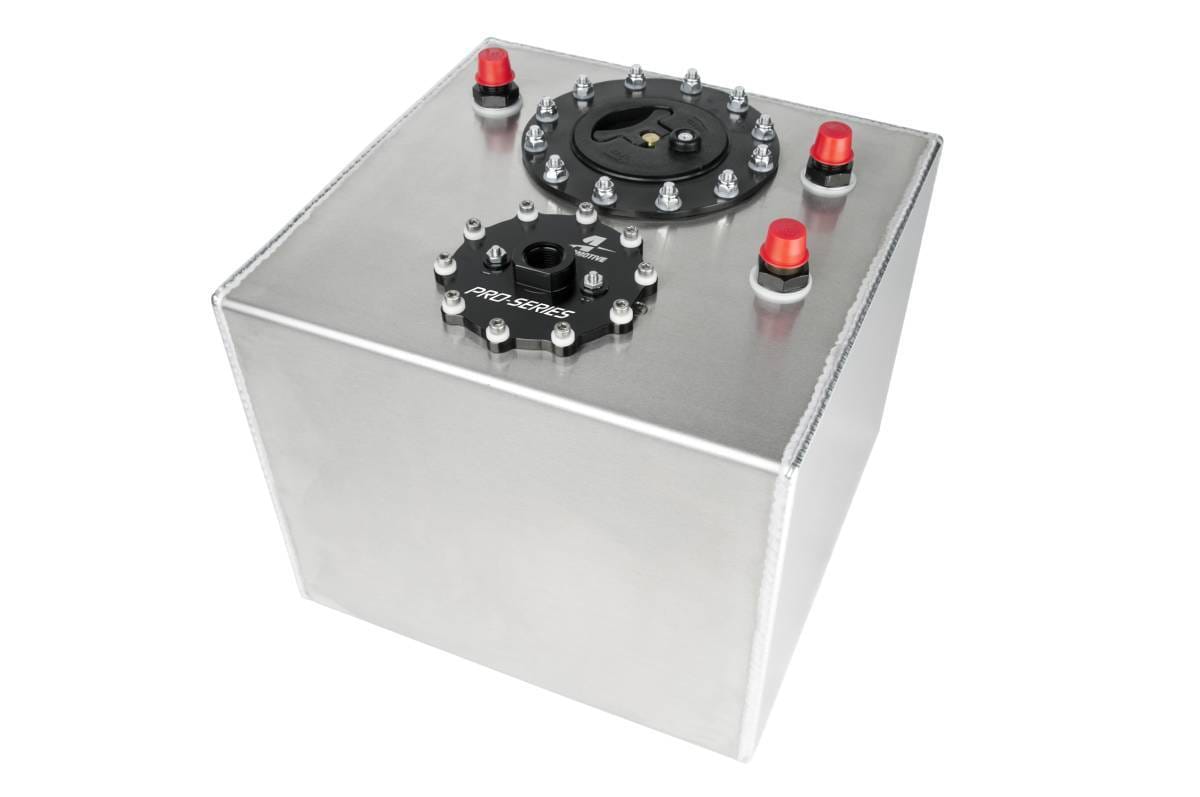

Aeromotive Stealth 6-Gallon Fuel Cell With Integrated Pro-Series Fuel Pump (Includes Pre-Pump Fuel Filter)

Aeromotive’s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.
Features:
Pro-Series Fuel Pump (internal) - P/N 18005
100 Micron Stainless Steel Pre-Filter
6.2 Gallon Capacity
AN-08 Return Line Provision
ORB-10 Outlet Port
(2) AN-08 Vents with Rollover Valves
Standard 12-Bolt Flush Mount Lid Assembly Pro-Series Fuel Pump Power Specs: CARB or EFI Power Adder Fuel Min HP Max HP Carbureted Forced Induction Gas 1190 2000 Carbureted Naturally Aspirated E85 1127 1820 Fuel Injected Naturally Aspirated E85 931 1540 Carbureted Forced Induction E85 833 1400 Fuel Injected Forced Induction Gas 980 1700 Fuel Injected Forced Induction E85 833 1190 Carbureted Naturally Aspirated Gas 1610 2600 Fuel Injected Naturally Aspirated Gas 1330 2200
