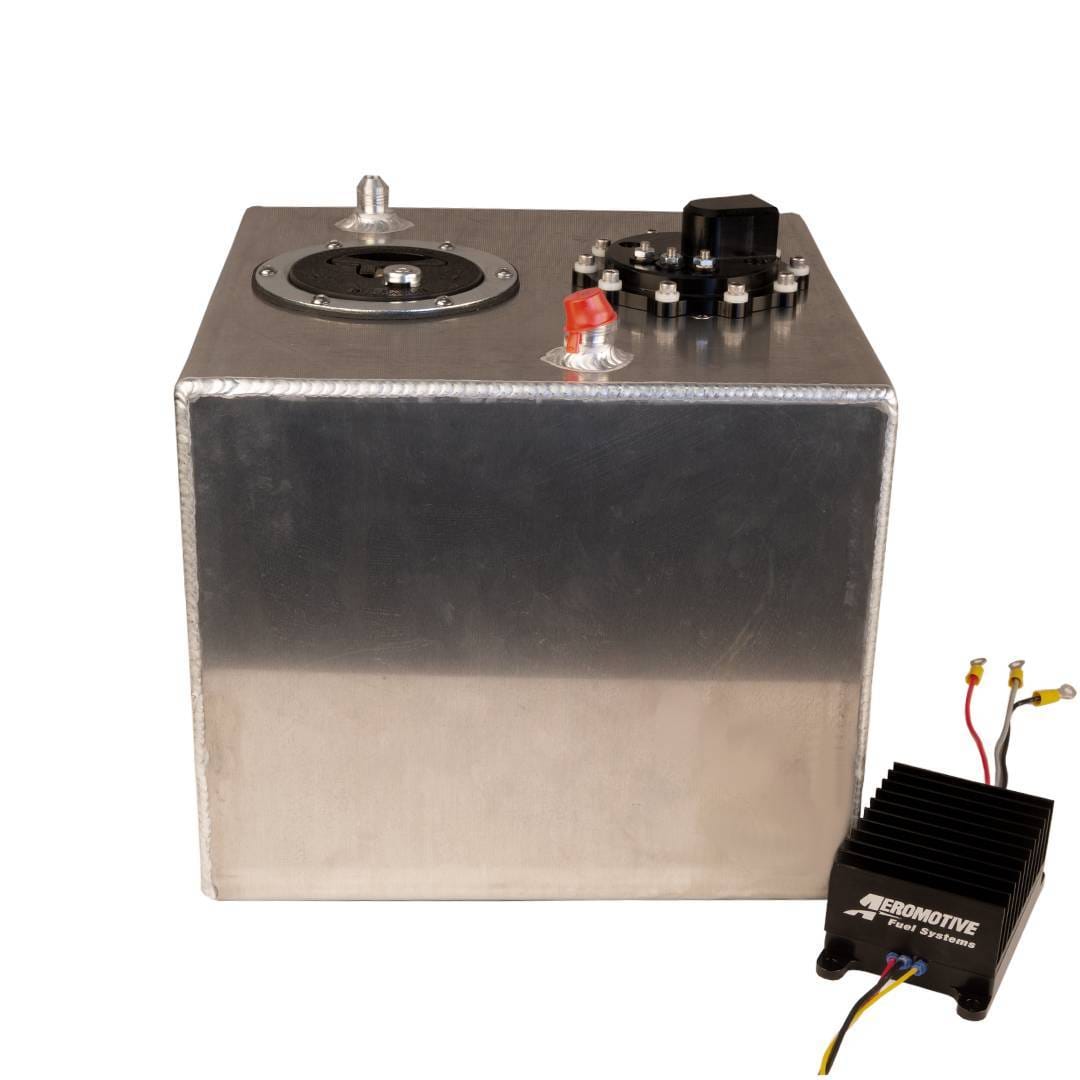

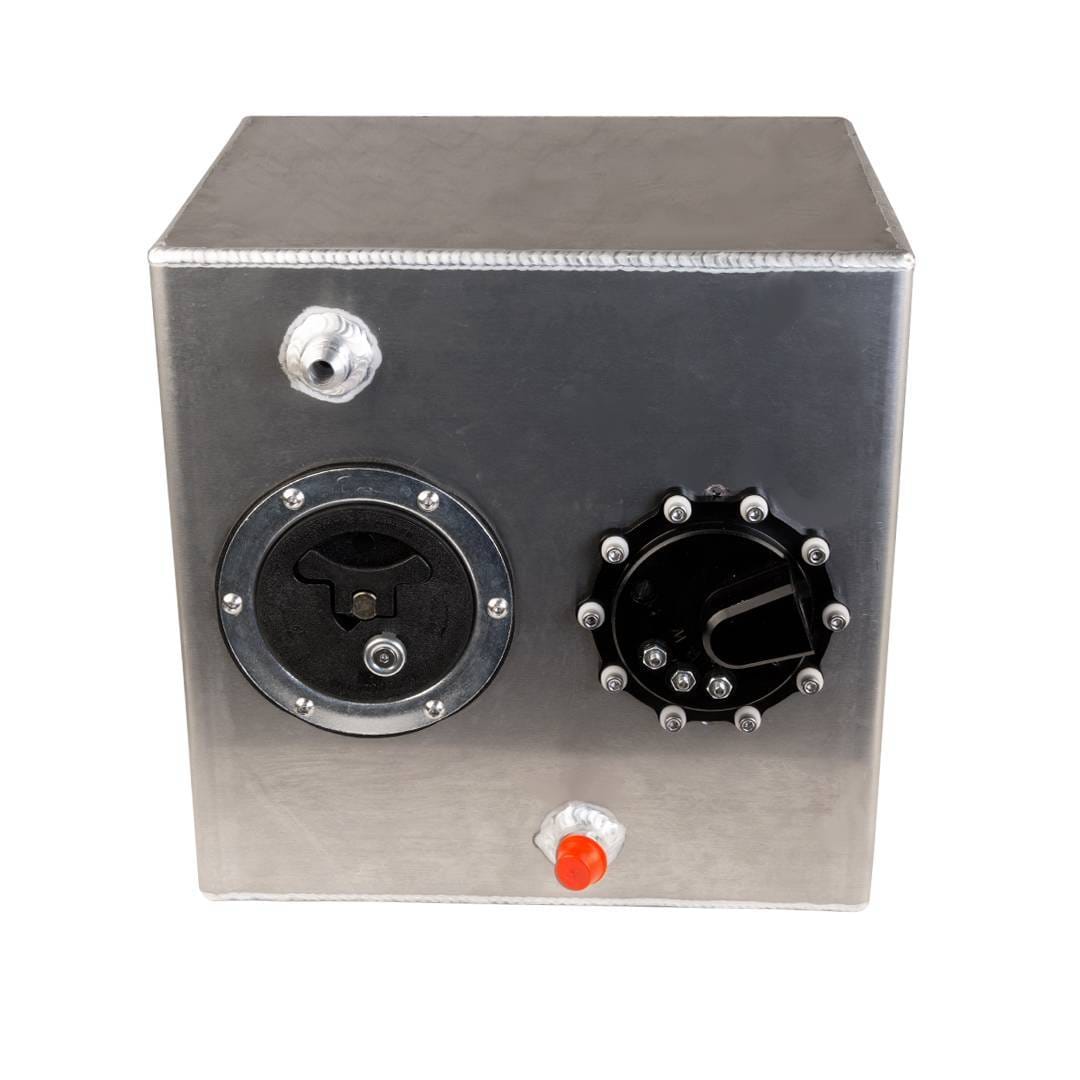

Aeromotive Stealth 6-Gallon Fuel Cell With Integrated 5 Gpm Variable Speed Brushless Fuel Pump - 90 Degree Outlet (Includes Pre-Pump Fuel Filter)

Aeromotive’s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.
What's Included In The Box?
Lighter than the traditional Pro-Series pumps.
Reduced current draw at higher, EFI pressures.
Extended service life in methanol and ethanol.
New integral spur-gear pumping mechanism.
90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
Integral, external brushless controller for a clean installation, cooler fuel, and enhanced reliability.
ORB-10 outlet port.
Requires straight 12-VDC to the 16-VDC power supply.
Not compatible with pulse-modulated systems or fuel pump speed controllers. 5 GPM Fuel Pump Power Specs: CARB or EFI Power Adder Fuel Min HP Max HP Fuel Injected Forced Induction Gas 1800 2700 Carbureted Naturally Aspirated E85 1512 2380 Fuel Injected Naturally Aspirated Gas 2340 3600 Fuel Injected Forced Induction E85 1260 1890 Fuel Injected Forced Induction Gas 1620 2600 Carbureted Forced Induction E85 1134 1820 Carbureted Naturally Aspirated Gas 2160 3400 Fuel Injected Naturally Aspirated E85 1638 2520
