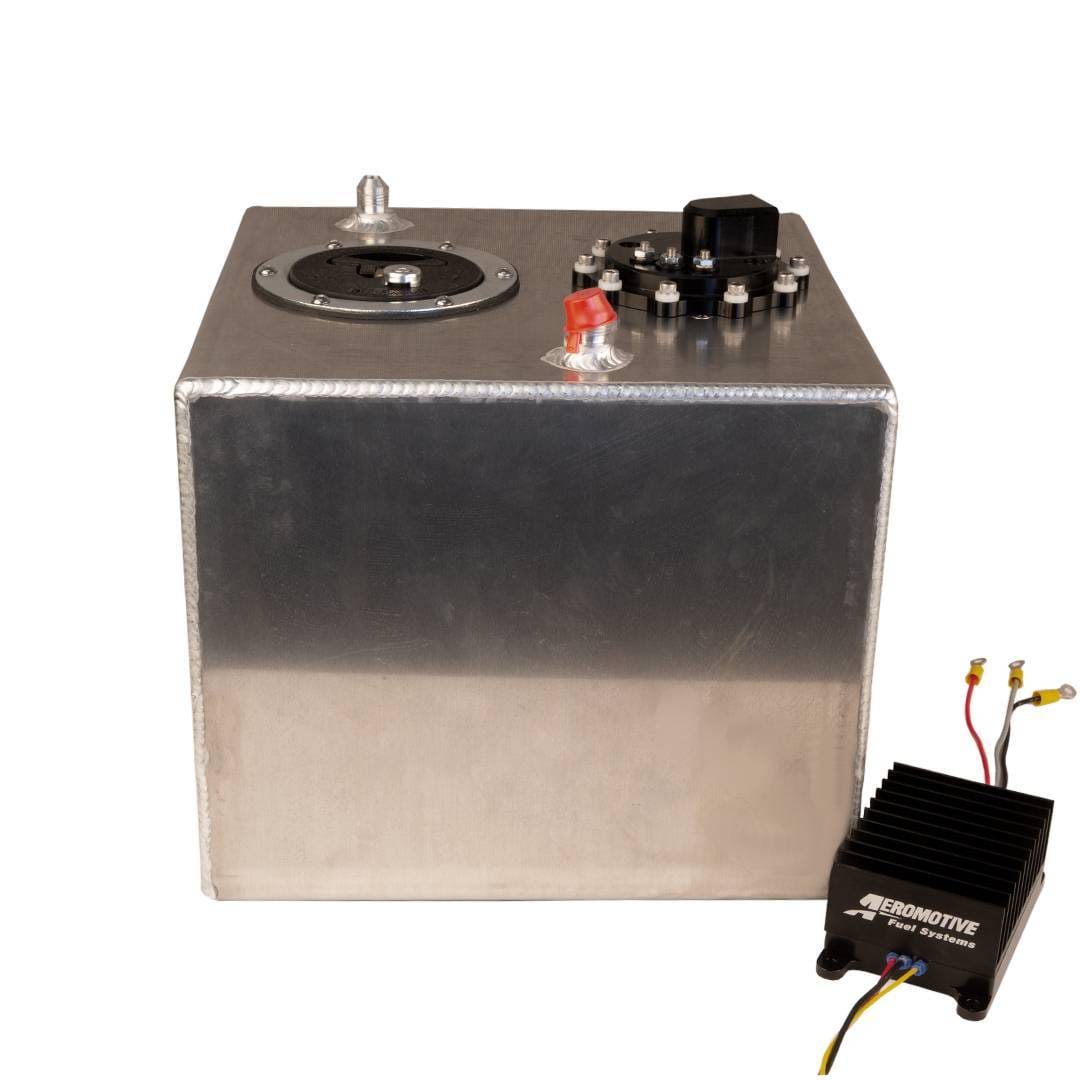

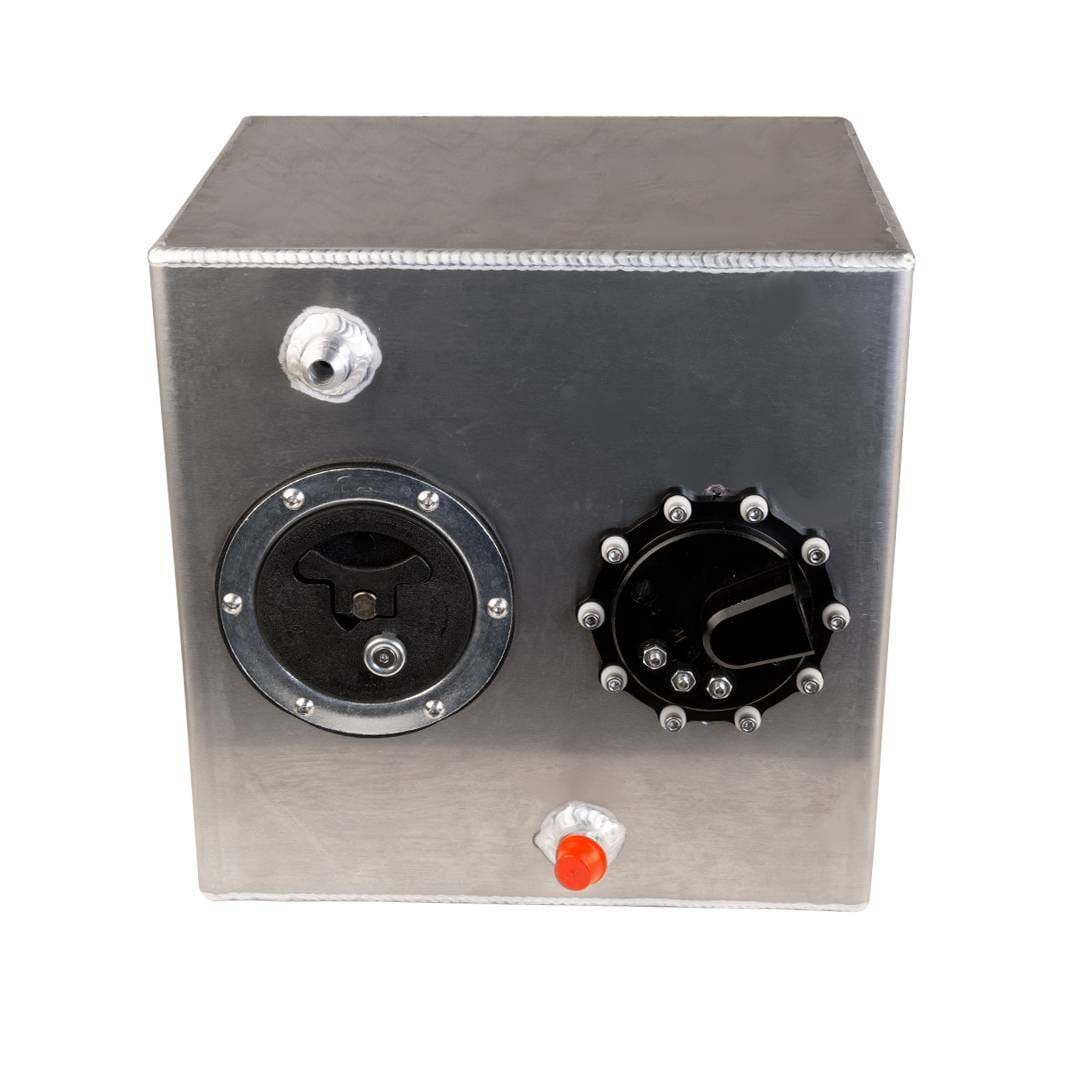

Aeromotive Stealth 6-Gallon Fuel Cell W/ Integrated 10 Gpm Variable Speed Brushless Fuel Pump (Includes Pre-Pump Fuel Filter) - 90 Degree Outlet

Aeromotive’s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.
Features:
Lighter than the traditional external mount pumps.
Reduced current draw at higher, EFI pressures.
Extended service life in methanol and ethanol.
New integral spur-gear pumping mechanism.
60-PSI continuous operating pressure and up to 100-PSI peak pressure, base plus boost.
Integral, external brushless controller for a clean installation, cooler fuel, and enhanced reliability.
ORB-12 inlet and ORB-10 outlet ports.
Requires straight 12-VDC to the 16-VDC power supply.
Not compatible with pulse-modulated systems or fuel pump speed controllers.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications. 10 GPM Fuel Pump Power Specs: CARB or EFI Power Adder Fuel Min HP Max HP Carbureted Forced Induction Gas 3420 5500 Carbureted Forced Induction E85 2160 3850 Carbureted Naturally Aspirated Gas 4860 7600 Fuel Injected Naturally Aspirated E85 3024 4830 Carbureted Naturally Aspirated E85 3402 5300 Fuel Injected Forced Induction Gas 3060 4900 Fuel Injected Forced Induction E85 2142 3430 Fuel Injected Naturally Aspirated Gas 4320 6900

Install Instructions
