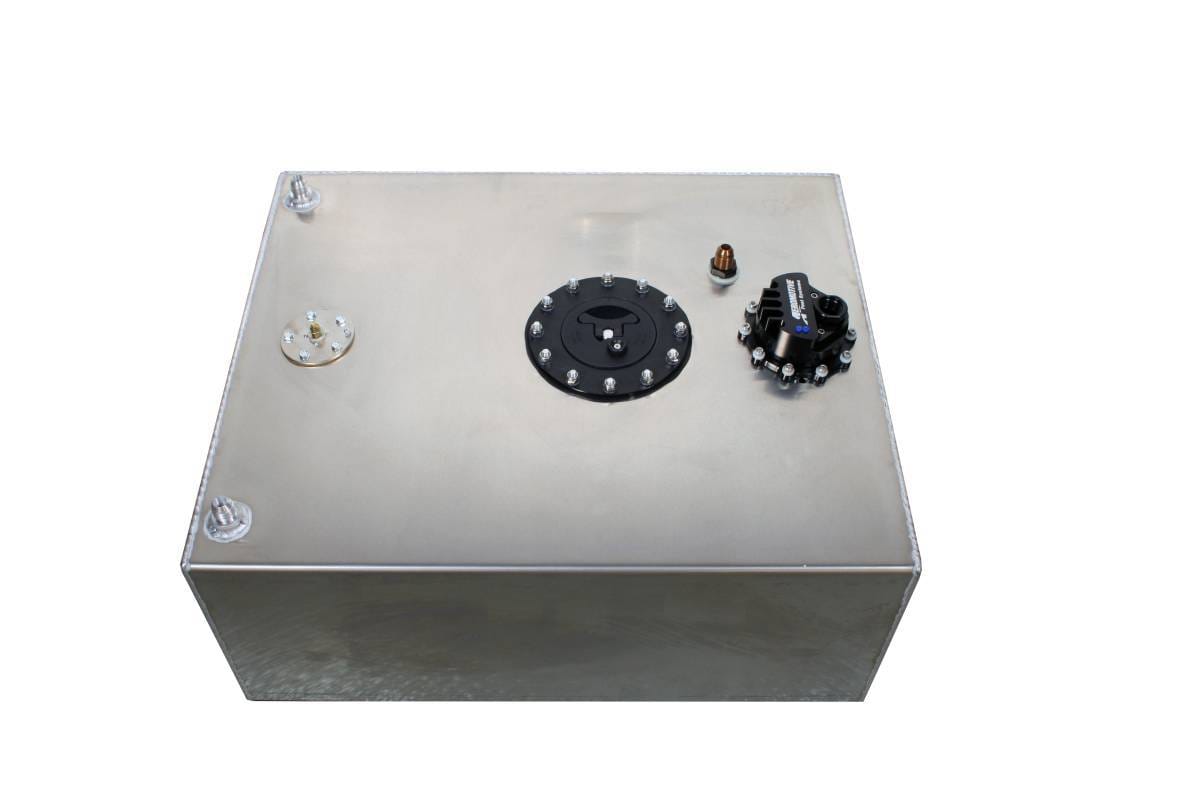

Aeromotive Stealth 20-Gallon Fuel Cell With Integrated Eliminator Variable Speed Brushless Fuel Pump - 90 Degree Outlet (Includes Pre-Pump Fuel Filter)

Aeromotive’s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.
Features:
Lighter than the traditional Pro-Series pumps.
Reduced current draw at higher, EFI pressures.
Extended service life in methanol and ethanol.
New integral spur-gear pumping mechanism.
90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
Integral, external brushless controller for a clean installation, cooler fuel, and enhanced reliability.
ORB-10 outlet port.
Requires straight 12-VDC to the 16-VDC power supply.
Not compatible with pulse-modulated systems or fuel pump speed controllers.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications. Eliminator Fuel Pump Power Specs: CARB or EFI Power Adder Fuel Min HP Max HP Fuel Injected Forced Induction Gas 850 1400 Carbureted Naturally Aspirated E85 892 1610 Fuel Injected Naturally Aspirated Gas 1105 1900 Carbureted Forced Induction E85 714 1190 Carbureted Forced Induction Gas 1020 1700 Fuel Injected Naturally Aspirated E85 773 1330 Carbureted Naturally Aspirated Gas 1275 2300 Fuel Injected Forced Induction E85 595 1190

Instructions
