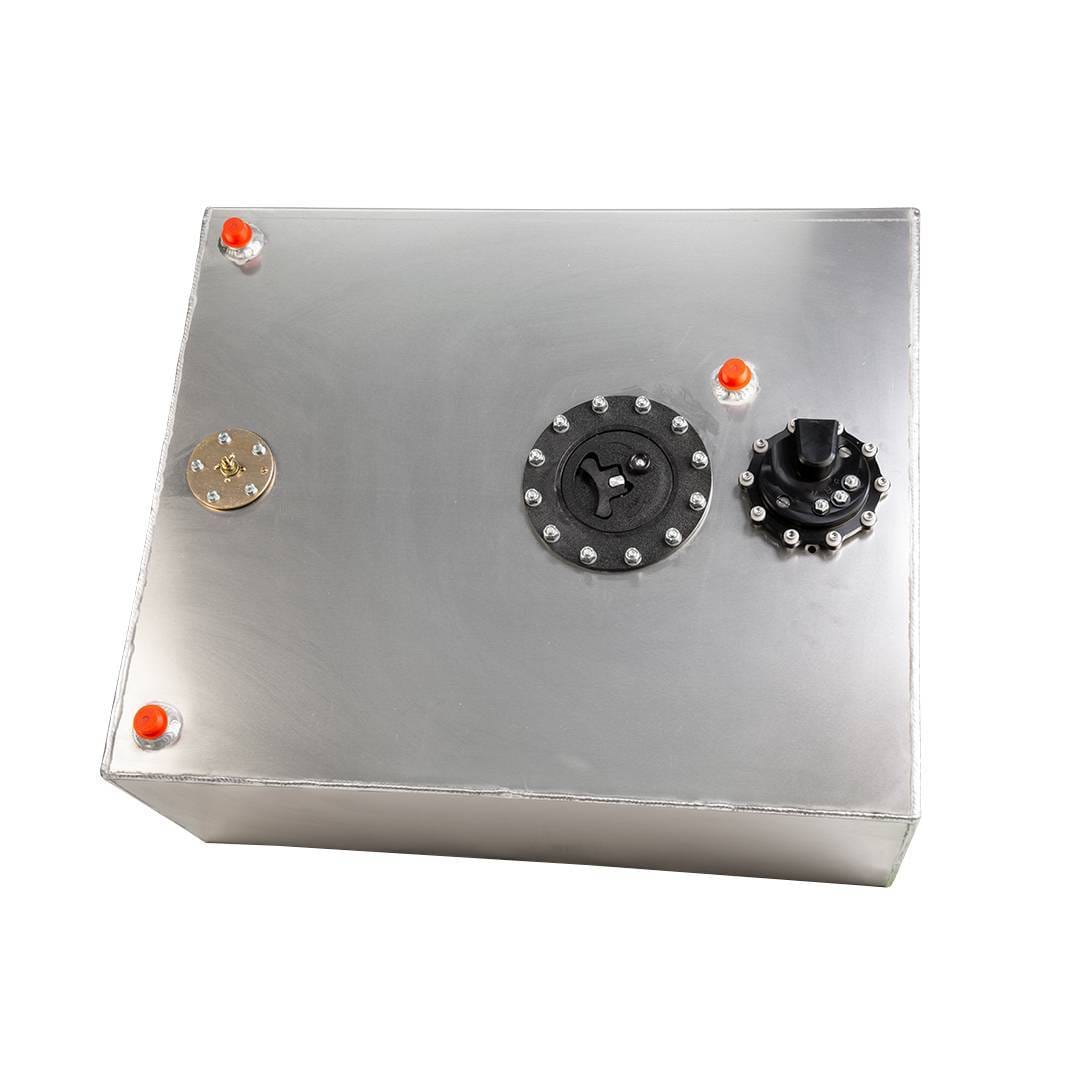

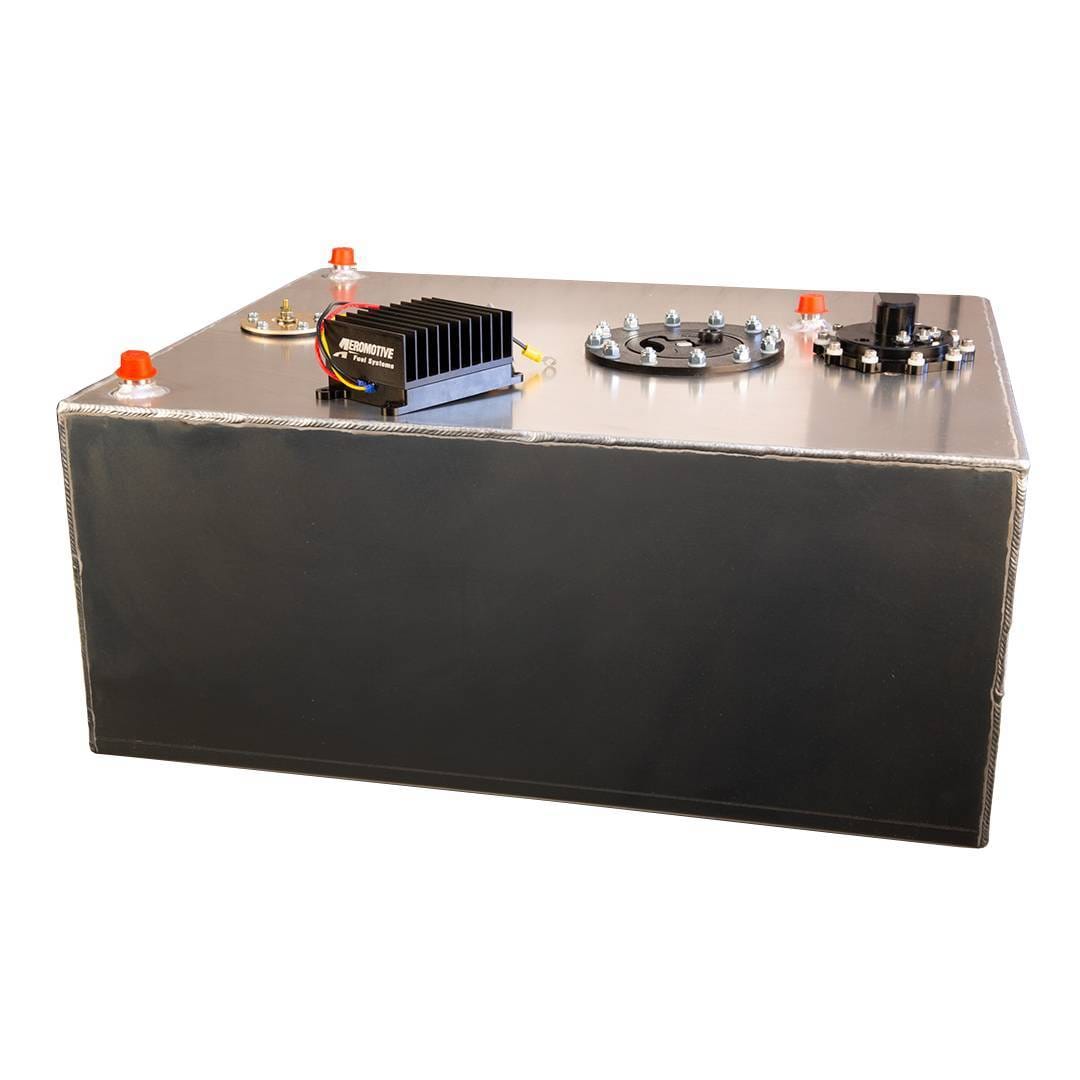

Aeromotive Stealth 20-Gallon Fuel Cell With Integrated 3.5 Gpm Variable Speed Brushless Fuel Pump - 90 Degree Outlet (Includes Pre-Pump Fuel Filter)

Aeromotive’s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.
Features:
Lighter than the traditional Pro-Series pumps.
Reduced current draw at higher, EFI pressures.
Extended service life in methanol and ethanol.
New integral spur-gear pumping mechanism.
90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
Integral, external brushless controller for a clean installation, cooler fuel, and enhanced reliability.
ORB-10 outlet port.
Requires straight 12-VDC to the 16-VDC power supply.
Not compatible with pulse-modulated systems or fuel pump speed controllers. 3.5 GPM Fuel Pump Power Specs: CARB or EFI Power Adder Fuel Min HP Max HP Fuel Injected Forced Induction Gas 1360 2000 Carbureted Naturally Aspirated E85 1064 1680 Fuel Injected Naturally Aspirated Gas 952 1260 Fuel Injected Forced Induction E85 1840 2600 Fuel Injected Forced Induction Gas 1520 2400 Carbureted Forced Induction E85 952 1400 Carbureted Naturally Aspirated Gas 1120 1800 Fuel Injected Naturally Aspirated E85 1288 1820

Instructions
