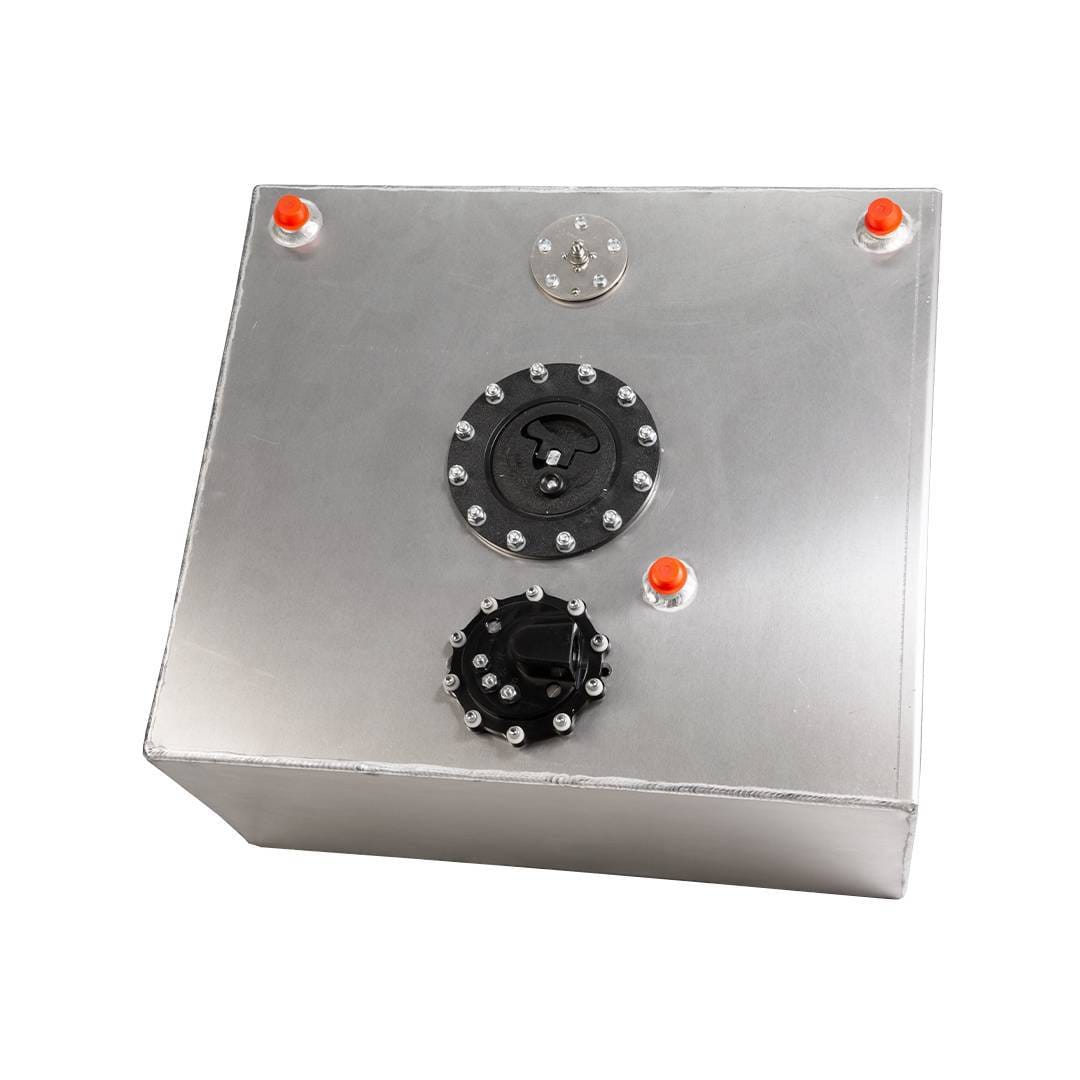

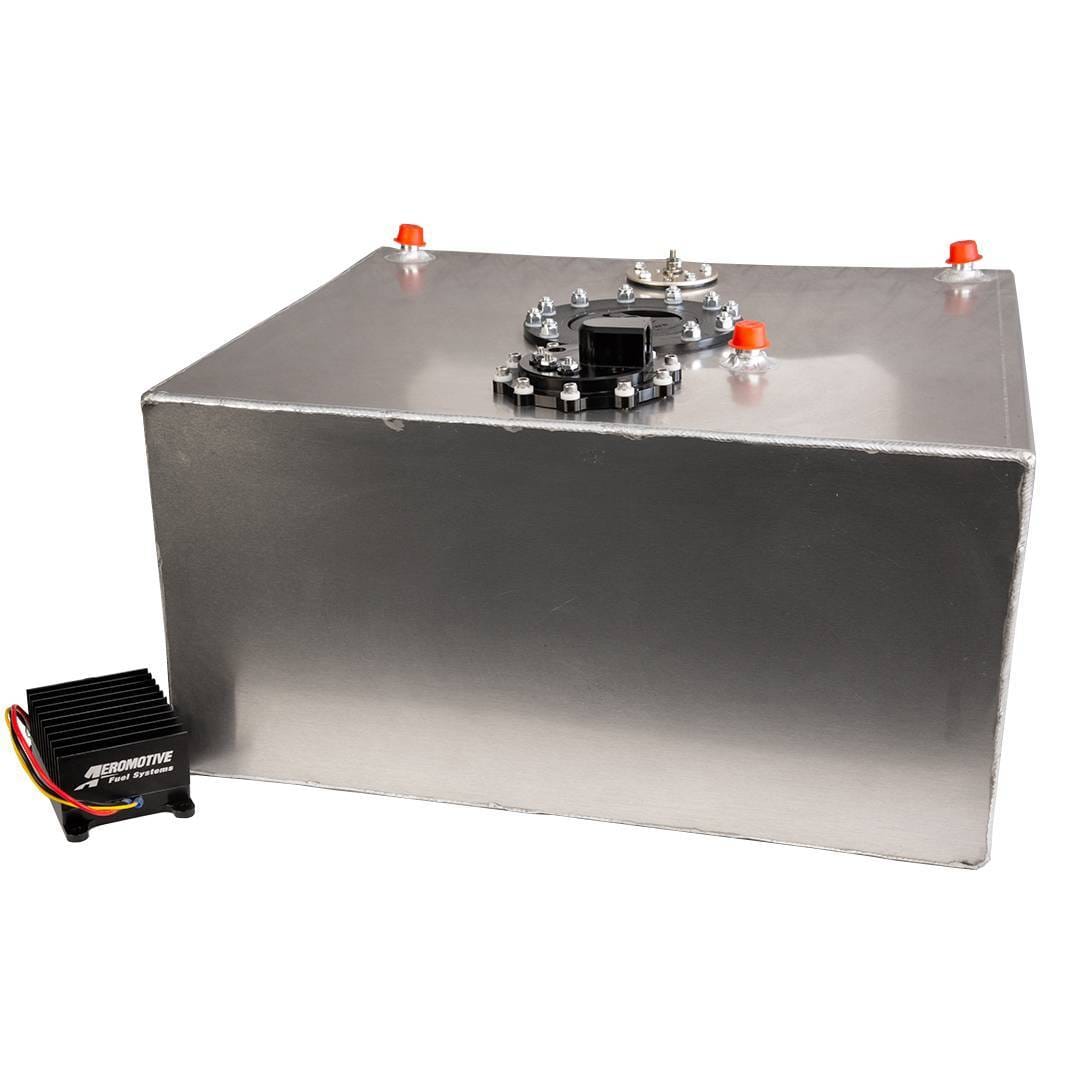

Aeromotive Stealth 15-Gallon Fuel Cell With Integrated A1000 Variable Speed Brushless Fuel Pump - 90 Degree Outlet (Includes Pre-Pump Fuel Filter)

Aeromotive’s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.
Features:
Lighter than the traditional A1000 pump.
Reduced current draw at higher, EFI pressures.
Extended service life in methanol and ethanol.
Integral, external brushless controller for a clean installation, cooler fuel, and enhanced reliability.
Quieter than the traditional A1000 pump.
ORB-10 inlet and outlet ports.
Requires straight 12-VDC to the 16-VDC power supply.
Not compatible with pulse-modulated systems or fuel pump speed controllers.
Includes 2 ea. P/N 12703 stainless steel t-bolt clamps for mounting. A1000 Fuel Pump Power Specs: CARB or EFI Power Adder Fuel Min HP Max HP Fuel Injected Forced Induction Gas 600 1000 Carbureted Naturally Aspirated Gas 800 1500 Fuel Injected Naturally Aspirated E85 500 910 Fuel Injected Naturally Aspirated E85 600 1050 Fuel Injected Naturally Aspirated Gas 720 1300 Carbureted Forced Induction Gas 700 1200 Carbureted Forced Induction E85 500 840 Fuel Injected Forced Induction E85 400 700

Instructions
