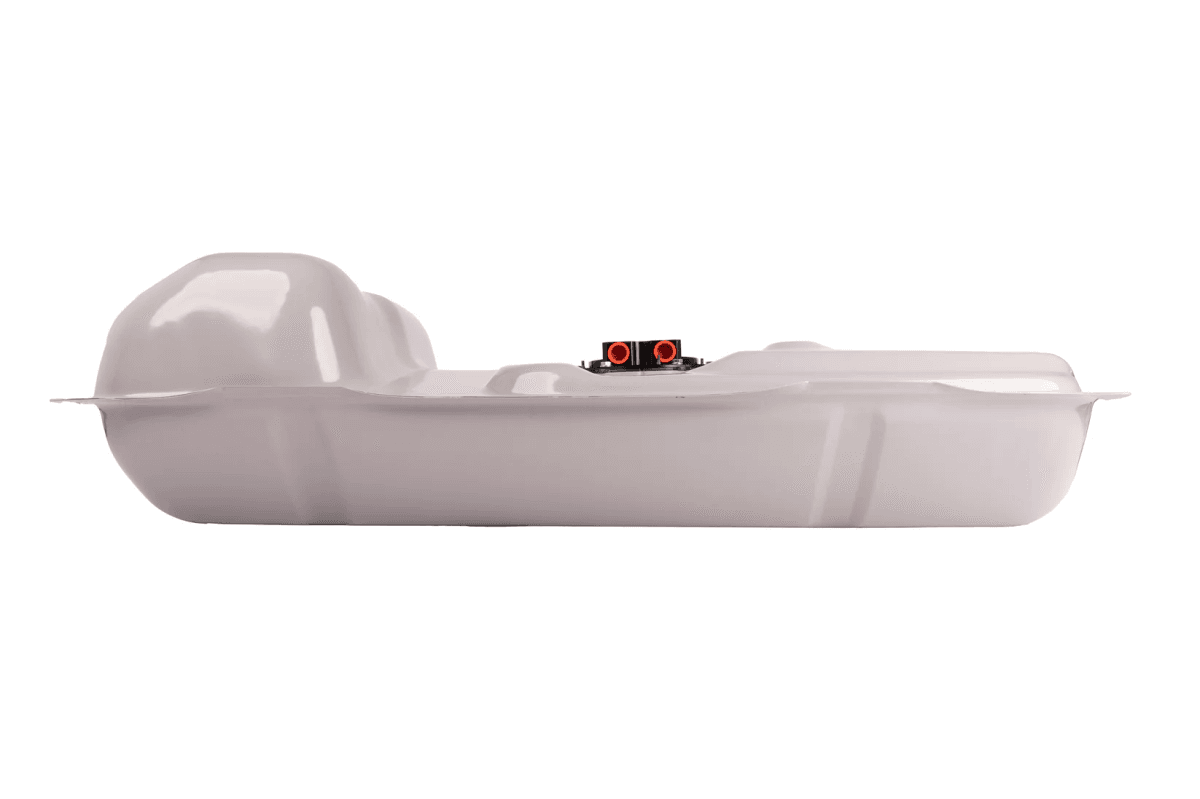

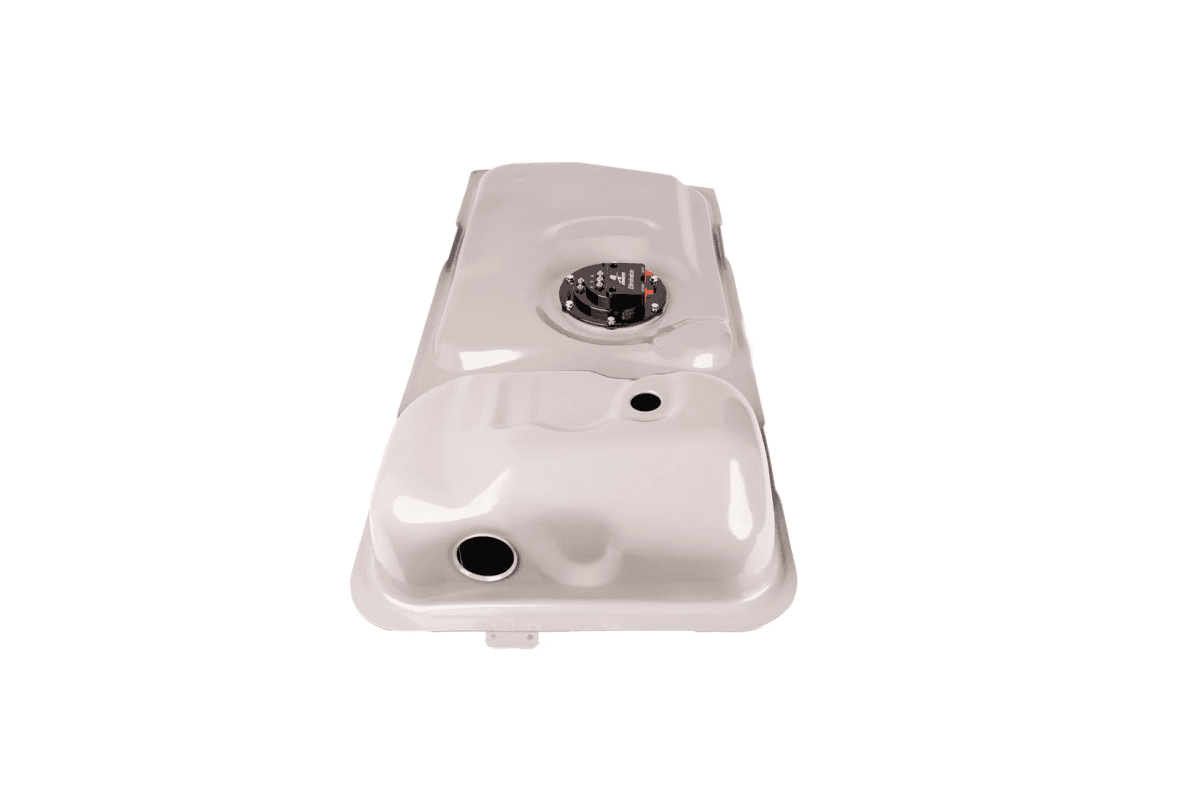

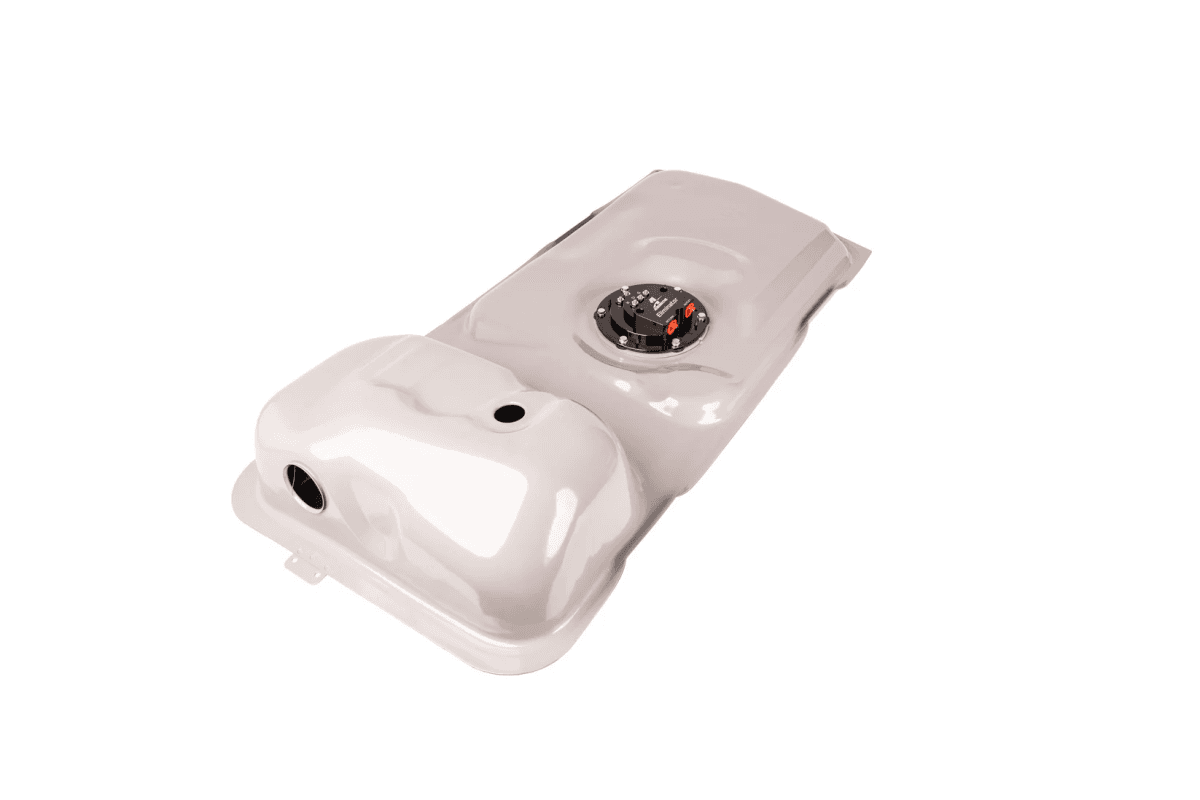

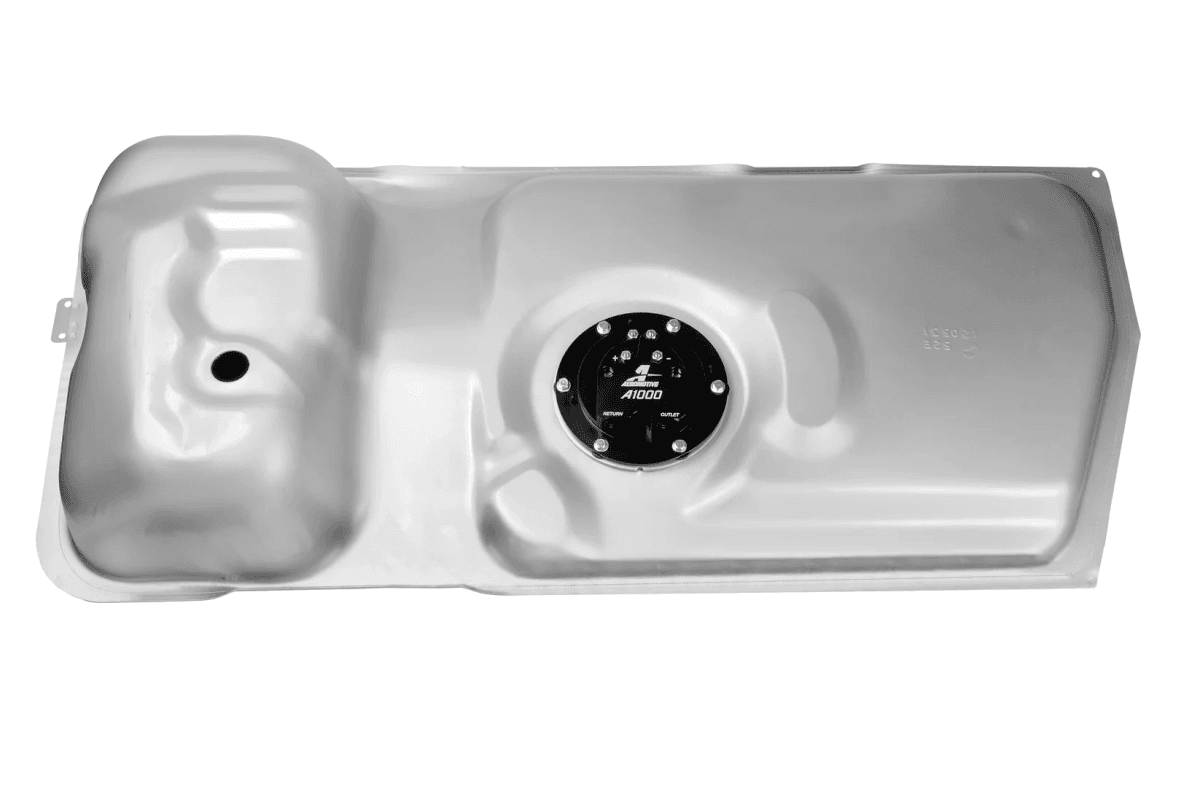

Aeromotive Stealth 15.7 Gallon "Stock Appearing" Fuel Tank W/ Brushless Eliminator Fuel Pump For 1986-1998.5 Ford Mustang

In 2003, Ford developed a specialized fuel tank for the 2003-2004 Mustang Cobras, featuring an advanced internal baffling system. When Ford discontinued these tanks in 2011, Aeromotive saw an opportunity to reproduce them and extend their compatibility to all Fox Body Mustangs. We not only recreated the 03-04 Cobra tanks but also modified them to fit Fox Bodies. Our Fox Body Stealth tanks provide top-tier performance with a stock appearance. Each tank includes an innovative baffling system and a built-in fuel pump, supporting nearly any horsepower demand with a pre-pump filter. These tanks are a direct bolt-in for 1986-1998 Ford Mustangs, though some modifications are necessary for compatibility with other Fox Body models from 1979 to 2004.
Features:
Built in Eliminator Fuel Pump
100-Micron Stainless Steel Pre Filter
(1) ORB-08 Outlet Port & (1) ORB-08 Return Port
Bolts right into factory location using factory tank straps
Wiring upgrade recommended
Requires the use a full return style system Recommended Parts:
P/N 13101 - EFI Bypass Regulator
P/N 12301 - 10-Micron Post Pump Filter
P/N 12305 - 2" Billet Filter Bracket
P/N 16301 - Fuel Pump Wiring Kit
P/N 14101 - 86-95 5.0L GT & Cobra Fuel Rail Kit or...
P/N 14103 - 96-04 4.6L SOHC GT Fuel Rail Kit or...
P/N 14104 - 96-98.5 4.6L DOHC Cobra Fuel Rail Kit
AN-08 Fuel Line Application Tips:
For 1979 to 1986 Mustangs, you must use an 1986 fuel level sending unit with 73-10 Ohms for the stock fuel level gauge. For 1987 to 1998 Mustangs you must use an 87-98 sending unit with 16-158 ohms for the stock fuel level gauge. If you have a factory 2003 or 2004 Cobra or Cobra Fuel Tank, it is a direct bolt-in to your 1998.5 to 2004 Mustang and you can use the Eliminator Stealth Fuel Pump P/N 18680. (Requires the use of 03-04 Cobra fuel level sending unit as well) Eliminator Fuel Pump Power Specs: CARB or EFI Power Adder Fuel Min HP Max HP Fuel Injected Forced Induction Gas 850 1400 Carbureted Naturally Aspirated E85 892 1610 Fuel Injected Naturally Aspirated Gas 1105 1900 Carbureted Forced Induction E85 714 1190 Carbureted Forced Induction Gas 1020 1700 Fuel Injected Naturally Aspirated E85 773 1330 Carbureted Naturally Aspirated Gas 1275 2300 Fuel Injected Forced Induction E85 595 1190

Instructions
