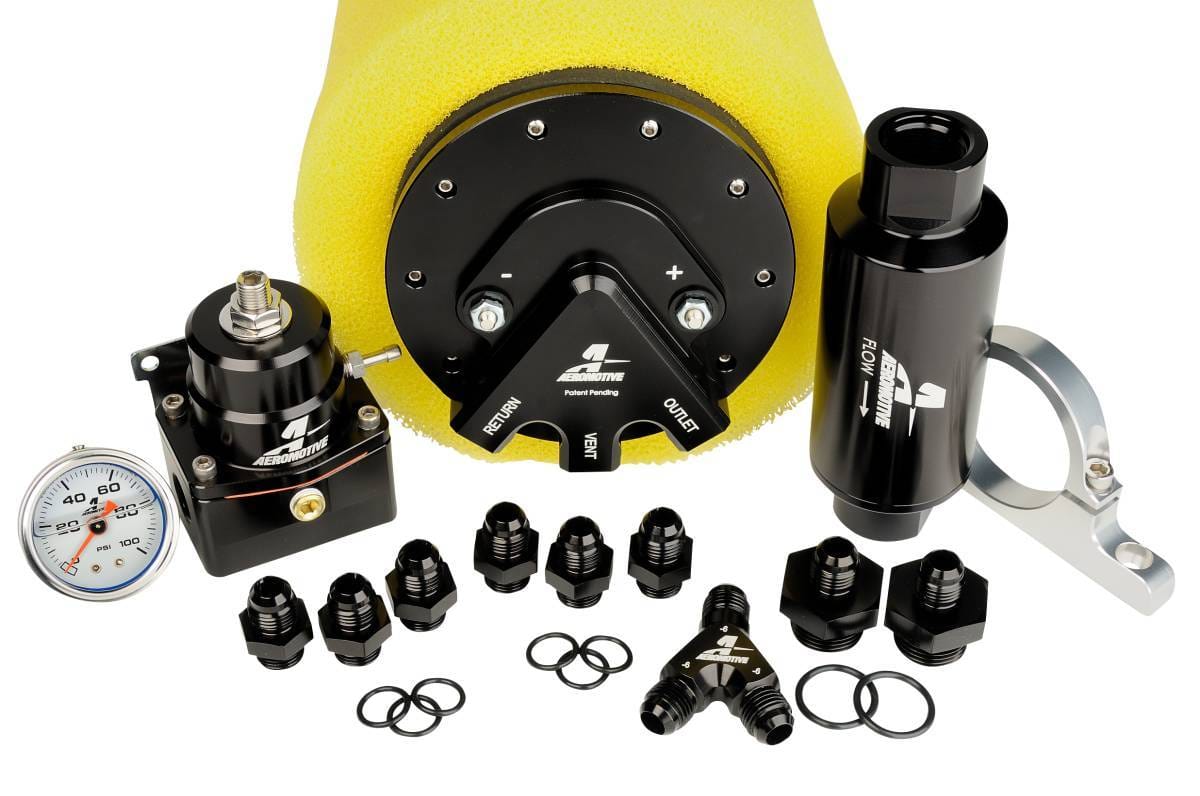

Aeromotive Phantom 340 Lph Complete In-Tank Fuel System - For Dual Efi Fuel Rail Applications (Return Style)

These new Phantom EFI Fuel Systems include all main fuel system components required to create a proper return-style EFI fuel system for engines with dual billet fuel rails, including the desired Phantom Baffled Fuel Pump Kit with a 340 LPH fuel pump. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications. Each system ships with the a custom black EFI bypass fuel pressure regulator, high-flow billet fuel filter, filter mounting bracket, hi-flow Y-block, plus all the required port fittings and o-rings, the deluxe wiring kit (not shown) and Aeromotive fuel pressure gauge. Ideal for naturally aspirated and blown, EFI engines producing from 300 - 700 plus flywheel Horse Power, on the street or at the track. AN-06 Style fuel hose and hose-ends are required for the installation of a fuel supply and return line, sold separately and not included.
Features:
Phantom 340 LPH Fuel Pump
Filter Assembly, 10-micron
Filter Bracket
Fuel Pressure Regulator
Fuel Pump Wiring Kit.
(6) AN-06 ORB to AN-06 flare
(2) AN-10 ORB to AN-06 flare
Fuel Pressure Gauge, 0-100 psi
Y-Block, AN-06 340 LPH Fuel Pump Power Specs: CARB or EFI Power Adder Fuel Min HP Max HP Fuel Injected Forced Induction E85 100 490 Carbureted Forced Induction Gas 400 850 Fuel Injected Naturally Aspirated Gas 400 850 Fuel Injected Naturally Aspirated E85 220 595 Carbureted Naturally Aspirated E85 325 700 Carbureted Naturally Aspirated Gas 500 1000 Carbureted Forced Induction E85 220 595 Fuel Injected Forced Induction Gas 350 700
