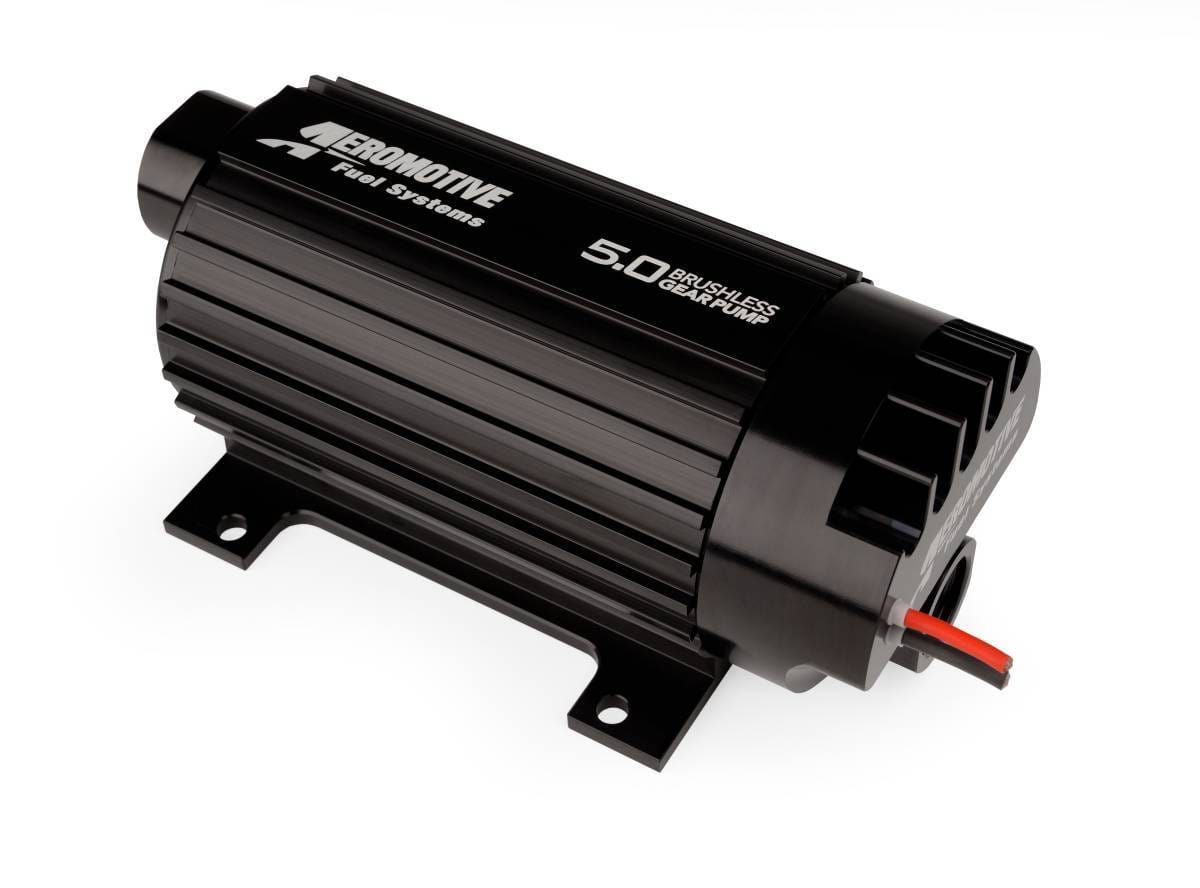

Aeromotive In-Line Signature Brushless Spur Gear 5.0 Gpm Fuel Pump - Gas & E85 Compatible

The market leader in fuel delivery systems and components, Aeromotive introduces its first brushless fuel pump series. The 3.5 Brushless Gear pump provides the Pro-Series Fuel Pump performance the world has come to trust and depend on, now available with the latest Spur-Gear pumping mechanism and brushless-motor technology. Built for up to 90 psi of sustained pressure, this new pump supports Pro-Series flow at higher pressures with minimal drop in flow. This new brushless spur-gear pump is able to move more fuel and sustain higher pressures without failure. Notes: Works with Pump/Race Gas & Ethanol/Methanol Fuels
Features:
ORB-12 inlet and ORB-10 outlet ports.
For EFI applications use regulator P/N 13134 or P/N 13305.
For carbureted applications use regulator P/N 13202 or P/N 13212.
Capable of 90-PSI continuous operating pressure, 150 PSI peak pressure, base plus boost.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Perfect for 'blow-through' carbureted engines up to 2,000 FWHP.
Upgrade your standard brushless pump to make it True Variable Speed by buying the 18047 retrofit kit cap Max Fuel Pump HP Output:
Fuel injected engines: GAS
up to 2400 FWHP - naturally aspirated
up to 1800 FWHP - forced air induction Carbureted engines: GAS
Up to 2600 FWHP - naturally aspirated
Up to 2000 FWHP - forced air induction Fuel injected engines: E85
up to 1680 FWHP – naturally aspirated
up to 1260 FWHP – forced air induction Carbureted engines: E85
Up to 1820 FWHP – naturally aspirated
Up to 1400 FWHP – forced air induction Fuel injected engines: METHANOL
up to 840 FWHP – naturally aspirated
up to 630 FWHP – forced air induction Carbureted engines: METHANOL
Up to 910 FWHP – naturally aspirated
Up to 700 FWHP – forced air induction

Instructions
