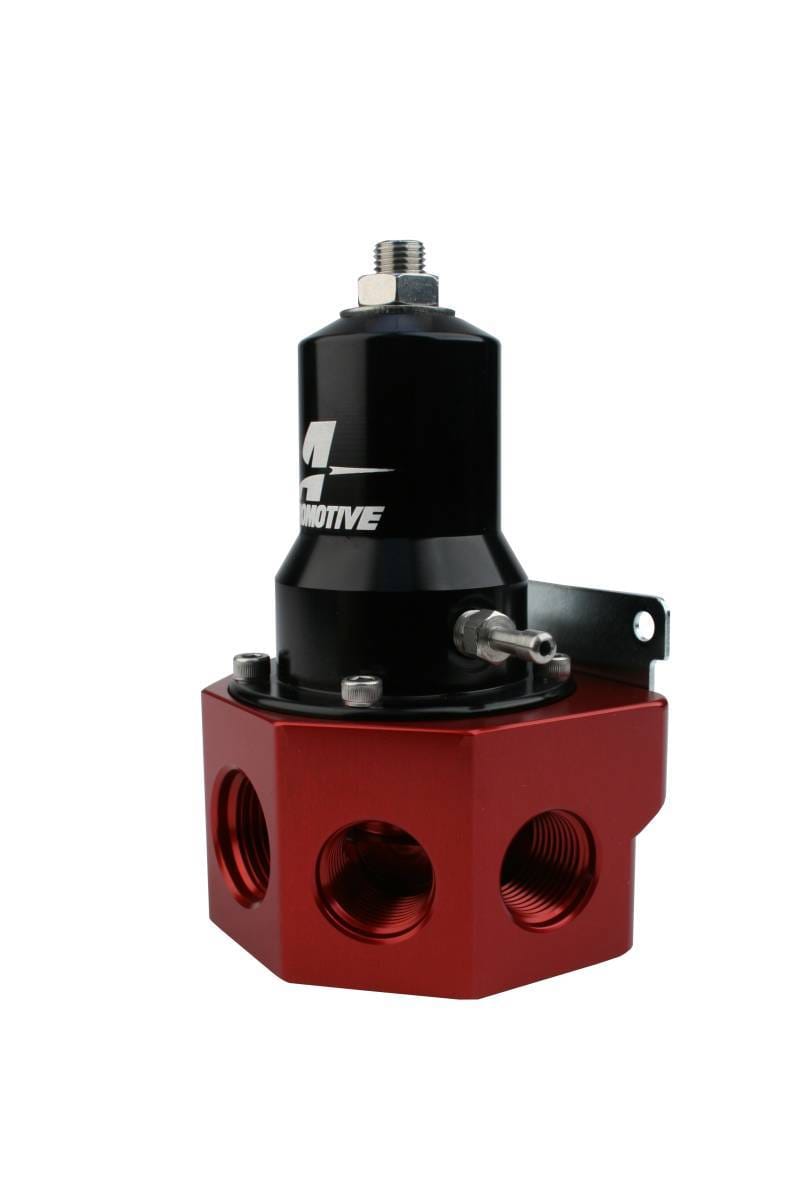

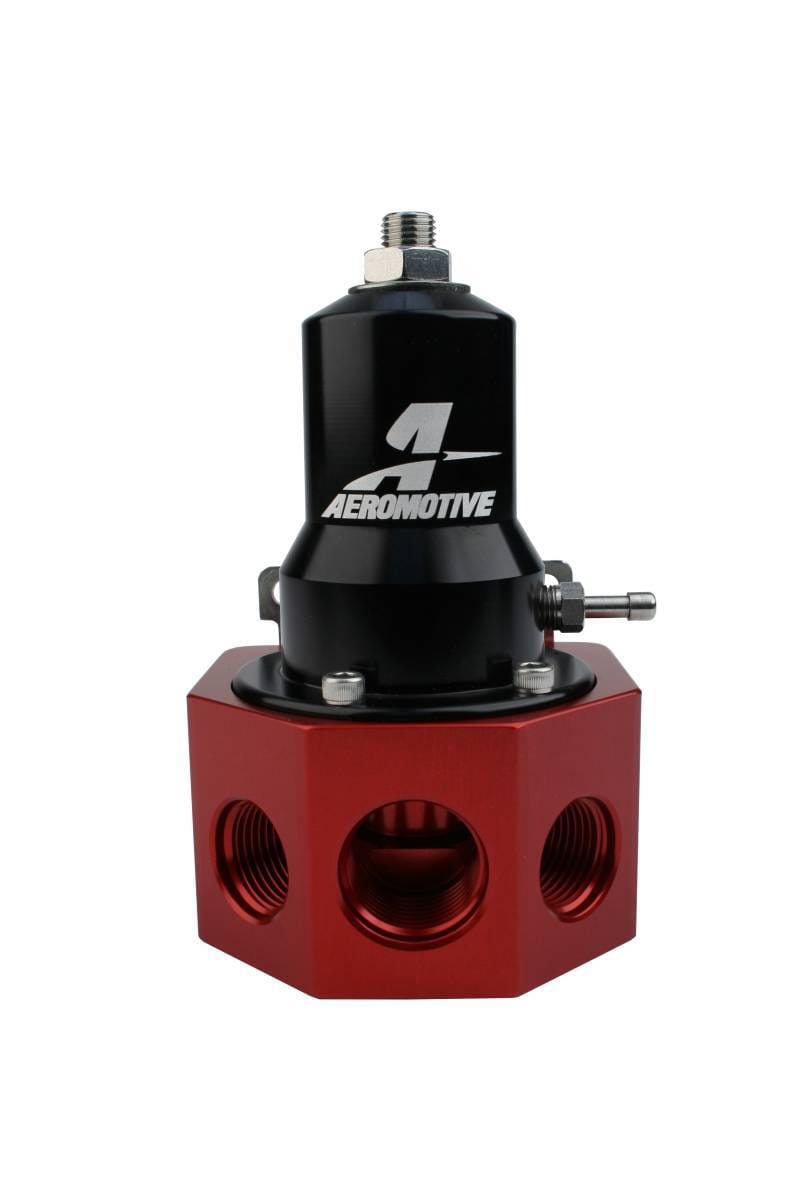

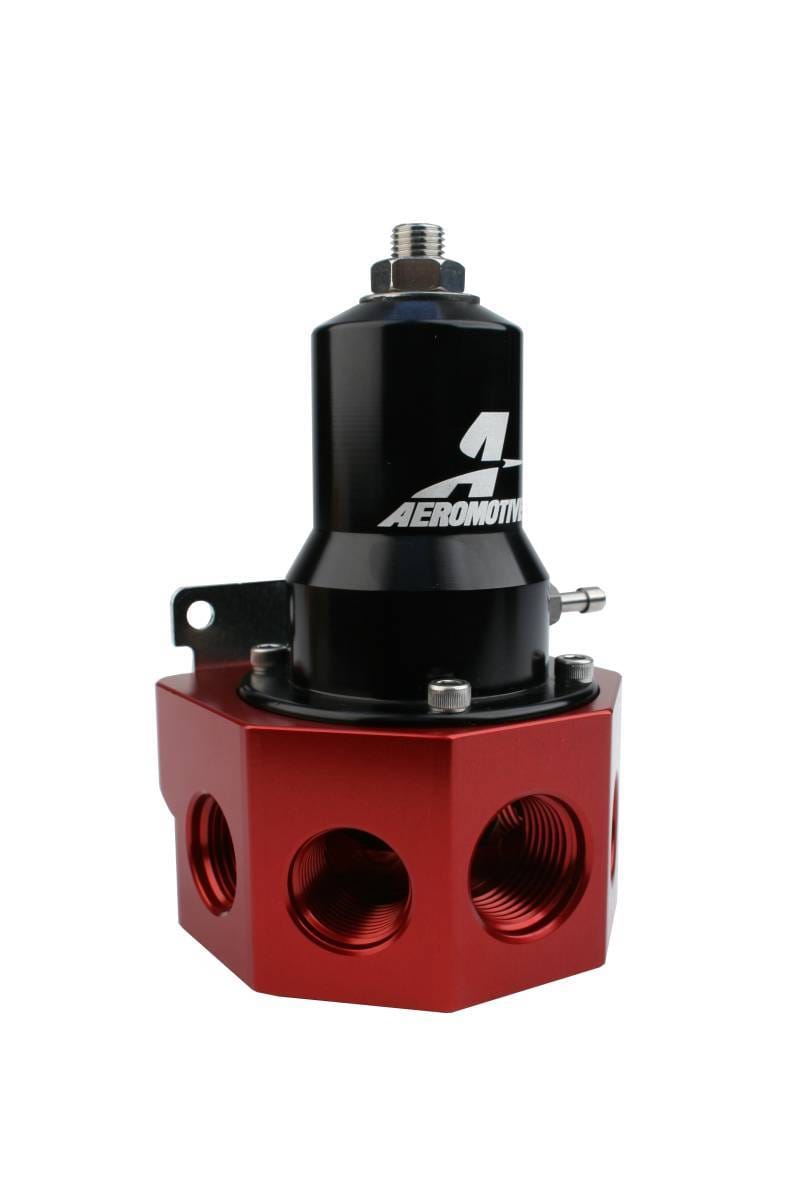

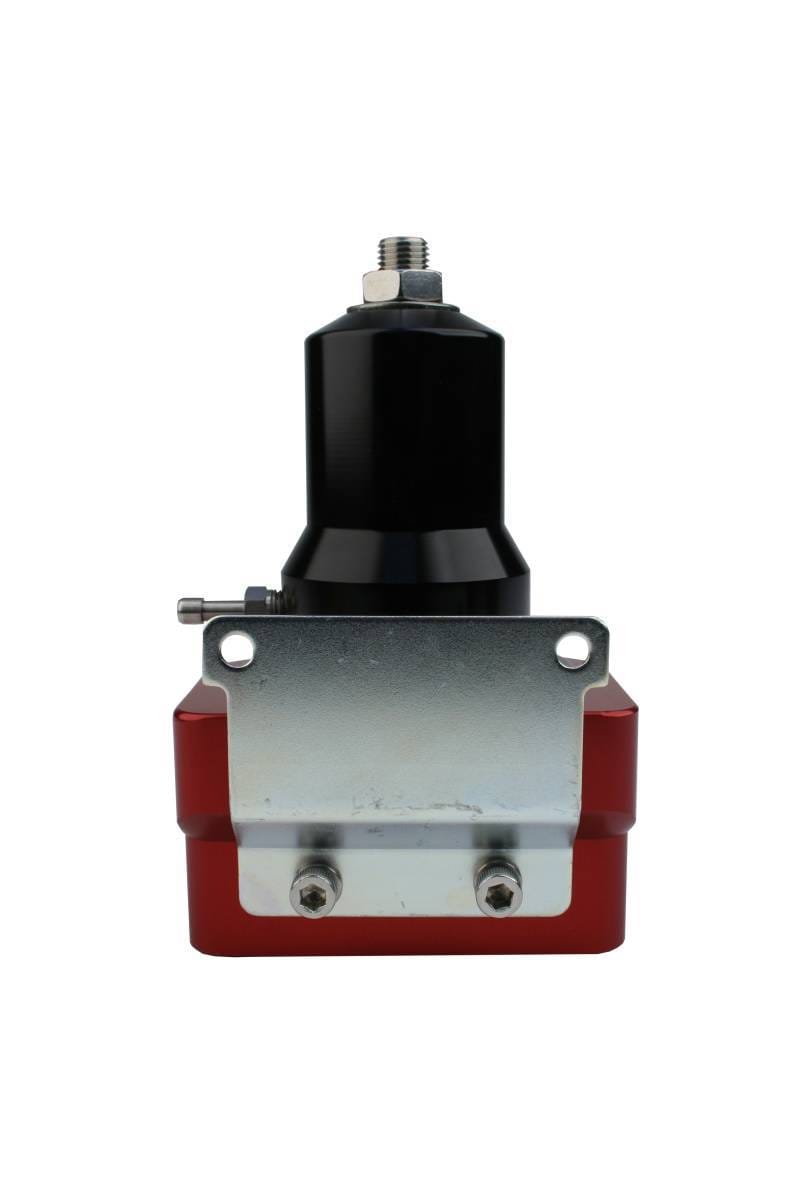

Aeromotive Extreme Flow Efi Regulator For Belt/Hex Driven Fuel Pumps - Black Anodized W/ Red Base

Extreme Flow EFI Regulator Designed for use with Belt or Hex Drive Fuel Pumps. Expanded 5-port body with one AN-10 inlet port plus four AN-08 outlet ports and one AN-10 return port. 0.500 High Flow Valve/Seat, able to handle 7-26 GPM Fuel Pump. Dual Springs expand operating pressure range while maintaining a low profile and reduced weight. Standard spring (installed) supports 30-75 PSI base fuel pressure. High pressure spring (included) supports 75-120 PSI base fuel pressure. Supports vacuum and boost reference on a 1:1 ratio with PSI.
Features:
Designed for use with Belt or Hex Drive Fuel Pumps .
Expanded, 5-Port Body with 1 - AN-10 plus 4 – AN-08 inlet/outlet ports, and one AN-10 return port.
0.500" High Flow Valve/Seat, able to handle 7-26 GPM Fuel Pumps
Dual Springs expand operating pressure range while maintaining a low profile and reduced weight.
Standard spring (installed) supports 30-75 PSI base fuel pressure.

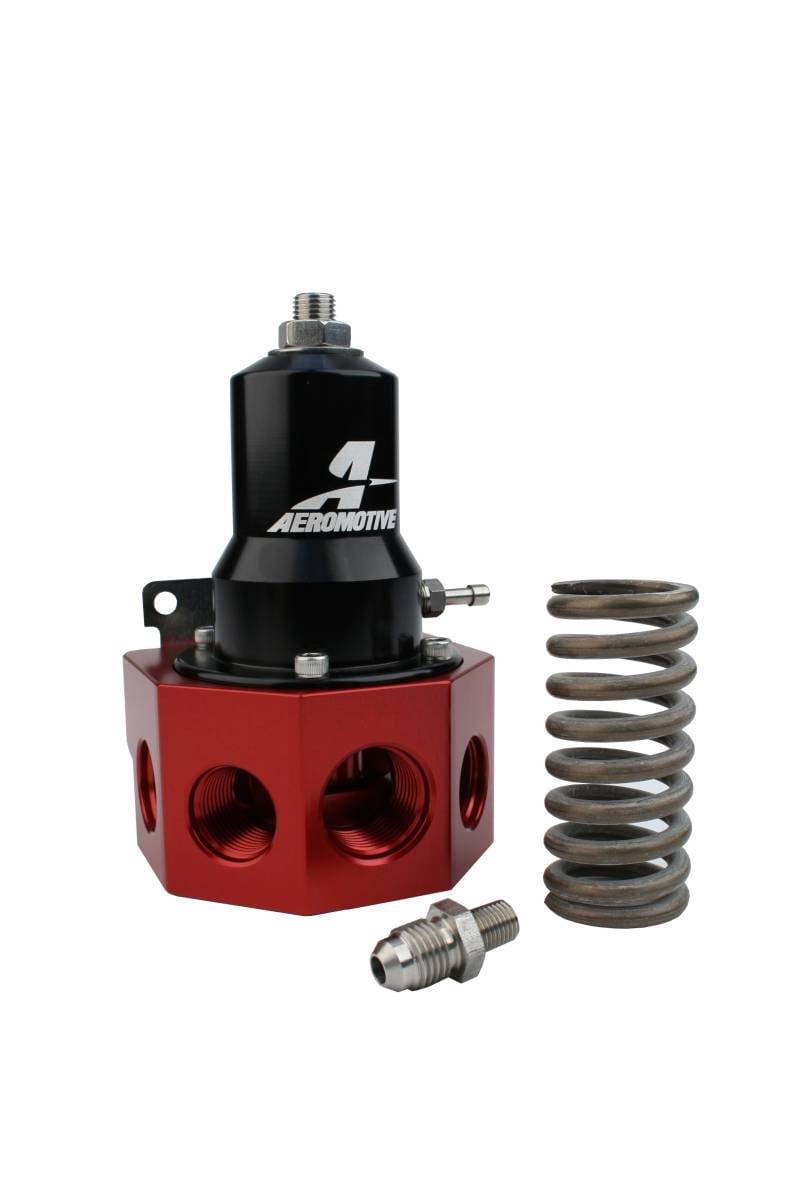

High Pressure spring (included) supports 75-120 PSI base fuel pressure.
Supports vacuum and boost reference on a 1:1 ratio with PSI
This product is not legal for sale or use on emission-controlled vehicles except when used on a dedicated race vehicle.
