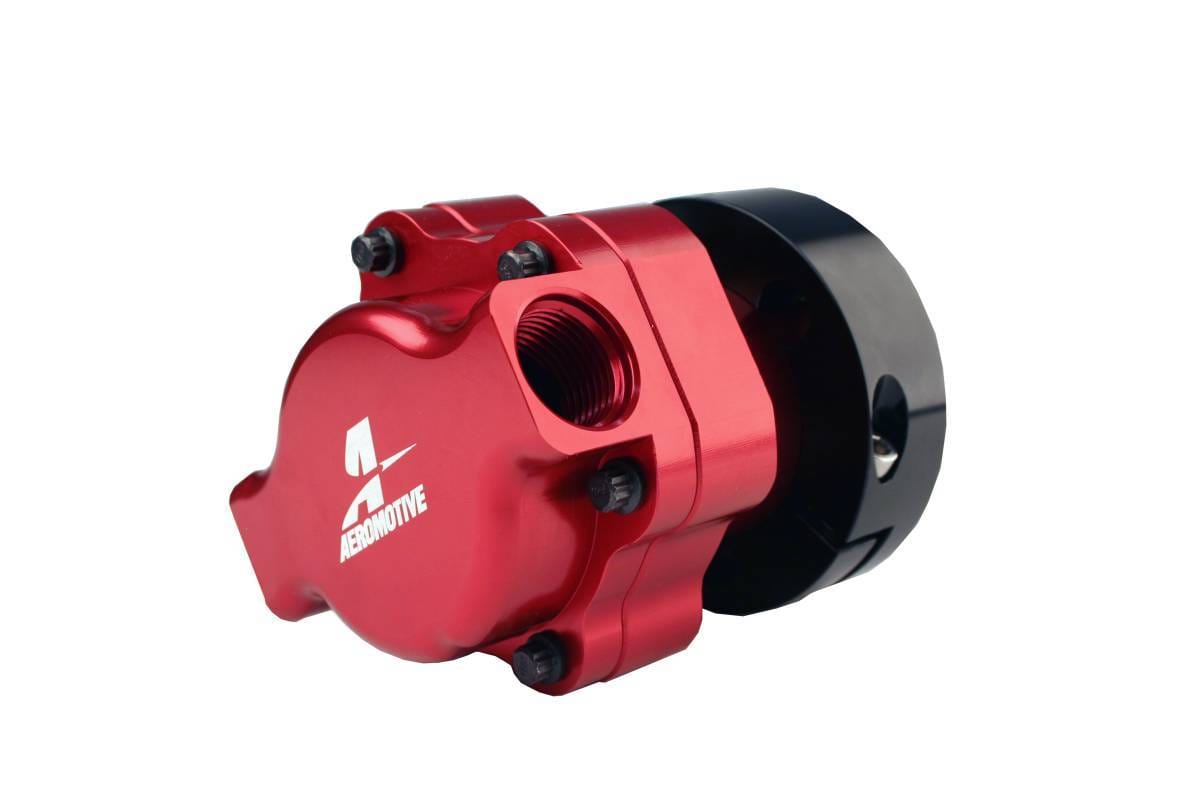

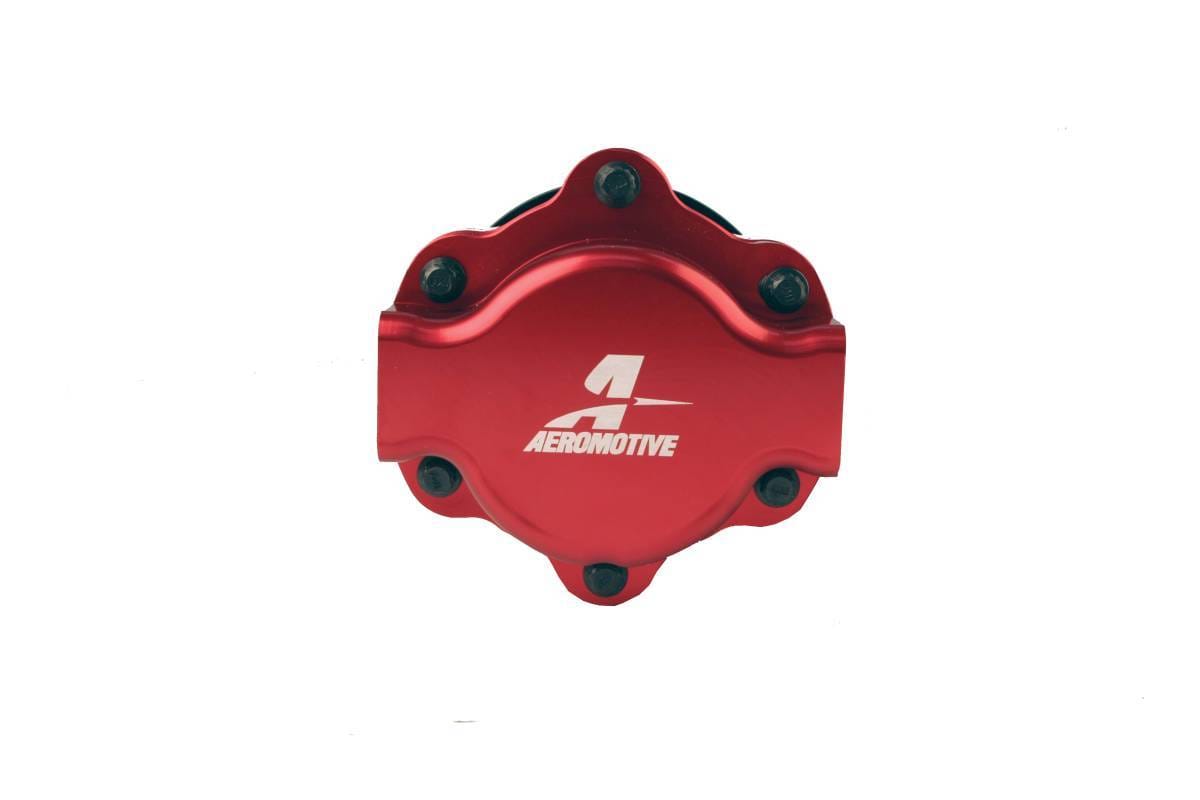

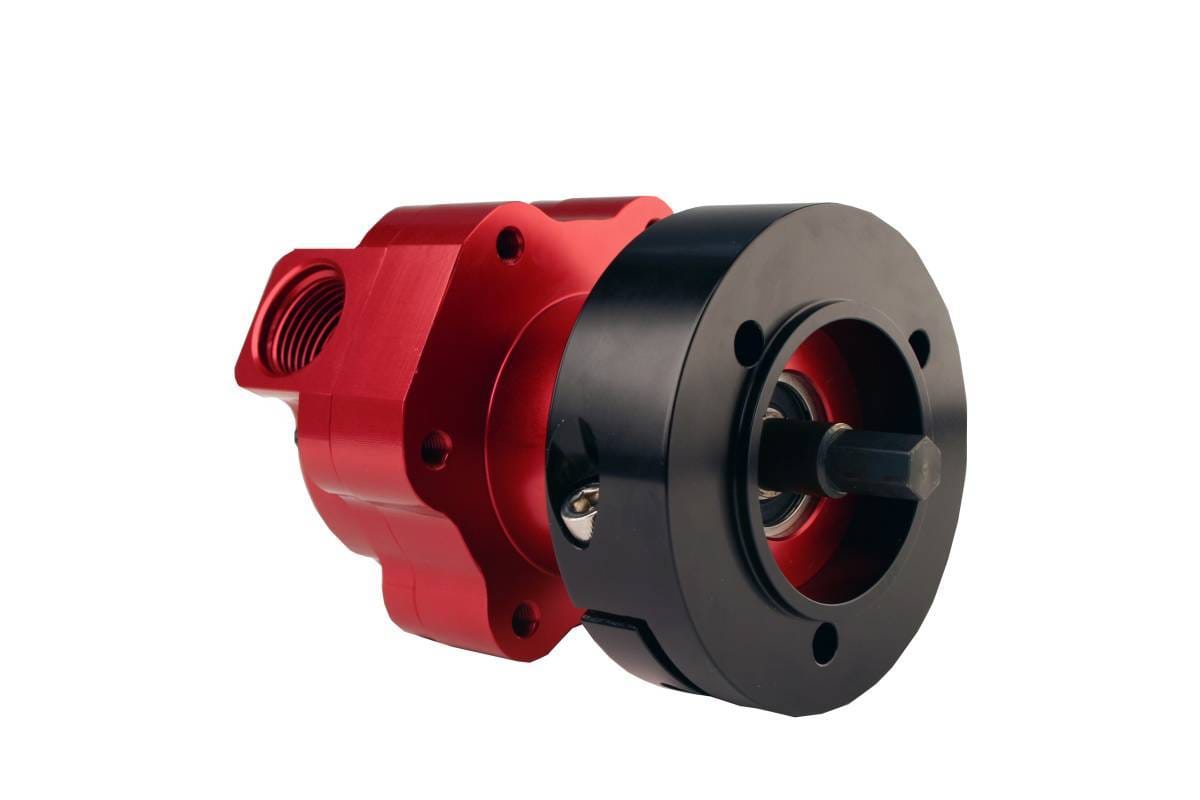

Aeromotive Billet Hex Drive 6 Gpm Mechanical Fuel Pump

Zero amperage draw, less weight, and more flow! The Aeromotive Billet Belt Drive Fuel Pump was designed to solve fuel delivery problems in high horsepower, forced-induction EFI applications, as well as the now popular, carbureted applications on gas or methanol. Notes: works with Pump/Race Gas & Ethanol/Methanol Fuels
Features:
Compact size facilitates easy mounting.
Billet aluminum CNC-machined body, not 'cast'.
This product is not legal for sale or use on emission-controlled vehicles except when used on a dedicated race vehicle.
ORB-10 inlet and outlet ports.
For EFI applications use regulator P/N 13145, 13134.
Carbureted gasoline applications require regulator P/N 13202 or P/N 13212.
Alcohol carbureted applications require Double Adjustable Regulator P/N 13209 or 13214.
1/2" Drive Shaft with 1/8" key.
Bracket and Cog Pulley sold separately. (see Accessories)
Available as a kit (P/N 17140) includes: Pump, Bracket and Pump Pulley. Max Fuel Pump HP Output:
Fuel injected engines: GAS
up to 3800 FWHP – naturally aspirated
up to 2920 FWHP – forced air induction Carbureted engines: GAS
Up to 3900 FWHP – naturally aspirated
Up to 3020 FWHP – forced air induction Fuel injected engines: E85
up to 2710 FWHP – naturally aspirated
up to 2110 FWHP – forced air induction Carbureted engines: E85
Up to 2810 FWHP – naturally aspirated
Up to 2210 FWHP – forced air induction Fuel injected engines: METHANOL
up to 1,450 FWHP – naturally aspirated
up to 1000 FWHP – forced air induction Carbureted engines: METHANOL
Up to 1,550 FWHP – naturally aspirated
Up to 1050 FWHP – forced air induction

Instructions
