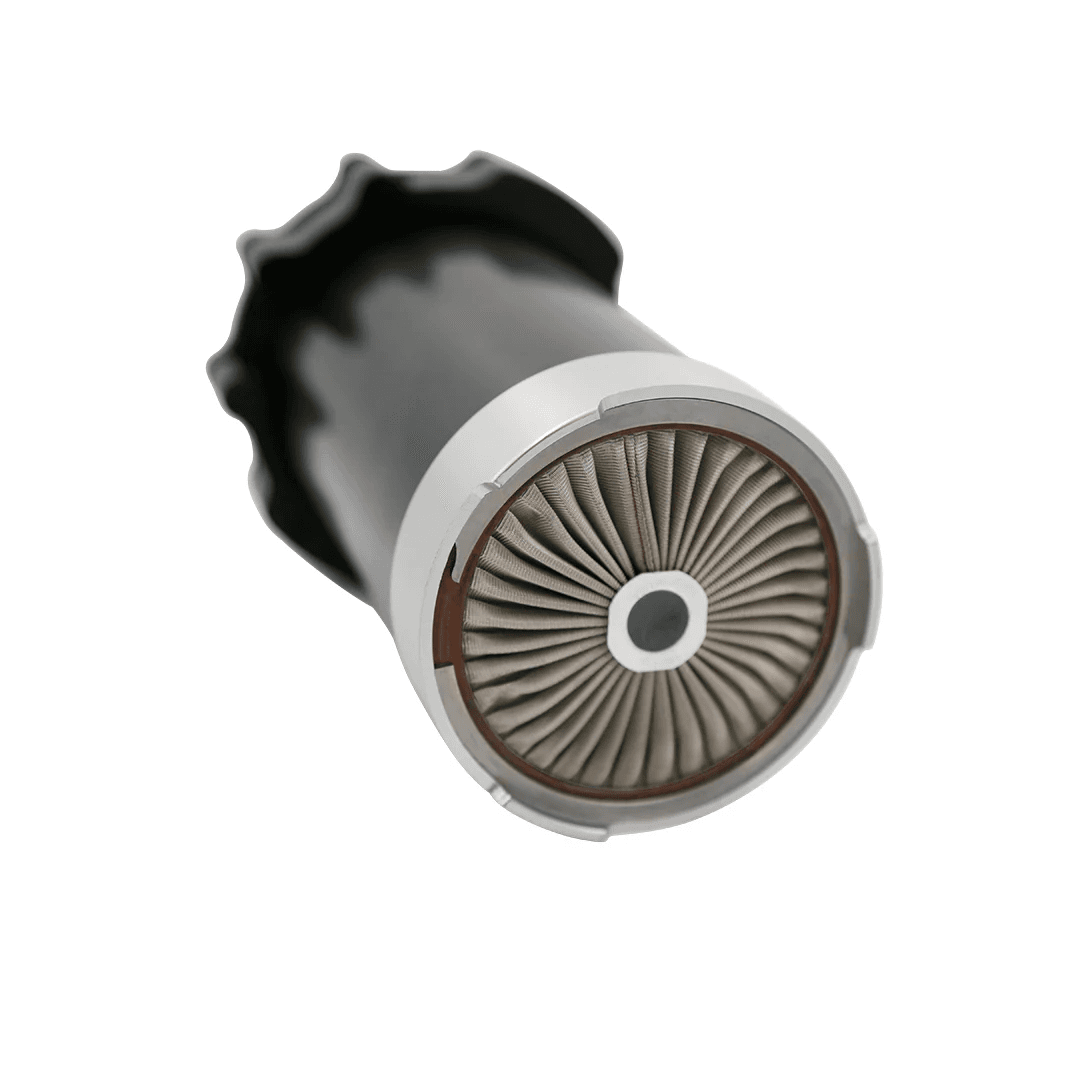

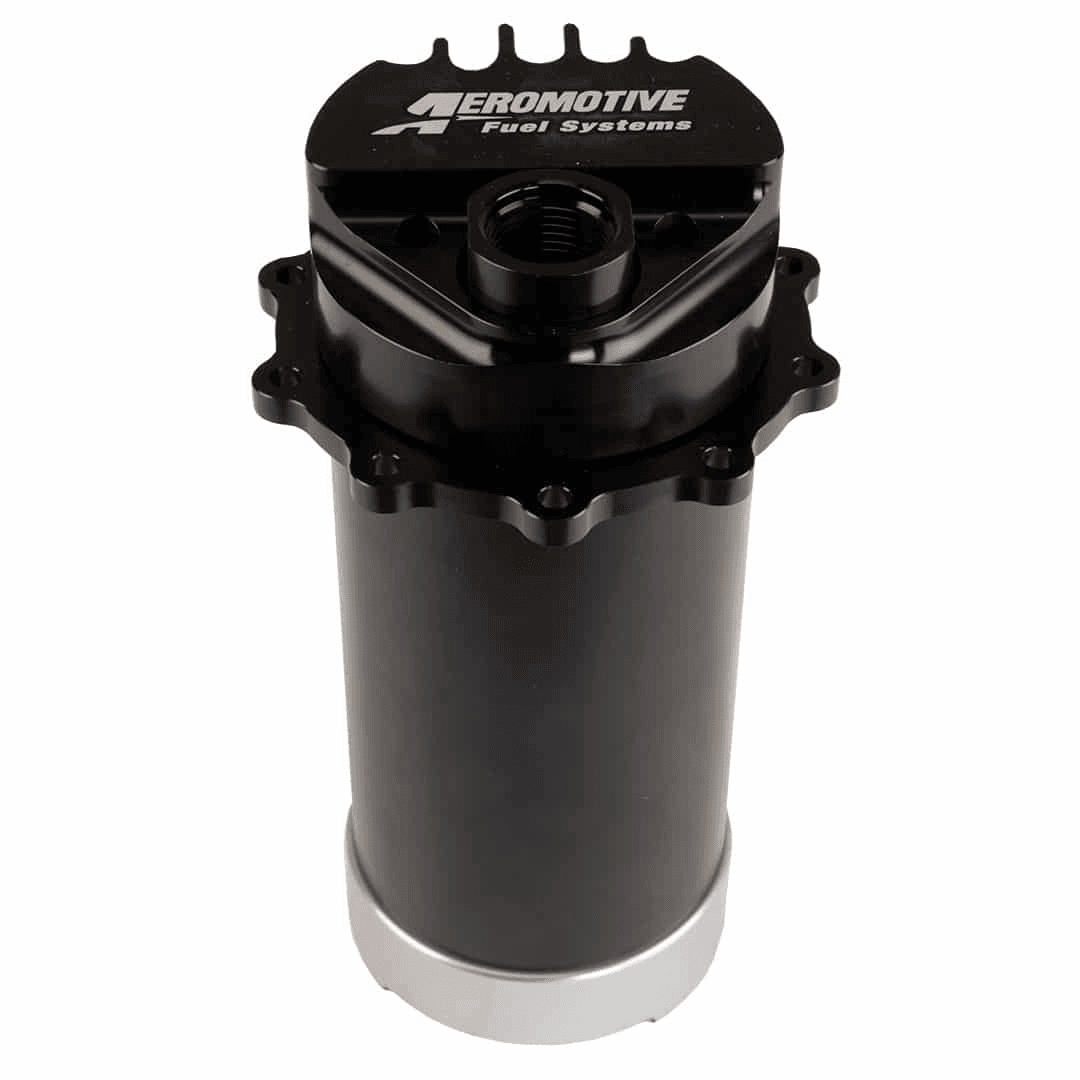

Aeromotive 5 Gpm Brushless Shallow Fuel Pump With Variable Speed Controller

Aeromotive’s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling. Note: Must use 6.7″ Tank Depth for A1000, Eliminator, 3.5GPM, and 5.0GPM Shallow Fuel Pumps
Features:
Lighter than the traditional Pro-Series pump
Reduced current draw at higher, EFI pressures
Extended service life in methanol and ethanol
Integral spur-gear pumping mechanism
90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost
Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability
Requires straight 12-VDC to 16-VDC power supply.
Not compatible with pulse modulated systems or fuel pump speed controllers. 5 GPM Fuel Pump Power Specs: CARB or EFI Power Adder Fuel Min HP Max HP Fuel Injected Forced Induction Gas 1800 2700 Carbureted Naturally Aspirated E85 1512 2380 Fuel Injected Naturally Aspirated Gas 2340 3600 Fuel Injected Forced Induction E85 1260 1890 Fuel Injected Forced Induction Gas 1620 2600 Carbureted Forced Induction E85 1134 1820 Carbureted Naturally Aspirated Gas 2160 3400 Fuel Injected Naturally Aspirated E85 1638 2520
